Portable Mainframe Removal and Installation Procedures
6
TLA7000 Series Mainframe Technical Reference Manual
Motherboard
Backplane
board
Hard disk
drive
Power
supply
DVD
drive
Fan
assembly
Front panel
and display
Interface
board

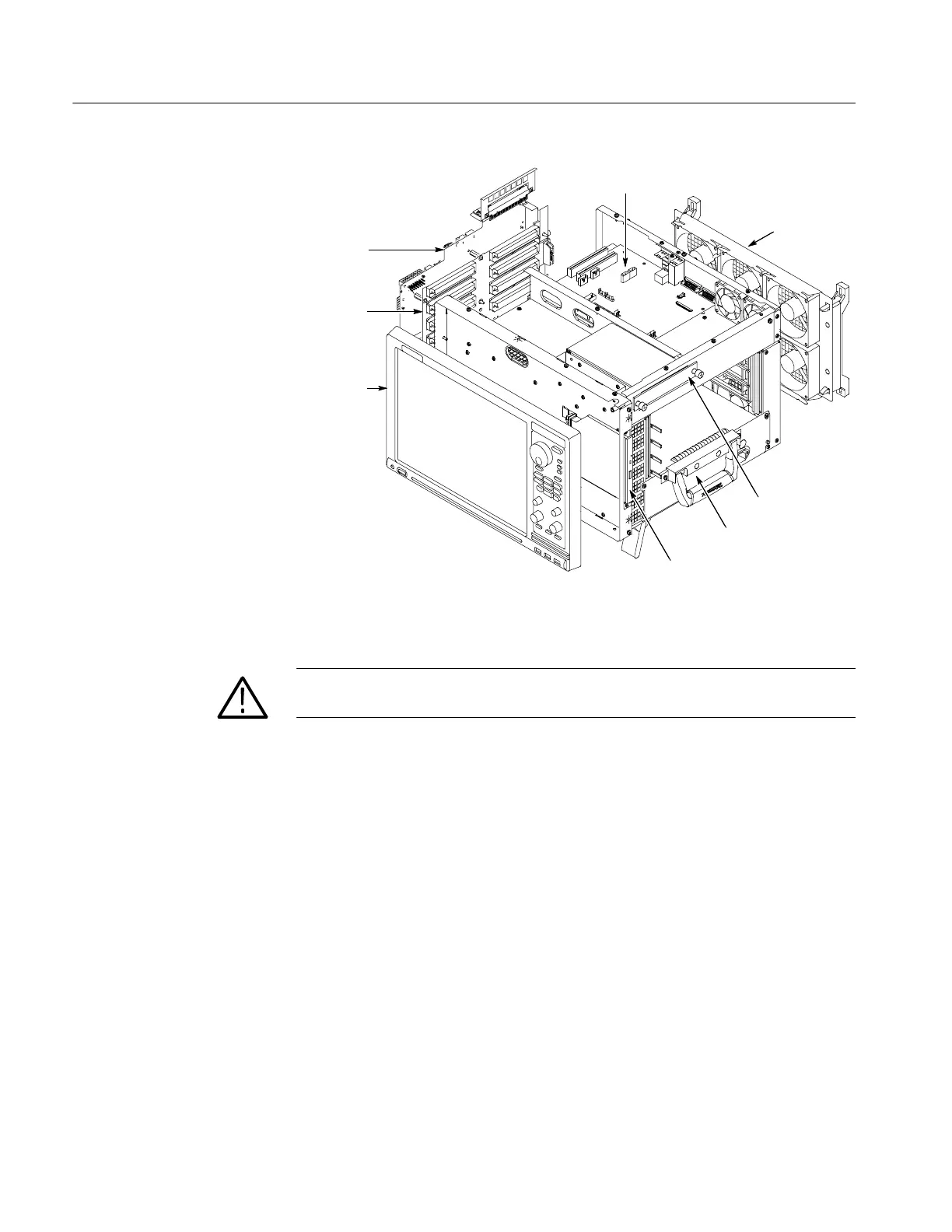

Figure 1: Locator diagram
WARNING. To avoid electric shock, always power off the instrument and
disconnect the power cord before cleaning or servicing the instrument.
Instrument Covers
Complete the following steps to remove the instrument covers:
1. Disconnect all cords, cables, and probes from the instrument.
2. Carefully remove all instrument modules (if any) from the instrument.
3. Set the instrument on the bottom feet.
4. Remove the six T-15 screws from the right cover and remove the cover.
