Benchtop Mainframe Removal and Installation Procedures
18
TLA7000 Series Mainframe Technical Reference Manual
Blower
assembly
Power supply
Fan cable
Cable cover

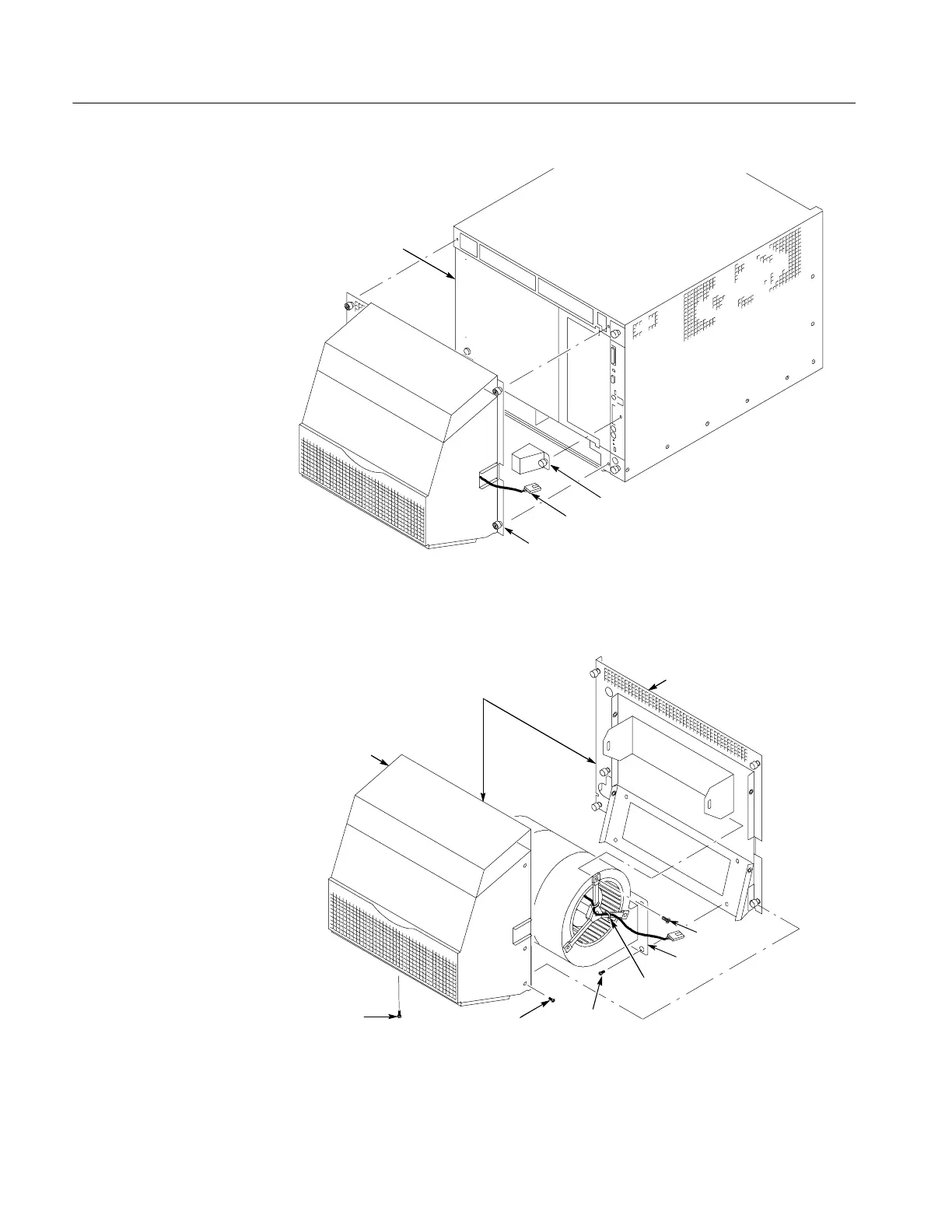

Figure 10: Removing the blower assembly
Cable tie
Blower assembly
Blower
Screws (2)
Screws (4)
Screws (6)
Screws (4)
Chassis
Shroud
Figure 11: Rem oving the blower
