Benchtop Mainframe Removal and Installation Procedures

TLA7000 Series Mainframe Technical Reference Manual

EMI DIN Shields

Perform the following steps to remove the EMI DIN shields:

1. Remove any modules surrounding the slots where you intend to remove the

Backplane EMI DIN shields. R efer to F igure 19.

2. Remove two 4-40 Torxdrive T-10 screws that secure each EMI DIN shield to

the backplane.

3. Remove EMI DIN shield from the backplane.

Install the EMI DIN shield by reversing the removal procedure.

Screws (2)

Polarization hole

Backplane EMI

DIN shield

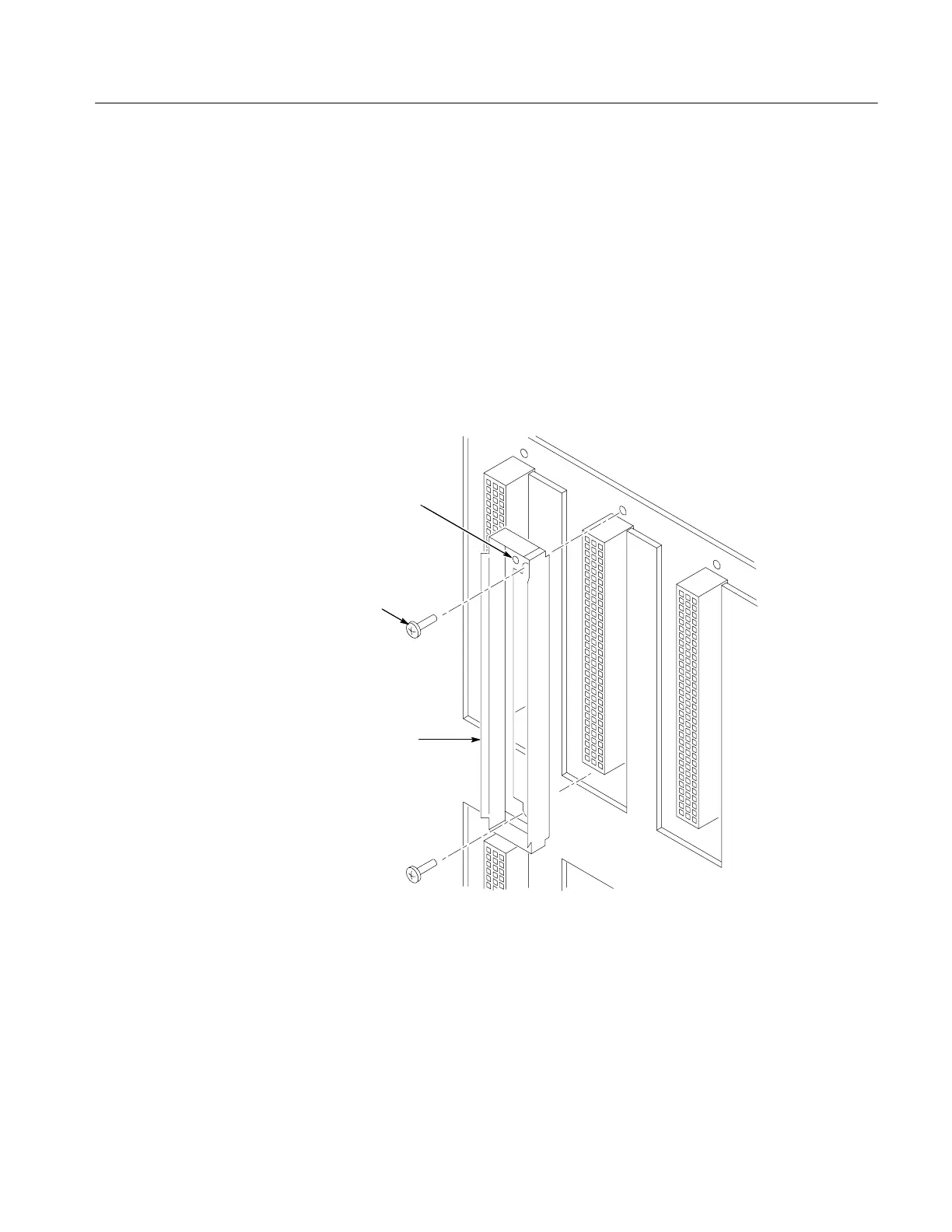

Figure 19: Removing the backplane EMI DIN shields
