Reference
Delta (Δ)value
s vary with the following types of cursors:
Time cursors display Δt, 1/ ΔtandΔV(orΔI, ΔVV, and so on)
Amplitude cursors, and Magnitude cursors (Math FFT source) display ΔV, ΔI,
ΔVV, and so on
Frequency cursors (Math FFT source) display 1/ΔHz and ΔdB
NOTE. The oscilloscope must display a waveform for the cursors and cursor
readouts t
o appear.
NOTE. The oscilloscope displays the time and amplitude values for each
waveform when you use Time cursors.
Key Po ints
Cursor Movement. Use the multipurpose knob to move Cursor 1 or Cursor 2.
You can move the cursors only while the Cursor Menu is displayed. The active
cursor is represented by a solid line.

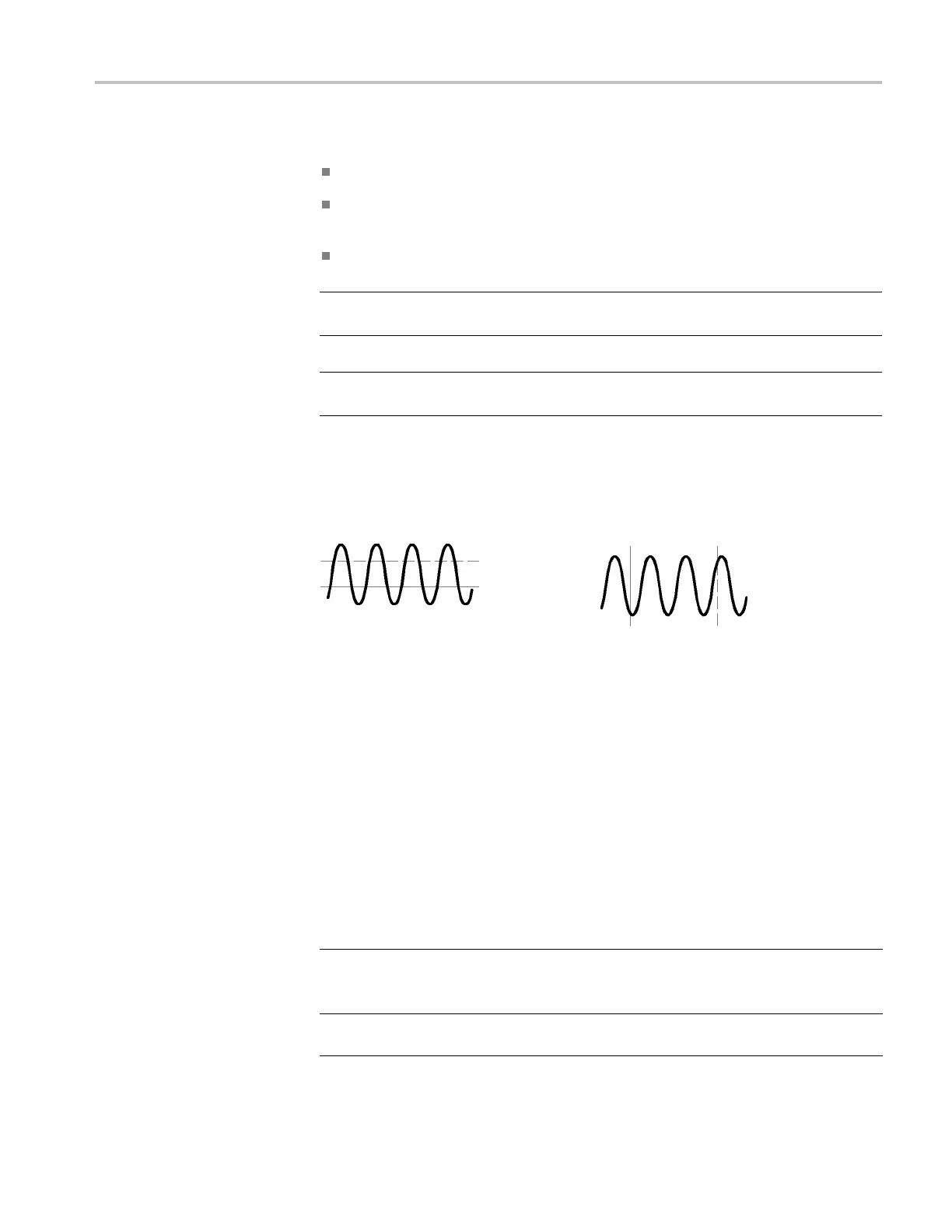

Amplitude cursors Time cursors
Default Setup
Push the Default Setup button to recall most of the factory option and control
set
tings, but not all. Appendix E lists the default settings that will be recalled.
Display
Pu
sh the Display button to choose how waveforms are presented and to change
the appearance of the entire display.
Options Settings Comments
Ty pe Ve ctors, Dots
Vectors fill the space between adjacent
sample points in the display
Dots display only the sample points
Persist
OFF, 1 sec, 2 sec,
5sec,Infinite
Sets the length of time each displayed
sample point remains displayed
TPS2000B Series Digital Oscilloscope User Manual 101
To Next Page
