Application Examples
Taking Simple
Measurements
You need to see a signal in a circuit, but you do not know the amplitude or
frequency of the signal. You want to quickly display the signal and measure the
frequency, p
eriod, and p eak-to-peak amplitude.
Using Autoset
To quickly display a signal, follow these steps:
1. Push the Channel 1 button.
2. Push P
robe ► Voltage ►Attenuation ► 10X.

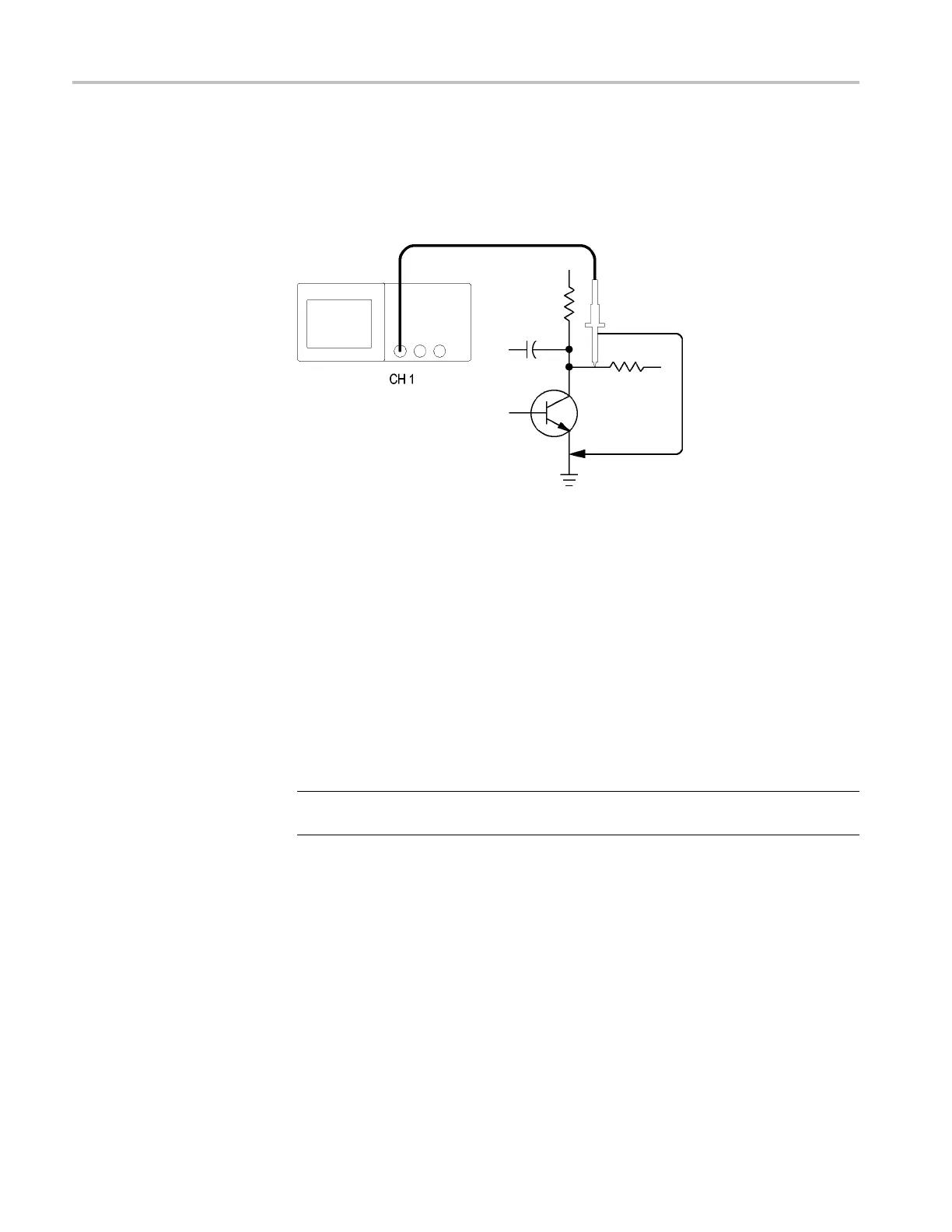

3. Connect the channel 1 probe tip to the signal. Connect the reference lead to
the ci
rcuit reference point.
4. Push the AutoSet button.
The oscilloscope sets the vertical, horizontal, and trigger controls automatically.
If you want to optimize the display of the waveform, you can manually adjust
the
se controls.
NOTE. The oscilloscope displays relevant automatic measurements in the
waveform area of the screen based on the signal ty pe that is detected.
For oscilloscope-specific descriptions, refer to the Reference chapter. (See
page 97, Autoset.)
38 TPS2000B Series Digital Oscilloscope User Manual
