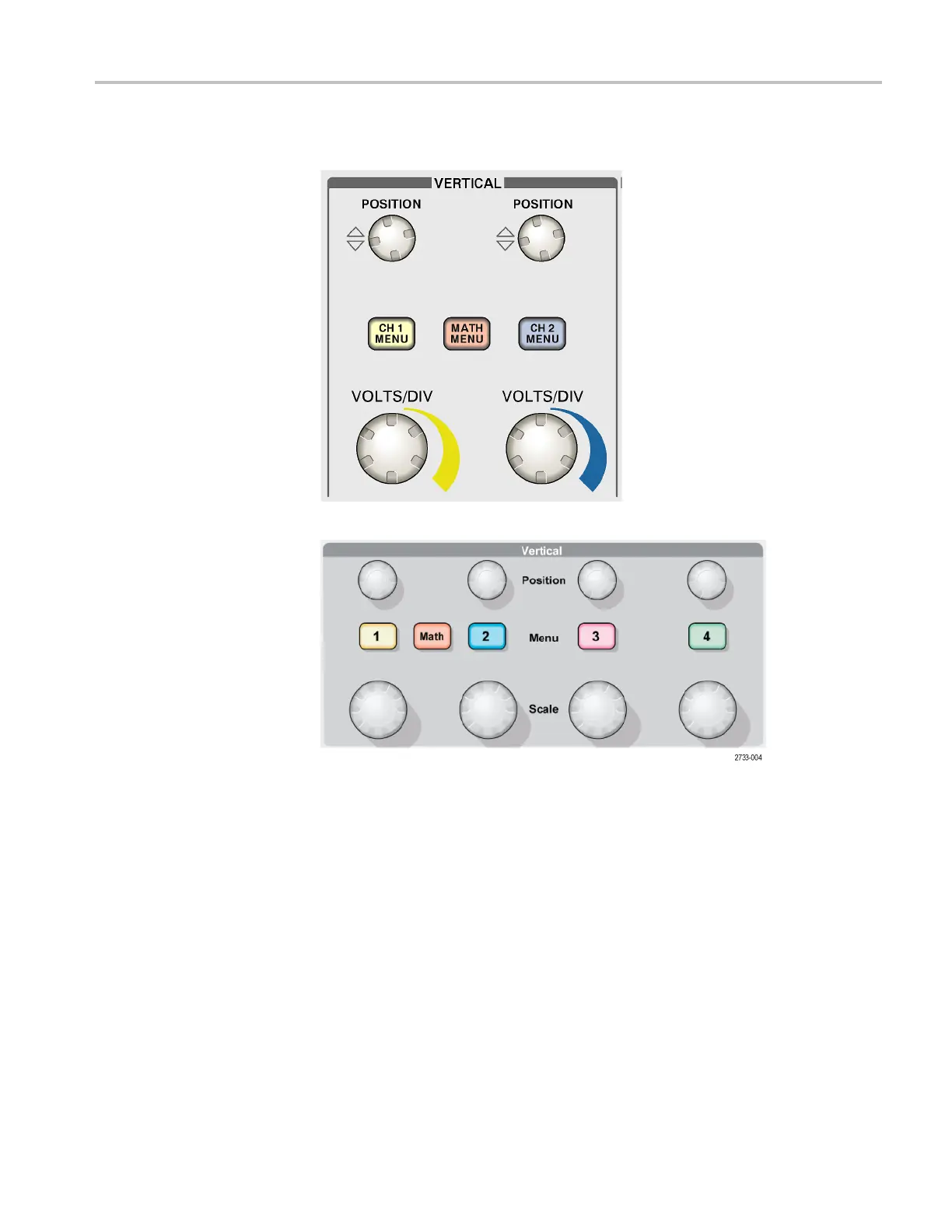

Operating Basics
Vertical Cont
rols
2-channe
lmodel
4-channel model
Position (1, 2, 3 & 4). Positions a waveform vertically.
1, 2, 3 & 4. Displays the Vertical menu selections and toggles the display of the
channel waveform on and off.
Sca
le(1,2,3&4). Selects vertical scale factors.
Math. Displays waveform math operations menu and toggles the display of the
math waveform on and off.
TPS2000B Series Digital Oscilloscope User Manual 21
