Tektronix WFM6120 User Manual

Using Alarms
To Enable Alarms
The channels for which you enable alarms
trigger your previously defined alarm
responses. (See page 126, To Set Allowed
Alarm R esponses.)

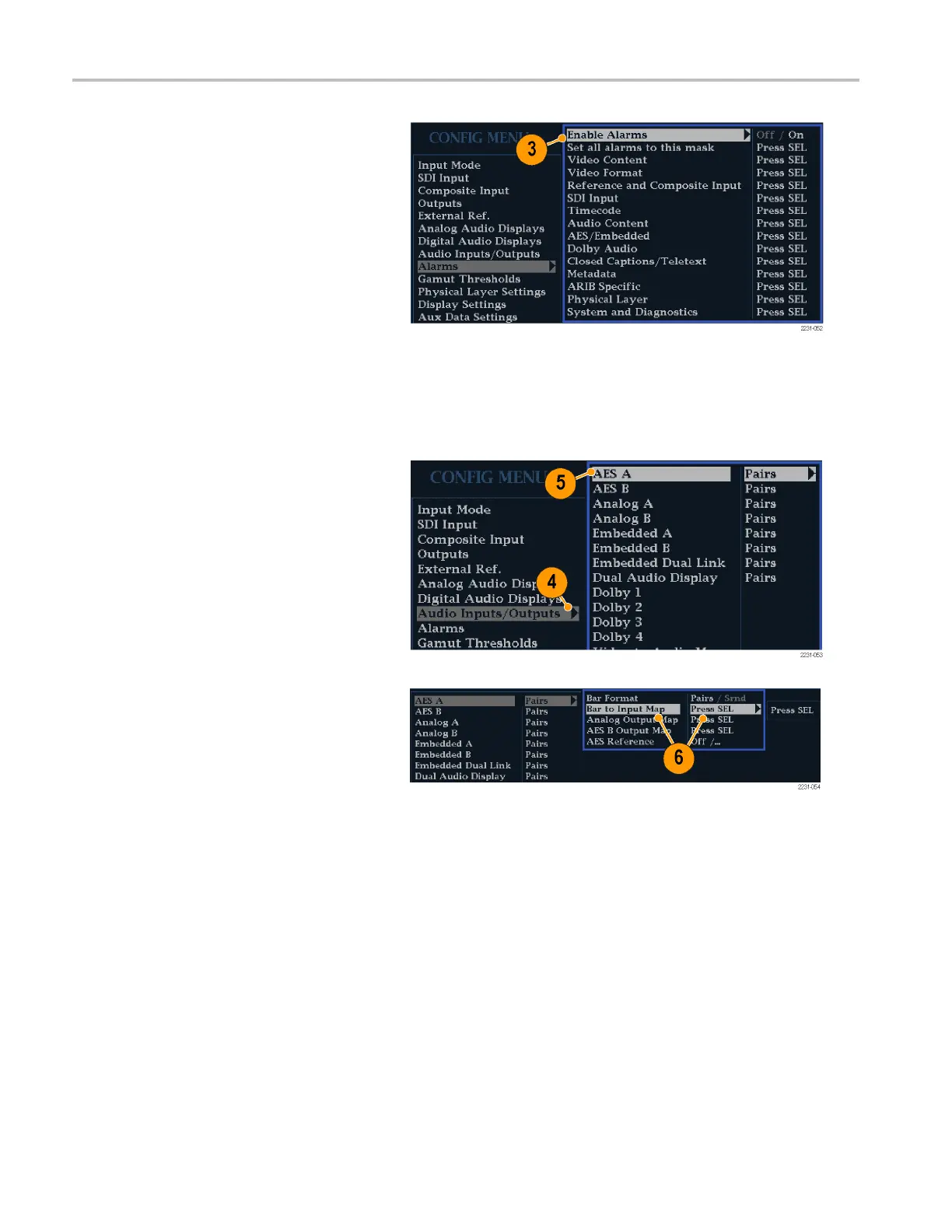

1. Press the CONFIG button to display the
Configuration menu.
2. Use the arrow keys and SEL button to
make selections in the steps that follow.
3. To globally enable all alarms, select
Enable Alarms and toggle i t to On.This
turns on all alarms that are individually
enabled and provides a quick way to
switch them on and off w ithout changing
their individual settings (see step 4 ).
4. Additionally, for A udio inputs, you must
enable alarms individually by channels.
To start, select Audio Inputs/Ou tp uts in
the Configuration menu.
5. Select each input shown in the box to
individually enable its alarms. AES A is
shown selected.
6. For each of the AES, Analog, and
Embedded inputs, select Bar to Input
Map and press the SEL button to display
the Bar to Input map menu.
128 Waveform Monitors Quick Start User Manual
