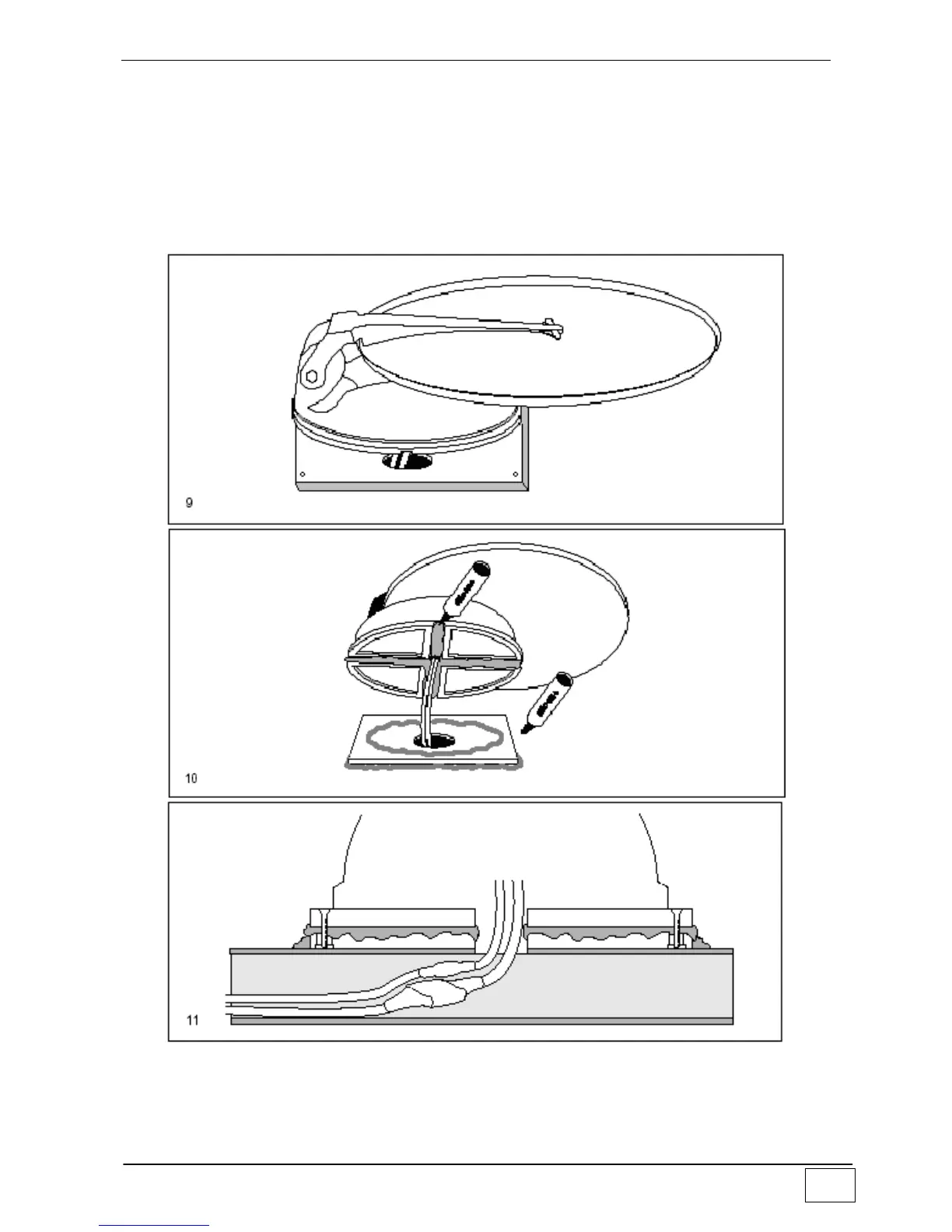

11) Install the OUTSIDE UNIT on the plate, bearing in mind that:
a) The proper position must be as in (Fig. 9)
b) Coat both the base plate and the driving unit bottom (Fig. 10) with a thick layer of
silicone to prevent any water infiltration. Screw in the four supplied nuts at the screws
and tighten as required (Fig. 11).
