Installation with lateral cable output

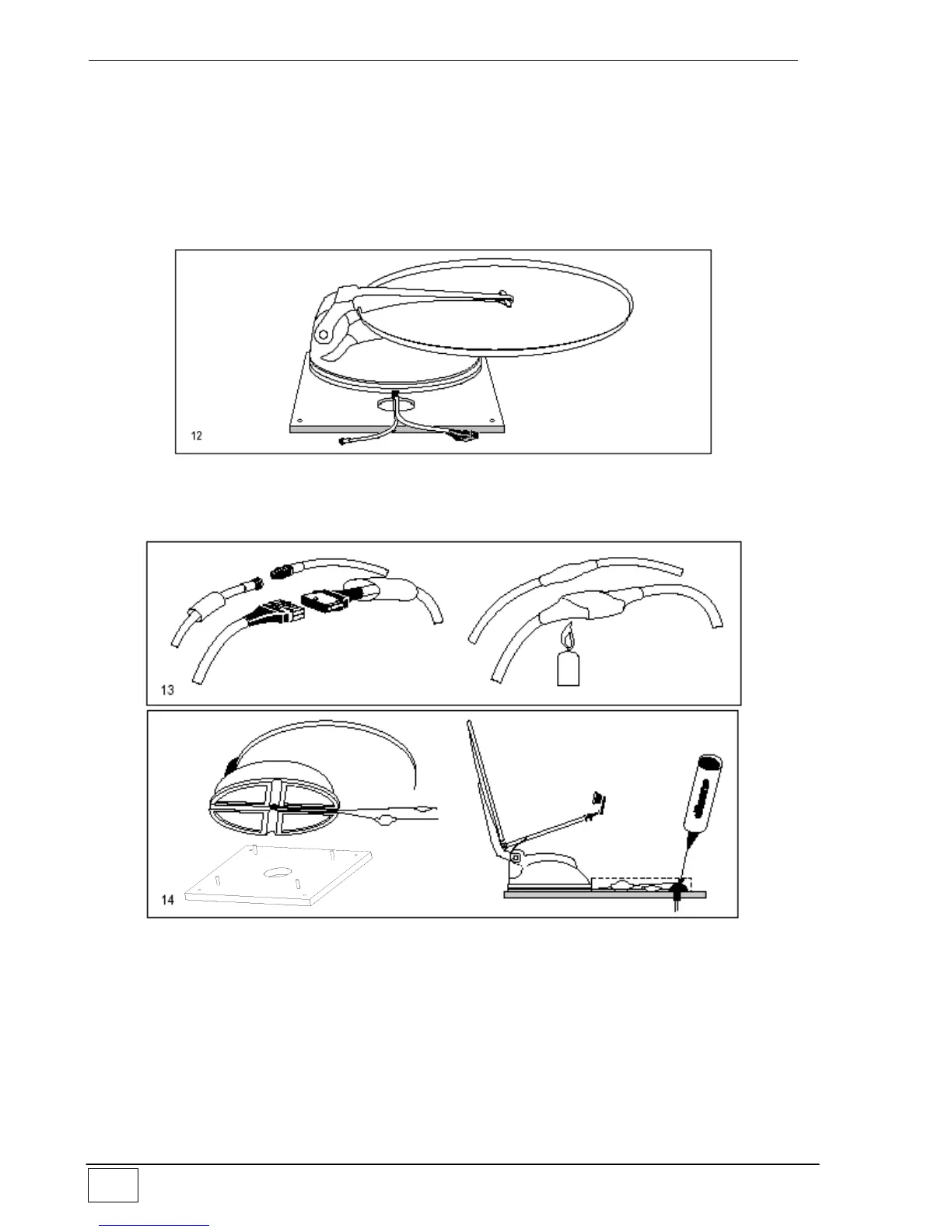

12) Fasten the OUTSIDE UNIT to the base plate. Lead both cables out of the 4 grooves
and respect the positions shown on. Figure 12.
CAUTION: during this operation, do not pull either cable forcibly, as they could come out.
13) Connect both cables coming from the centre of the OUTSIDE UNIT to the extensions.
Waterproof the connectors using both pieces of heat-shrinking pipe Fig. 13.
14) Fit the cables into a raceway up to the point where the cables enter the vehicle Fig.
14.
15) Carefully seal the hole where the cables pass into the vehicle to prevent water from
coming in. Fig. 14.
