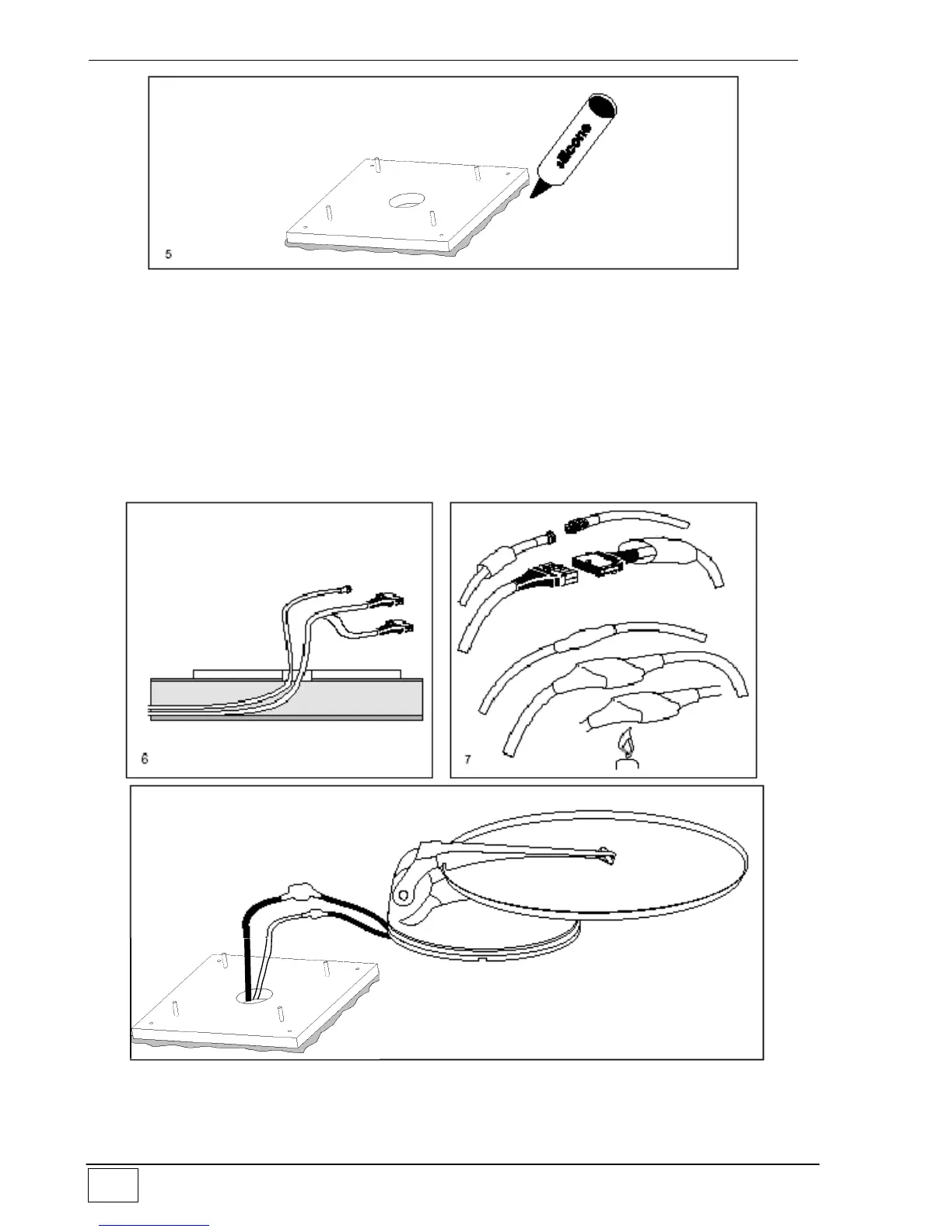

9) Apply a layer of silicone all around the BASE PLATE in order to make it completely
(Fig. 5)
Installation with cables led through the middle of the base
10) Connect the Grey and White cables coming from inside the vehicle (Fig. 6) to both
cables of the outside unit, making them watertight using two pieces of
THERMORETRACTILE TUBE (Fig. 7).
WARNING While performing this operation, do not pull forcefully on the cables coming
from the middle of the outside unit, in order not to risk pulling them out.
8
