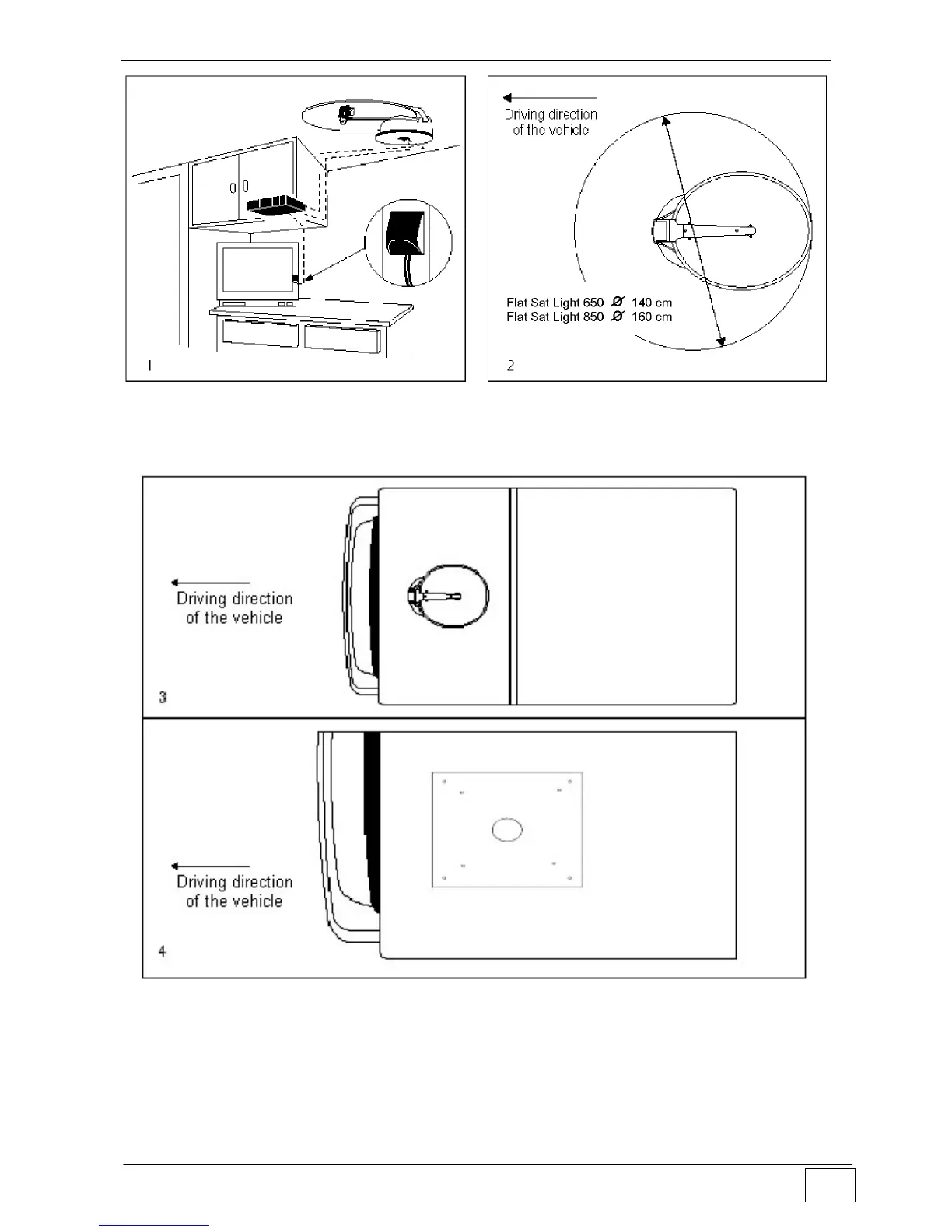

6) Remembering that the OUTSIDE UNIT must be fastened as shown on Figure 3,
remove the BASE PLATE from the outside unit, unscrewing all 4 nuts. Position the
base plate as Fig.4 with the short side towards the driving direction of the vehicle (Fig.
4).
7) Clean the lower part of the BASE PLATE carefully, applying a layer of glue on the
whole surface (e.g. SIKAFLEX).
8) Fasten the Base Plate to the roof (short side towards the driving direction of the
vehicle), now fasten the external powered unit to the four stud bolts of the plate, using
the four nuts supplied with the equipment.
