Assembly instructions
Flat Sat Light Vers. 001
14

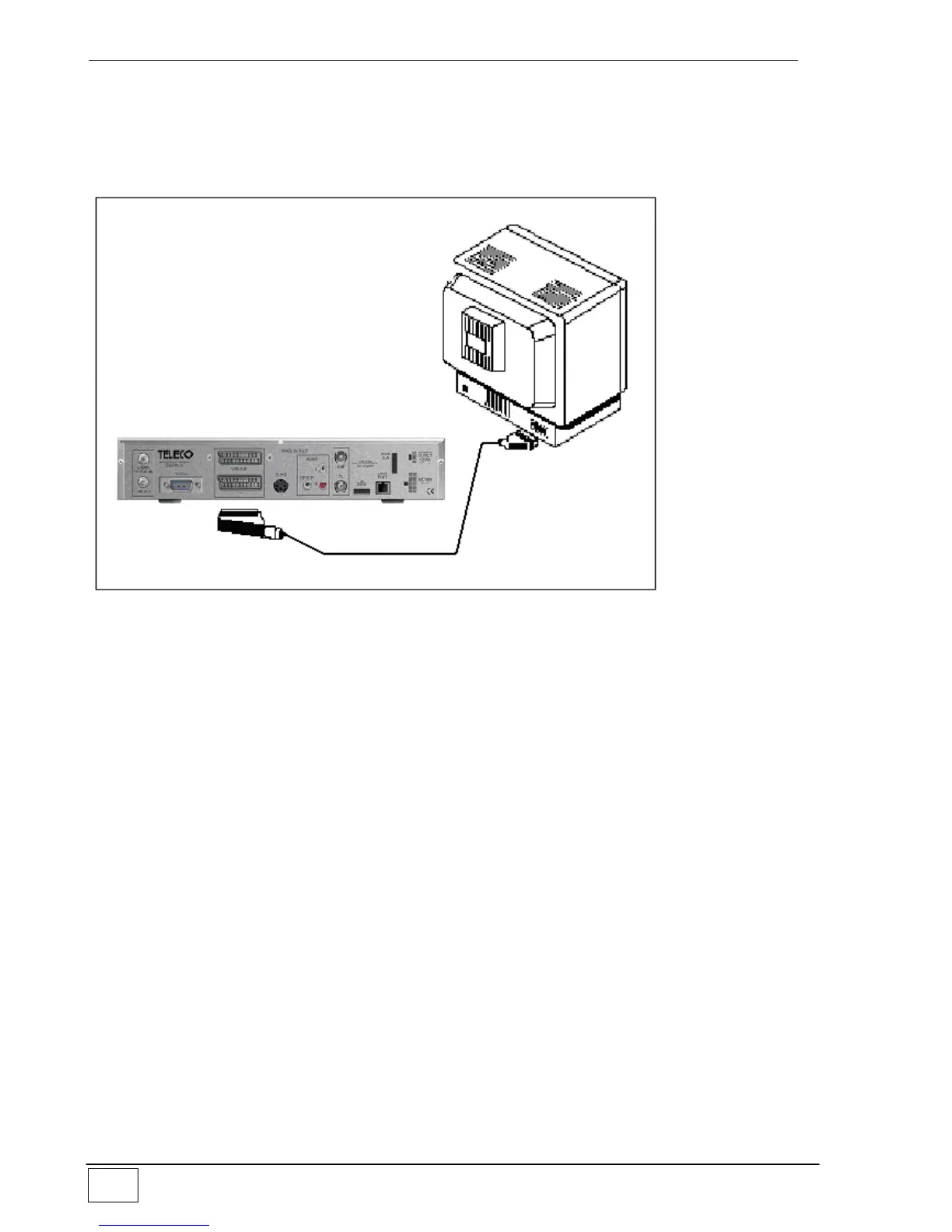

20) Insert one end of the SCART cable in the TV connector of the Control Unit and
connect the other end to the TV set (Fig. 16)
21) Inside the Control Unit are:
a) Control ELECTRONICS of the outdoor unit motors.
b) DVB Digital Receiver.
16
Digital receiver
–
to television
connection
