DEFAULT CONFIGURATION 3
General information for DEFAULT CONFIGURATION 3:
• Zones - 6 (2 common, 2 to PART А, 2 to PART В)
• 2 partitions - А and В
• 1 keyboard (suitable models LED62, LCD63SE, LCD64)
Short programming table for DEFAULT CONFIGURATION 3:
Zone Type Attributes Part Detectors Room Control
1 Entry/Exit
Bypass
Disarm Enable
A and В MC1 Central Entrance A+B KBD1
2 Follow
Bypass, Stay
Disarm Enable
A and В
PIR1, PIR2, PIR8,
PIR 9
Corridors А and В KBD1
3 Instant
Bypass, Stay
Disarm Enable
А PIR5, PIR6, PIR7
Ofces 3 and 4,
Book-keeping
KBD1
4 Instant
Bypass, Stay
Disarm Enable
А PIR3, PIR4 Ofces 1 and 2 KBD1
5 Instant
Bypass,
Disarm Enable
B PIR10, PIR11, PIR14
Ofces 7 and 8,
Book-keeping
KBD1
6 Instant
Bypass,
Disarm Enable
B PIR12, PIR13 Ofces 5 and 6 KBD1
Corridor A
Corridor B
Ofce1
Ofce 2
Ofce 3
Ofce 4
Book-
Keeping
Ofce 6
Ofce 8
Ofce 5
Ofce 7
Book-
Keeping
Central
Entrance
A+B

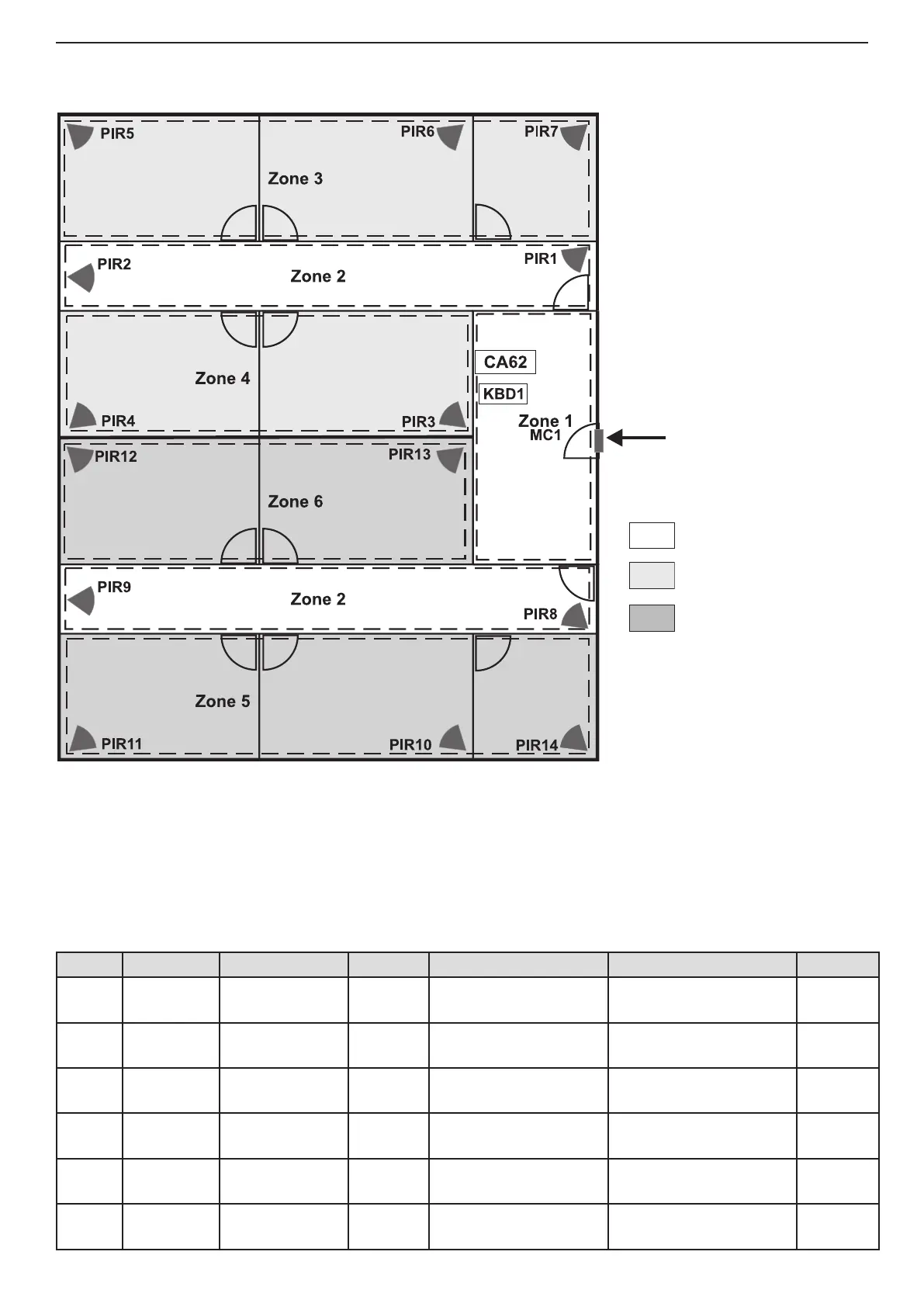

Partitions in the system:
- PARTS А and В
- PART А
- PART В
Default codes:
• User 1 - 1111
• Manager - 0000
• Engineer - 7777
ENTRANCE PARTS A+B
PART A
PART B
