User manual
“DTR - 7142
”
44

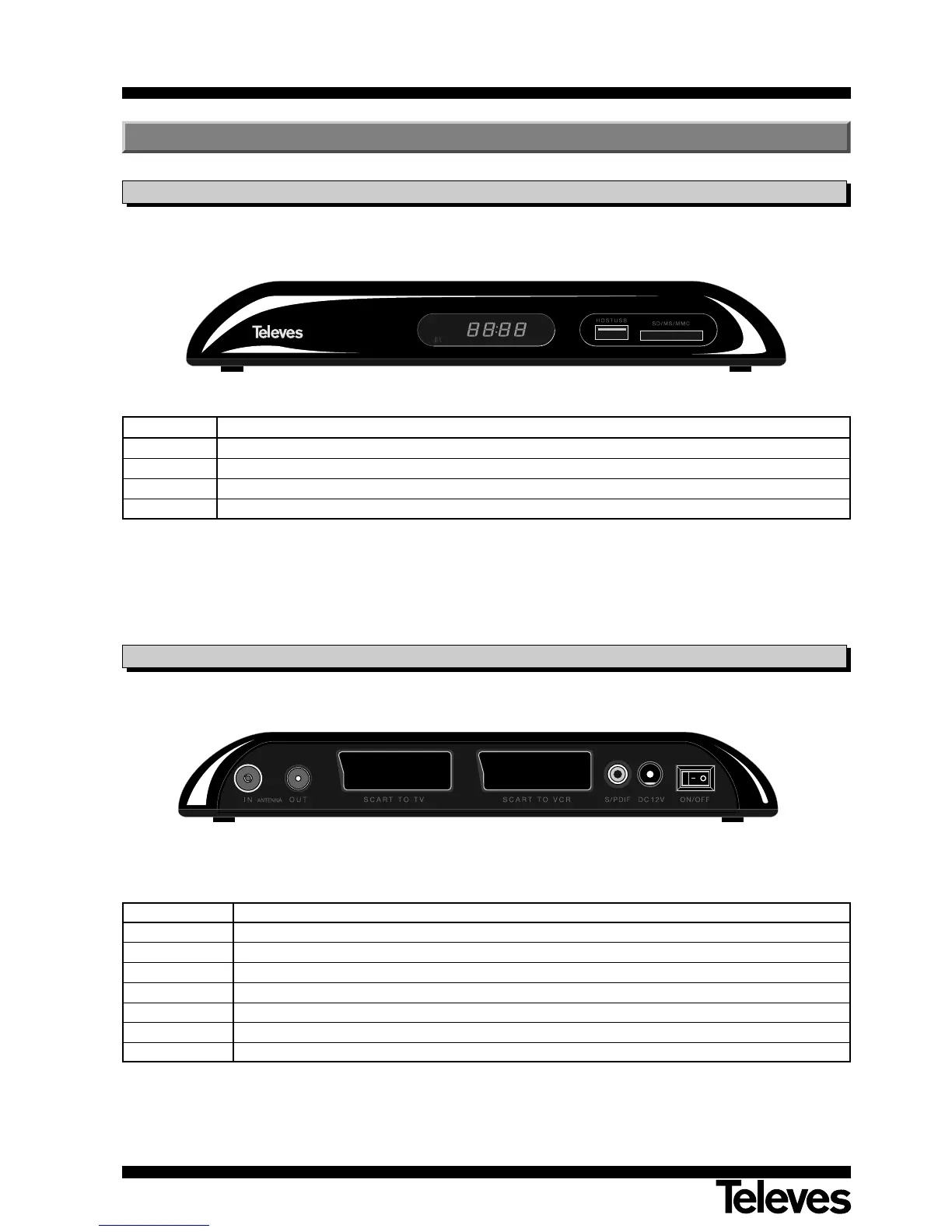

3.- Description of connections
Front panel
Rear panel
Name Function
ANT IN
Input for terrestrial aerial signal (feed + 5V/100mA menu selection)
ANT OUT RF outlet for connecting TV or VCR.
SCART TO TV To connect a TV set using a SCART.
SCART TO VCR To connect a VCR using a SCART.
S/PDIF Optical output of digital audio.
DC 12V Jack for power adaptor.
I/O On/off switch
Name Function
IR IR sensor
Display In the normal mode, it shows channel N°, in the STANDBY mode it shows the time of day
HOST USB Connection to connect a memory stick, an MP3 player or an external disk
SD/MS/MMC Memory Card-connection
