Televes 7142 - Connector Description; SCART TV Out Pinout

User manual “DTR - 7142 ”
74
PIN TV
1 Audio outlet (R)
2N/A
3 Audio outlet (L)
4 Grounding audio
5 Grounding blue
6N/A
7 Outlet blue
8 Switch voltage
9 Grounding green
10 N/A
11 Outlet green
12 N/A
13 Grounding red
14 “Fast Blanking” grounding
15 Outlet red
16 “Fast Blanking” outlet
17 Grounding Video
18 Grounding Video
19 Outlet Video
20 N/A
21 Grounding
20
18
16
14
12
10
8
6
4
2
1
3
5
7
9
1
13
15
17
19
21

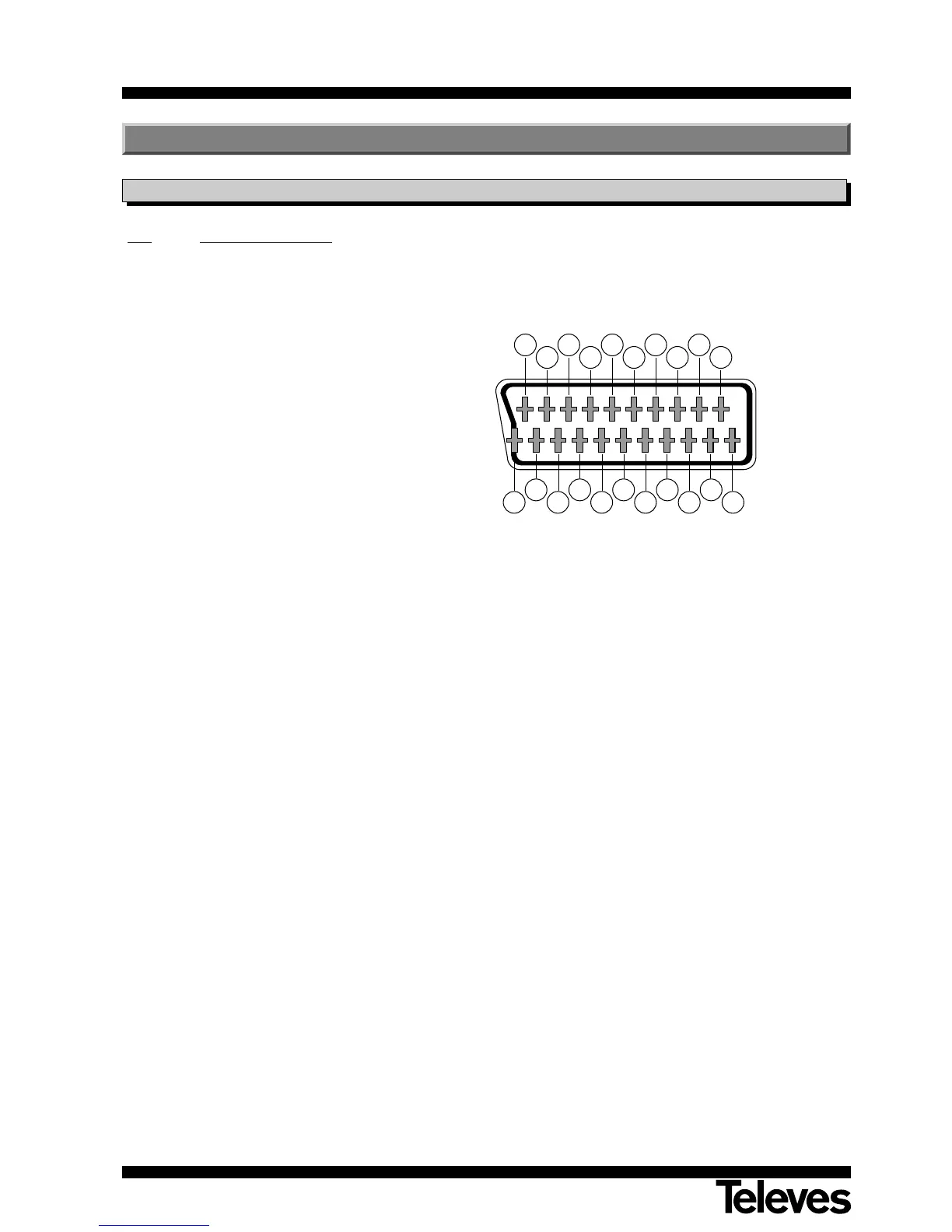

Connector Description
SCART TV out
