Pin
Signals
I/O
Function
Type
48
GPS_LNA_EN
0
Enables the external regulator for GPS LNA
1.8V
Table 16: Control Signals
6.5.1. WAKE_N
WAKE_N is driven, by default, by the module according the PCI Express Mini Card
Electromechanical Specification Revision 2.1.

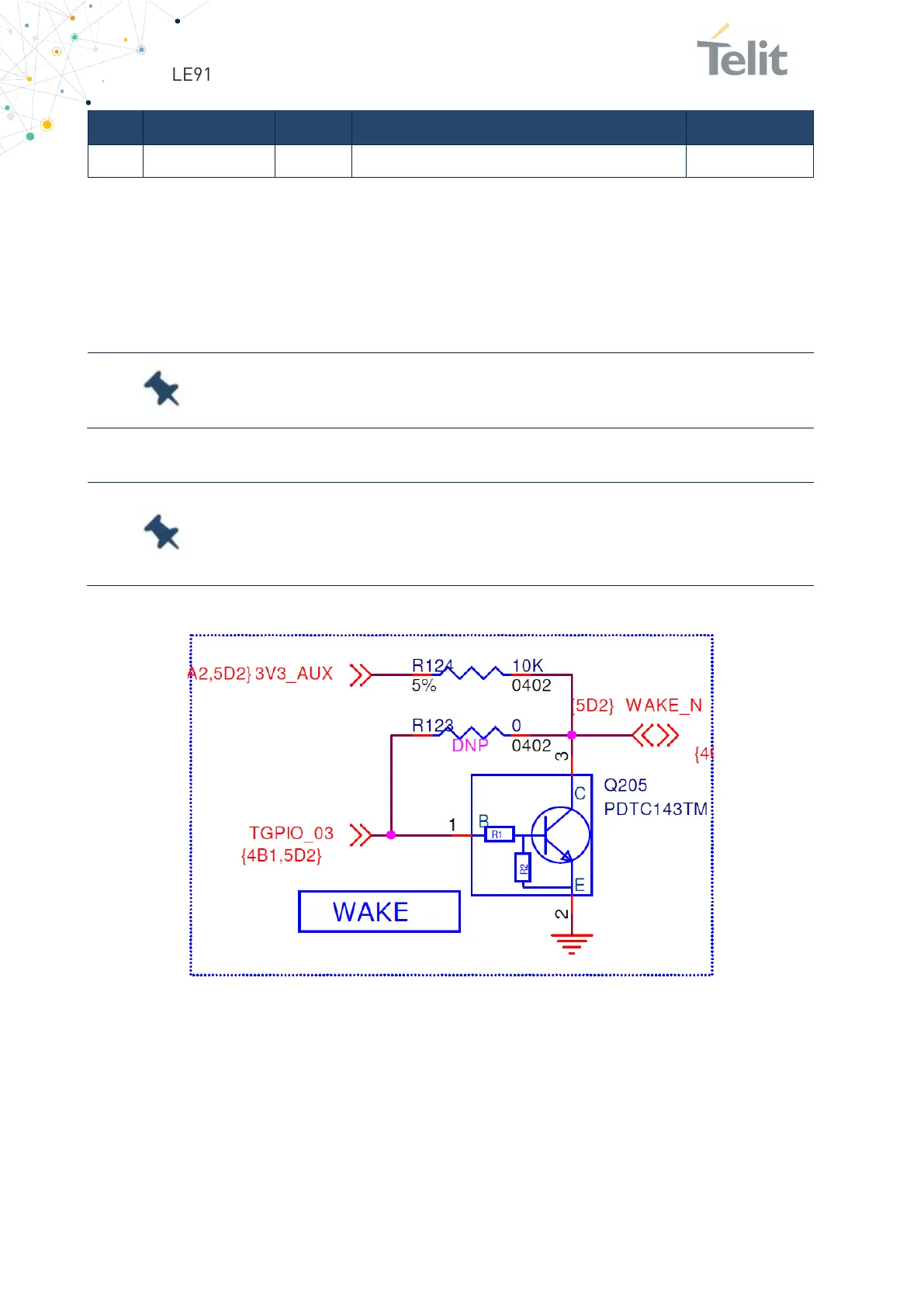

The below picture shows the internal WAKE_N driver:
Figure 10: Internal WAKE_N Driver
The WAKE_N output may be connected to an edge sensitive application input (for example
a microcontroller input with IRQ enabled). No external pull-up is needed, since it is
internally implemented.
Note
: WAKE_N is not supported in host using PCI Express Mini Card
Electromechanical Specification Revision 1.1 and below.
Note
: WAKE_N signal is not active by default. If desired it can be
configured remapping an event under monitoring through
at#evmoni. For details refer to the AT command user guide.
