LE910Cx mPCIe Hardware Design Guide
1VV0301510 Rev. 13 Page 53 of 73 2021-07-07
Not Subject to NDA
8.1.1.2. Bottom View

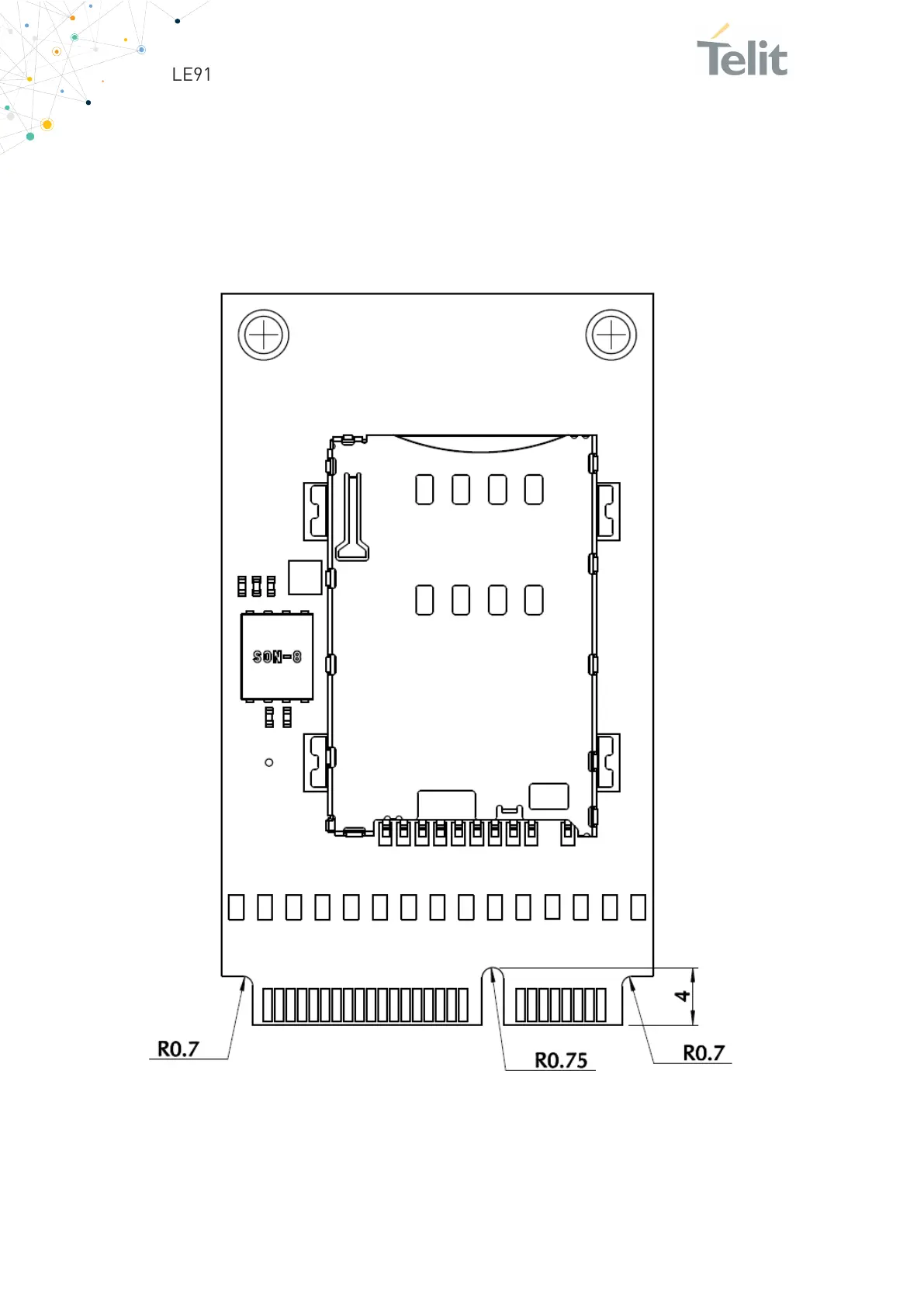

The figure below shows mechanical bottom view of the LE910Cx-mPCIe as seen from the
bottom side. The figure shows the SIM holder it is not mounted by default. (with SIM
holder)
Figure 16: LE910Cx-mPCIe (with SIM Holder) Mechanical Bottom View
