LE910Cx mPCIe Hardware Design Guide
1VV0301510 Rev. 13 Page 47 of 73 2021-07-07
7. RF SECTION
Band Variants
Please refer to the table provided in Section Product Variants and Frequency Bands
TX and RX Characteristics
Please refer to the Module’s Hardware User guide for the details
Antenna Requirements
7.3.1. Antenna Connectors
The LE910Cx Mini PCIe adapter is equipped with a set of 50 Ω RF U.FL. connectors from
Hirose U.FL-R-SMT-1(10).
The available connectors are:
• RX Diversity Antenna (DIV)
• Main RF antenna (ANT)
• GNSS Antenna (GPS)

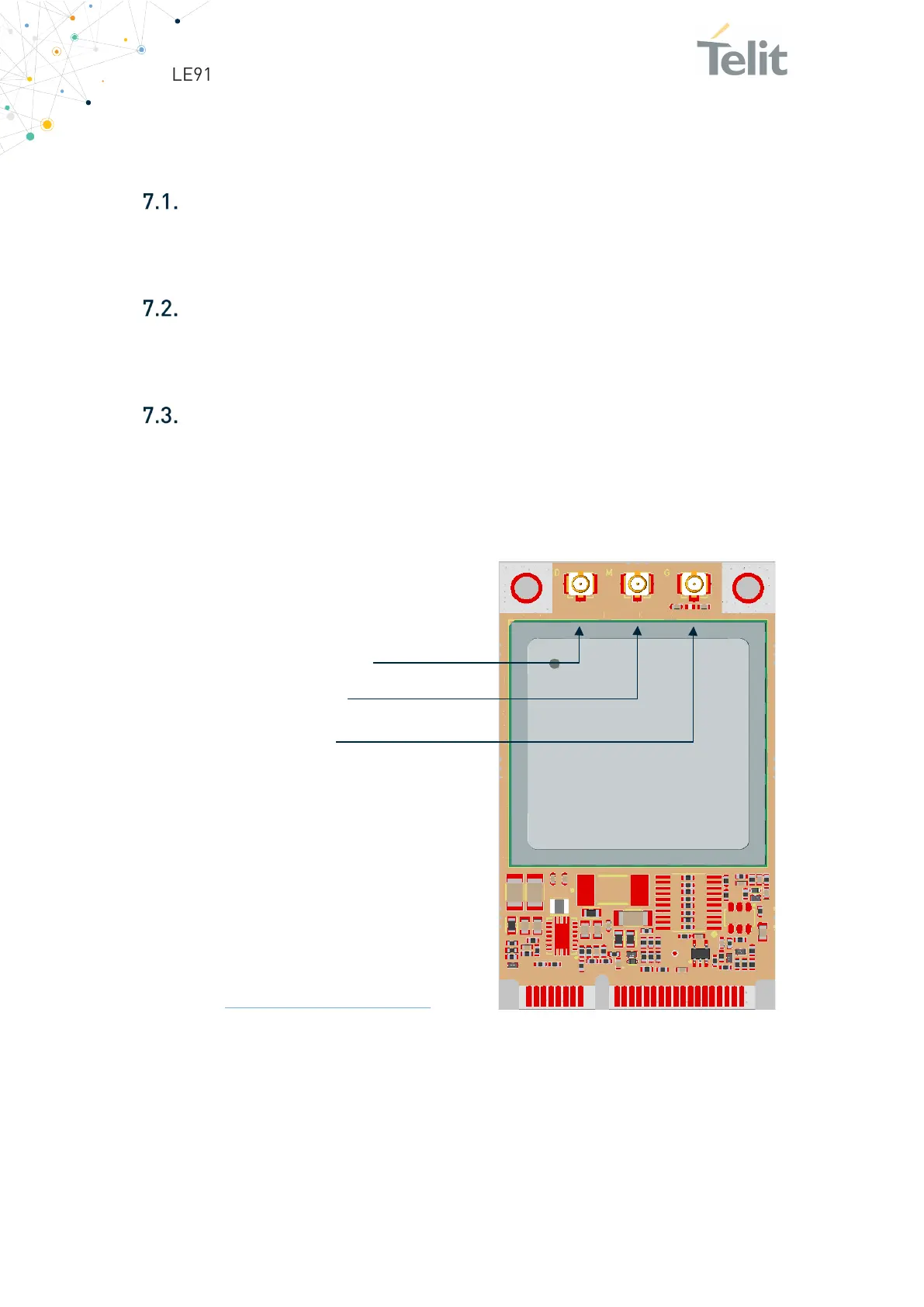

See the picture on the right for their position on
the interface.
The presence of all the connectors depends on
the product characteristics and the supported
functionalities.
For more information about mating connectors,
visit the website
https://www.hirose.com/
The antenna connection is one of the most important aspect in the full product design as
it strongly affects the product overall performances, so please read carefully and follow
the requirements and the guidelines for a proper design.
The LE910Cx-mPCIe adapter is provided with three RF connectors.
