ML865G1 HW Design Guide

1VV0301632 Rev. 4 Page 41 of 86 2020-09-23

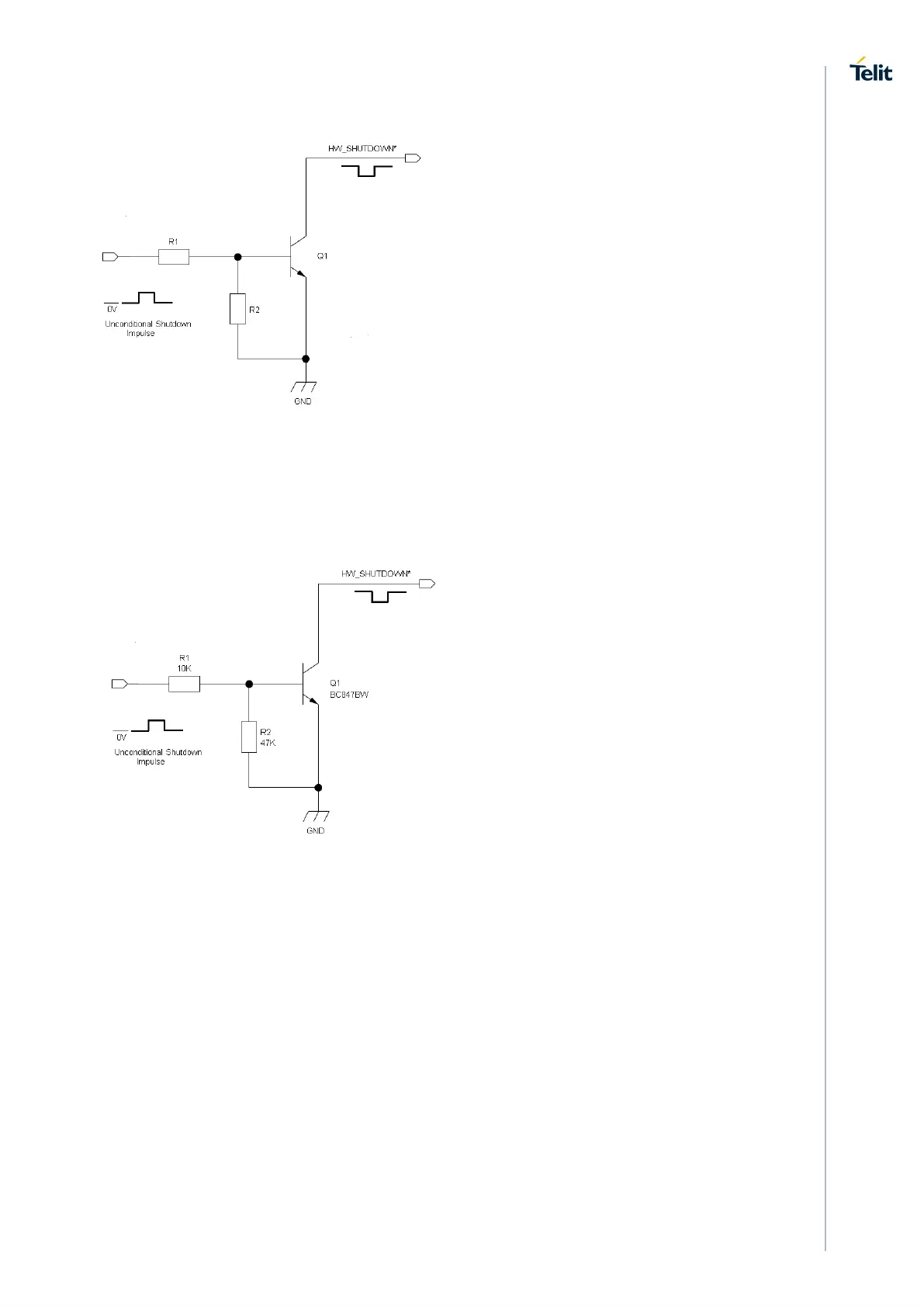

For example: Let us assume you need to drive the HW_SHUTDOWN* pad with a totem

pole output of a +3/5 V microcontroller:
