ML865G1 HW Design Guide
1VV0301632 Rev. 4 Page 42 of 86 2020-09-23

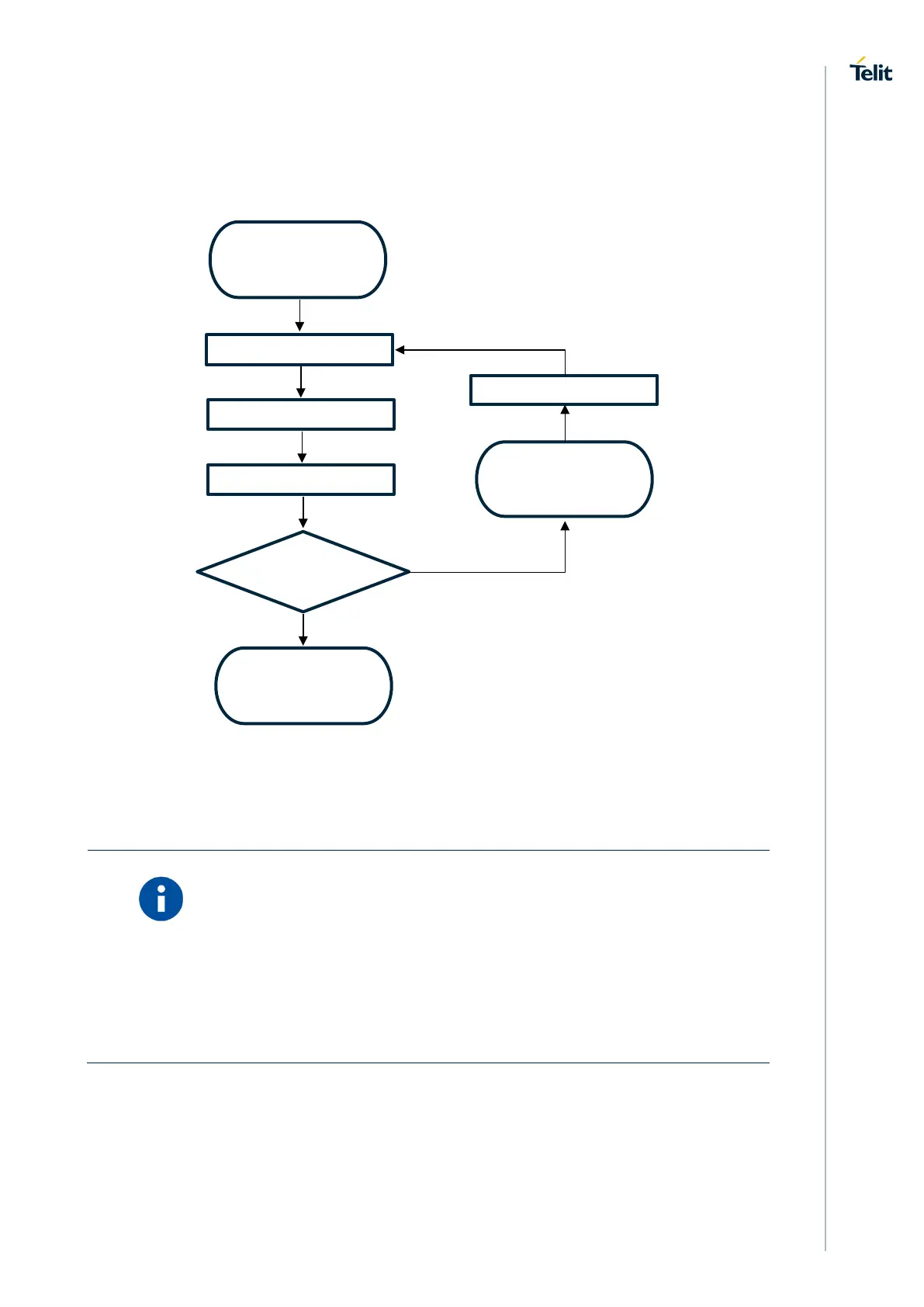

In the following flow chart is detailed the proper Unconditional Shutdown procedure:
NOTE:
In order to avoid a back powering effect it is recommended to avoid
having any HIGH logic level signal applied to the digital pins of the
ML865G1 when the module is powered off or during an ON-OFF
transition.
“HW SHUTDOWN
Unconditional”
START
HW_SHUTDOWN* = LOW
Delay = 200ms
PWRMON = ON
Disconnect
VBATT
Y
N
“HW SHUTDOWN
Unconditional”
END
HW_SHUTDOWN* = HIGH
Delay = 1s
