NET-PATH Installation and Operation Guide
Page 5-5
Note The jumpers in the following table appear as they are oriented on the
board, as seen from the front of the NET-PATH. Shaded areas represent jumper
connections. DO NOT change these jumpers unless directed to do so by
Customer Service. Changing these jumpers may result in operation failures.

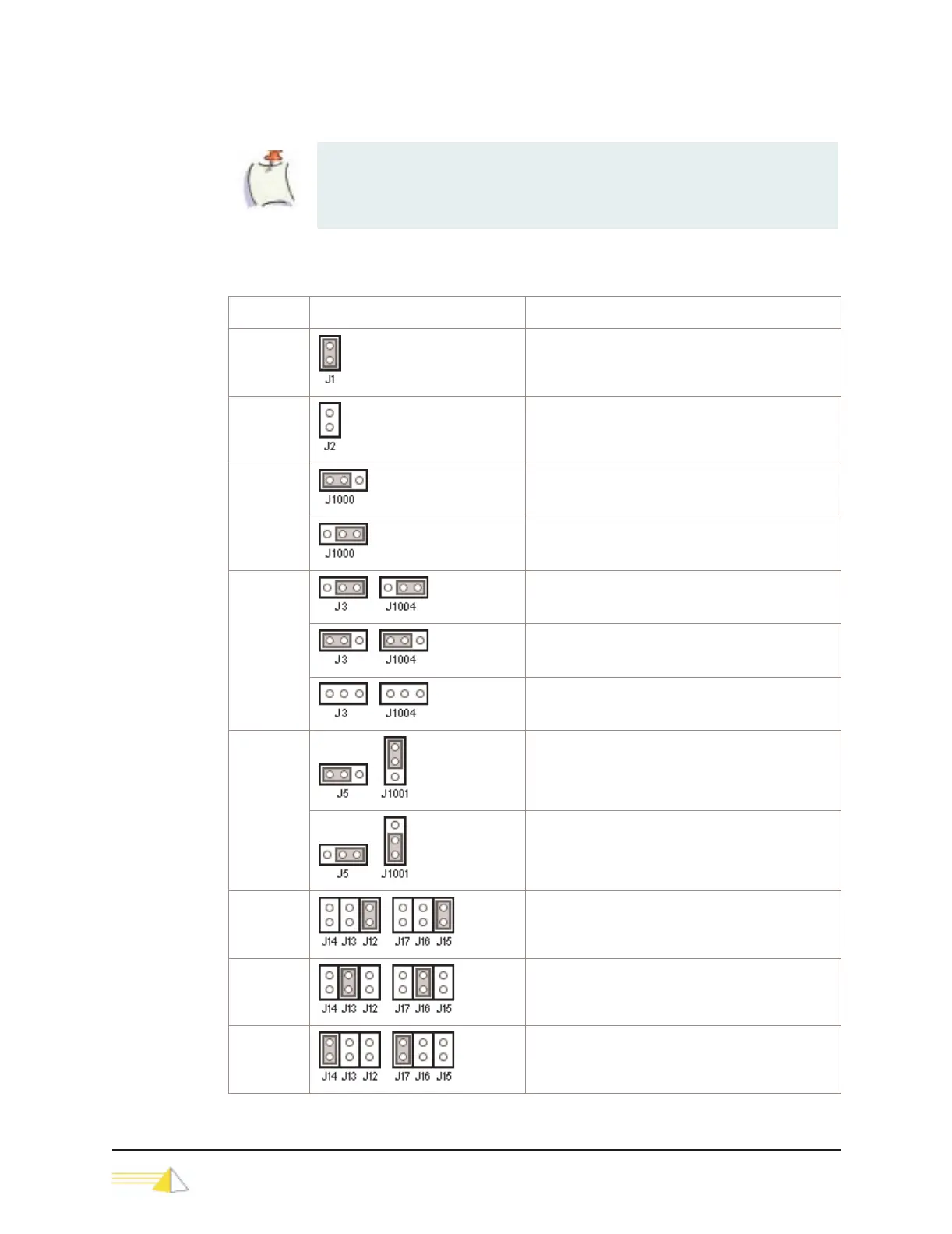

Table 5-1:NET-PATH Jumper Settings
Jumper Setting Description
J1 RAM Chip Select
J2 RAM Chip Select
J1000
External Flash Sizes - 16 MB
External Flash Sizes - 32 MB (default)
J3, J1004
Flash Write Protect - On
Flash Write Protect - Software
Flash Write Protect - Off
J5, J1001
Flash Type - Internal
Flash Type - External
J12, J15
RAM Size - 64 MB or 128 MB
J13, J16
RAM Size - 32 MB
J14, J17
RAM Size - 16 MB
To Next Page
