Serviceable Components
Page 5-6

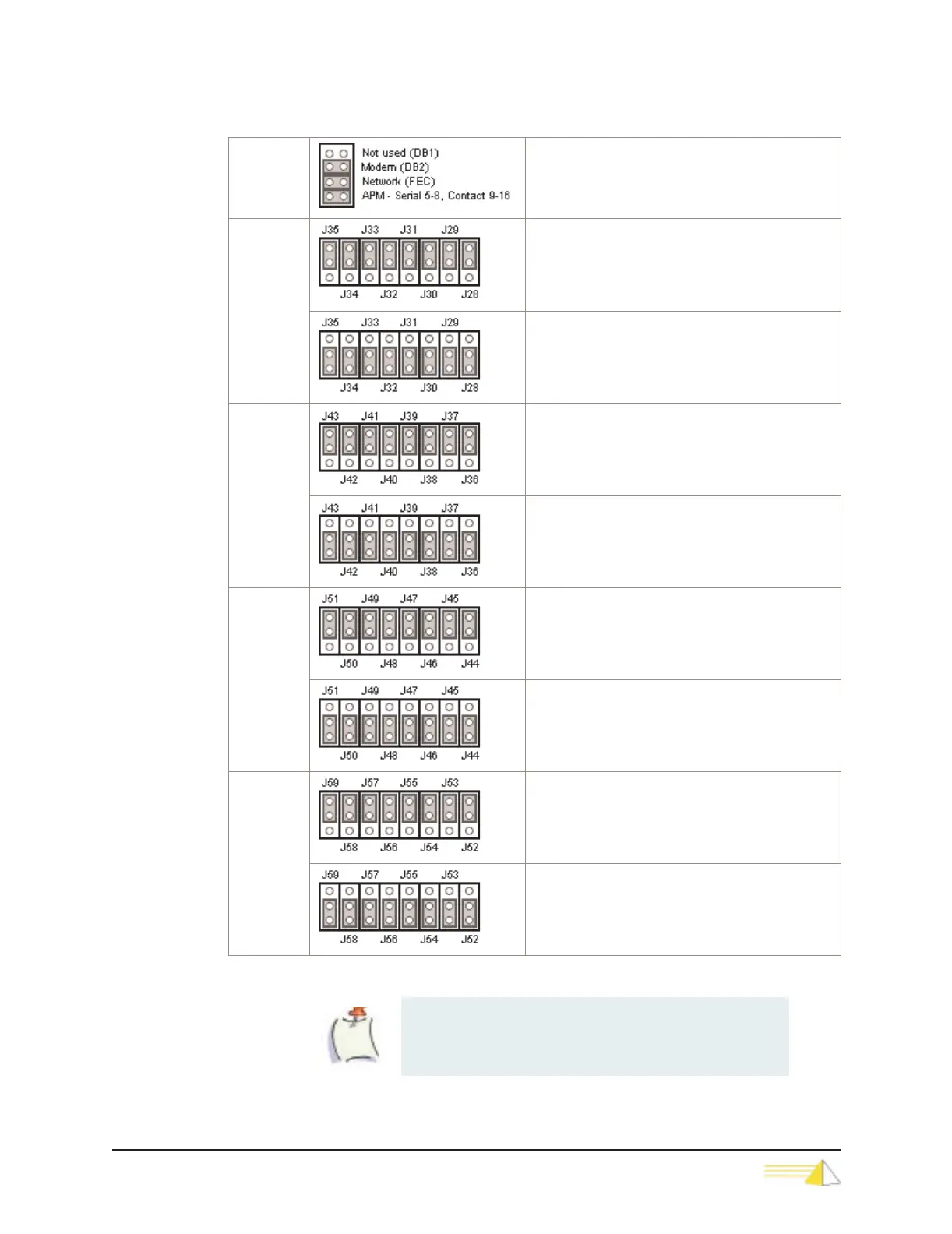

J22 Modules Present
J28 - J35 Contact Sensors 1-8 RS232 (normal voltage)
Contact Sensors 1-8 RS423 (low voltage)
J36 - J43 Contact Sensors 1-8 RS232 (normal voltage)
Contact Sensors 1-8 RS423 (low voltage)
J44 - J51 Contact Sensors 9-16 RS232 (normal voltage)
Contact Sensors 9-16 RS423 (low voltage)
J52 - J59 Contact Sensors 9-16 RS232 (normal voltage)
Contact Sensors 9-16 RS423 (low voltage)
Table 5-1:NET-PATH Jumper Settings
Note See "Contact Sensor Strap Options"‚ page 2-8 for
more information about jumper settings.
