12
Sidekick
®
Plus Test Set

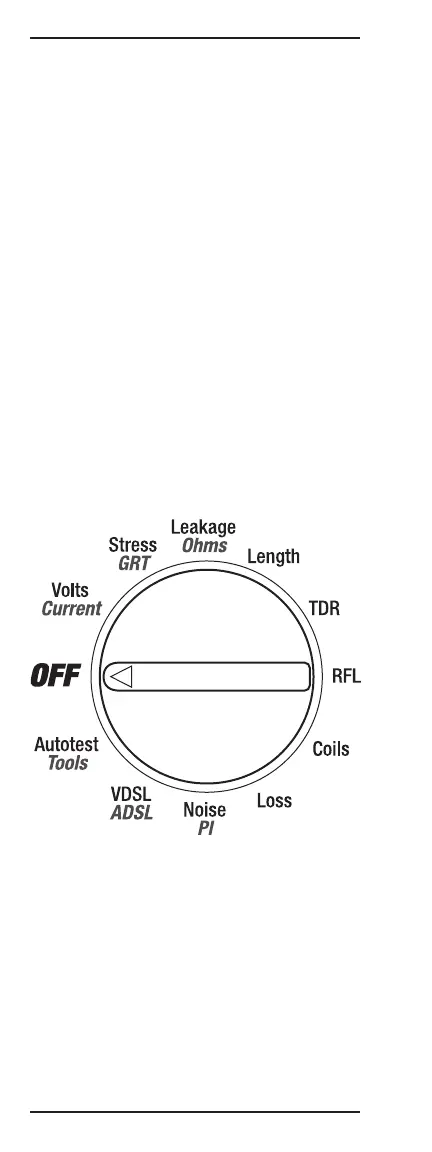

Rotary Selector Knob
The center of the base unit contains the rotary selector
knob. The OFF position is at the nine o’clock position.
Starting clockwise from the OFF position, the following
positions are available for selection:
• VOLTS/CURRENT
• STRESS/GRT (ground resistance)
• LEAKAGE/OHMS
• LENGTH
• TDR (time domain reflectometer)
• RFL (resistance fault locator)
• COILS
• LOSS
• NOISE/PI (power influence)
• VDSL/ADSL
• AUTOTEST/TOOLS
Operation of each of these positions is discussed in the
next section, “Operation.”
