15
Sidekick
®
Plus Test Set
Function Keys
F1 HELP
Access the HELP screen by pressing and holding the Fn
key. Then press the F1 HELP function key.
This screen displays instructions directly related to the
position of the rotary selector knob. If the knob is in the
VOLTS position, the instructions explain how to obtain a
voltage measurement.
F3 Next accesses the next page in the instructions.
F4 Exit returns the display to where it was when HELP
was accessed.

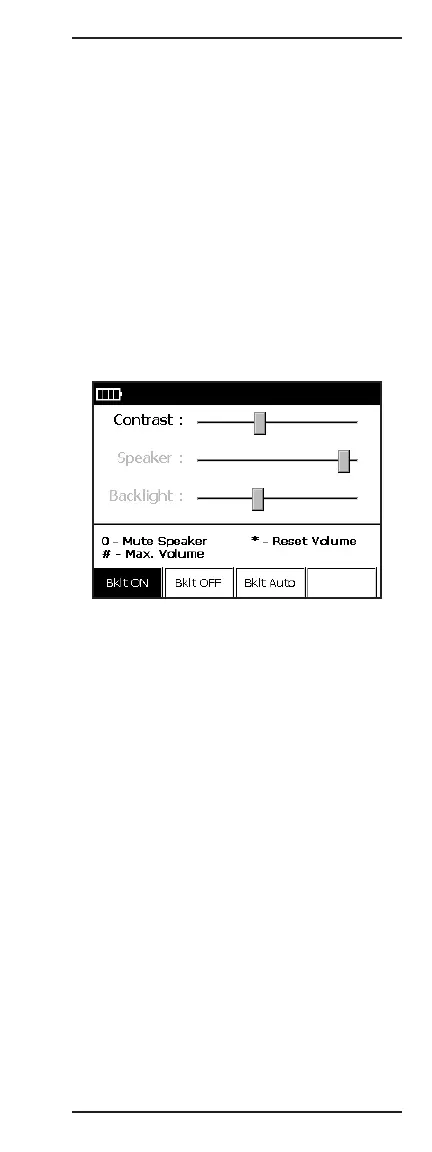

F2 CONTRAST/SPEAKER VOLUME
The Contrast screen allows the technician to adjust the
LCD display for the current light environment. Press
and hold the Fn key. Then press the F2 CONTRAST key.
Press F1 Bklt ON to disable the auto-off timer. Press
F2 Bklt OFF to turn the backlight off. Press F3 Bklt
Auto to enable the 5 second auto-off timer. With the
timer enabled, the backlight turns on whenever a key
is pressed or the knob is rotated. The backlight then
turns off after 5 seconds (time may be adjusted in the
configuration setting).
To adjust the Contrast, Speaker, or Backlight, use the
up (2) and down (8) keys to select. Then use the left (4)
and right (6) keys to adjust the selected slider.
Note: If the Contrast is set too high, it can be difficult to
distinguish active selections. It is recommended to set
the Contrast first.
Speaker volume defaults to 50% when the
*
(asterisk)
on the keypad is pressed.
• Press 0 on keypad to mute speaker.
• Press # on keypad for maximum 100% volume.
