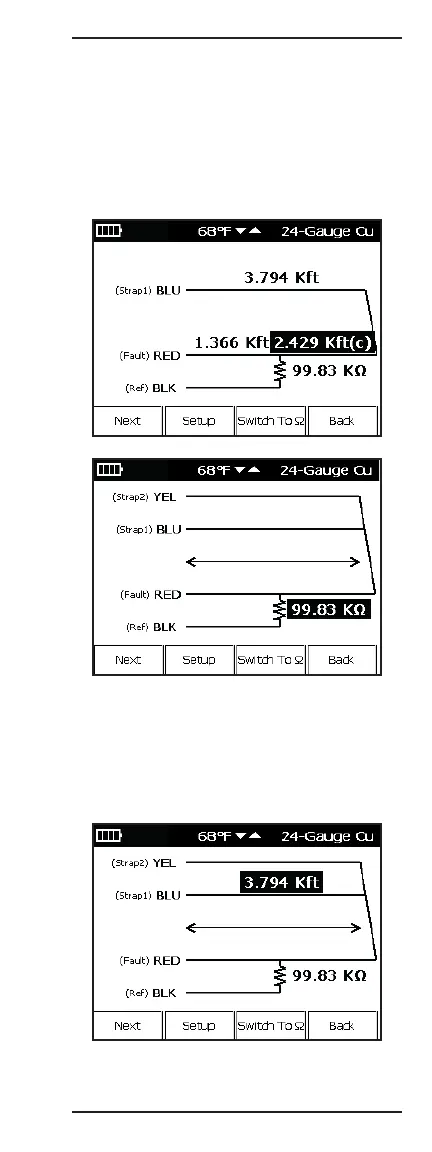

The next two displays illustrate a 3-wire connection
and a 4-wire configuration if the yellow lead is con-
nected to the cable.
Sidekick
®
Plus test set connections are on the left;
the strap is on the right. The resistance of the fault is
highlighted.
Note: A “B fault” error is displayed if voltage is
detected between the black and red lead.
Press F1 Next.
The display now shows the resistance of the conductor
connected to the blue lead.
Press F3 Switch To ft to convert resistance into dis-
tance. To accurately calculate the distance, the gauge
and temperature of the blue lead must be set.
To Next Page
