150Mbps Portable 3G Wireless Router User Guide
you set should be the same as that of the AP. More
details please refer to chapter 6.2.

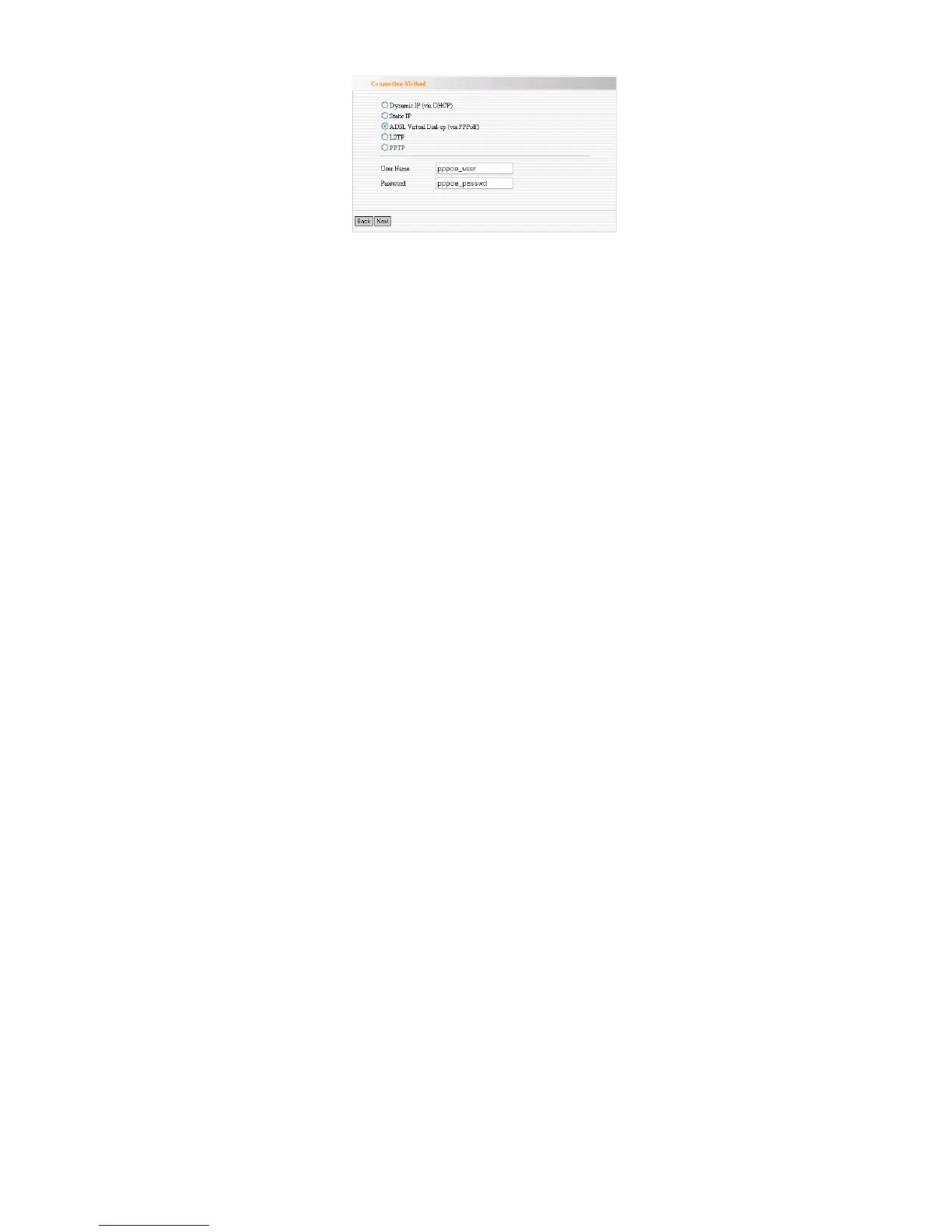

4.3.3 Connection Method
In WISP mode, there are five access modes: Dynamic IP
(via DHCP), Static IP, ADSL Virtual Dial-up (via PPPoE), L2TP
and PPTP. The default mode is Dynamic IP. If your ISP
provides you the Dynamic IP access mode, please select
“Dynamic IP” and click “next”. If you are provided the static
IP access mode, please select “Static IP” and fill in the
parameters provided by your ISP or network administrator
and then click “Next”. If you are provided the PPPoE access
mode, please input the user name and password provided by
your ISP and click “Next”. In L2TP and PPTP modes, you
need to input the IP address, user name, and password.
Please refer to chapter 4.1.4 to 4.1.6 for further settings.
4.4 Wireless Router Mode
In wireless router mode, you can directly connect it to
