10
about 1 second, the WPS feature will be enabled and WPS
indicator will be shown blinking. Press this button for 7 seconds,
the settings configured in this device will be deleted and it will
restore the settings to the default one.
¾
MODE
Press this button to change working modes and the matching
indicator will turn blue.

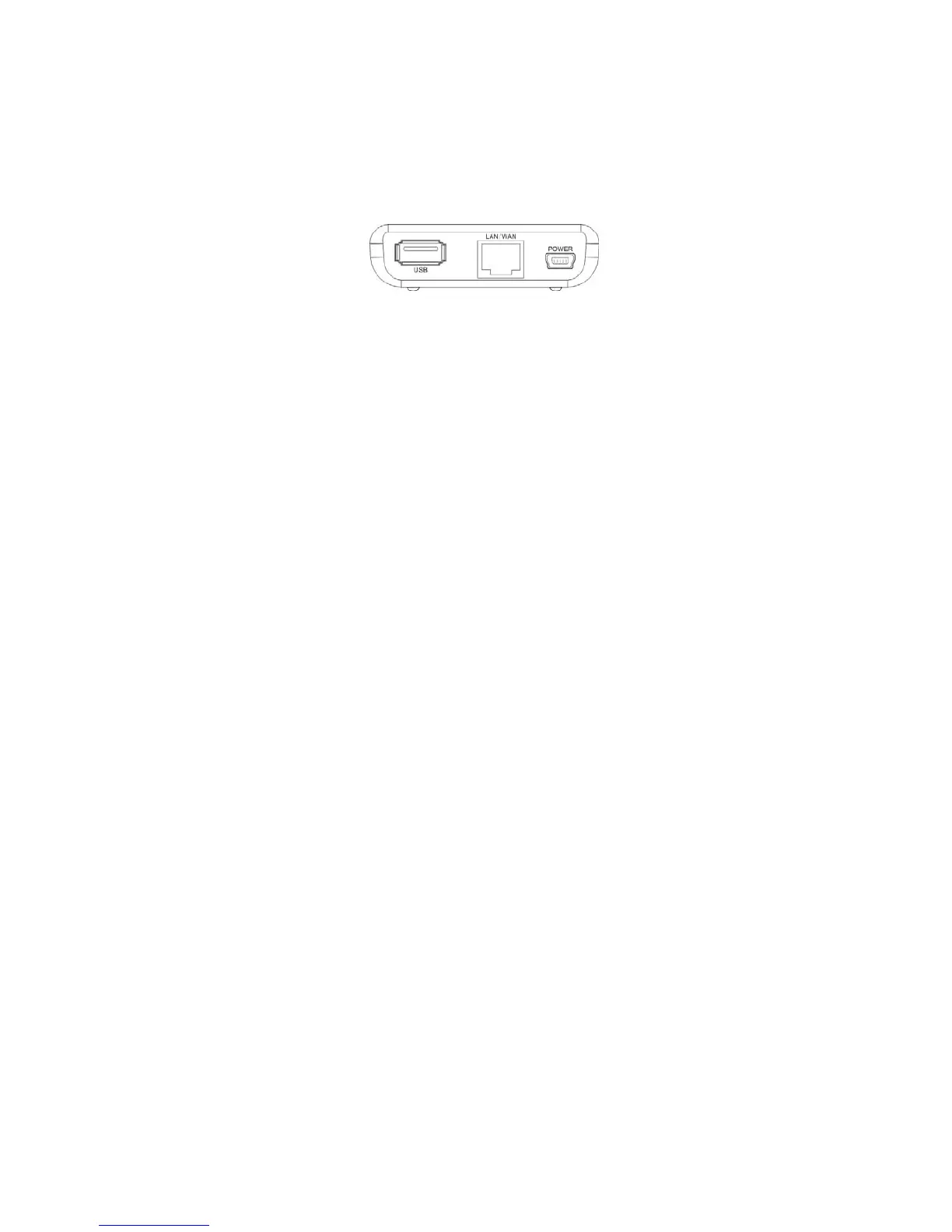

1.4.3 Rear Panel Show：
Rear Panel：（From L to R）
¾ POWER
The port is for USB line connection. Please use the included USB
line connected with the power adapter or the USB port of
computer.
¾ LAN/WAN
The 100Mbps Ethernet port, in 3G Router/Wireless Router mode,
it is a WAN access port to connect the DSL, MODEM generally.
While in AP, WISP mode, it is a LAN port to connect the PC,
Ethernet Switch.
¾ USB
USB 2.0 port is for 3G Modem card access, such as TD-SCDMA,
WCDMA2000, and WCDMA.
