59

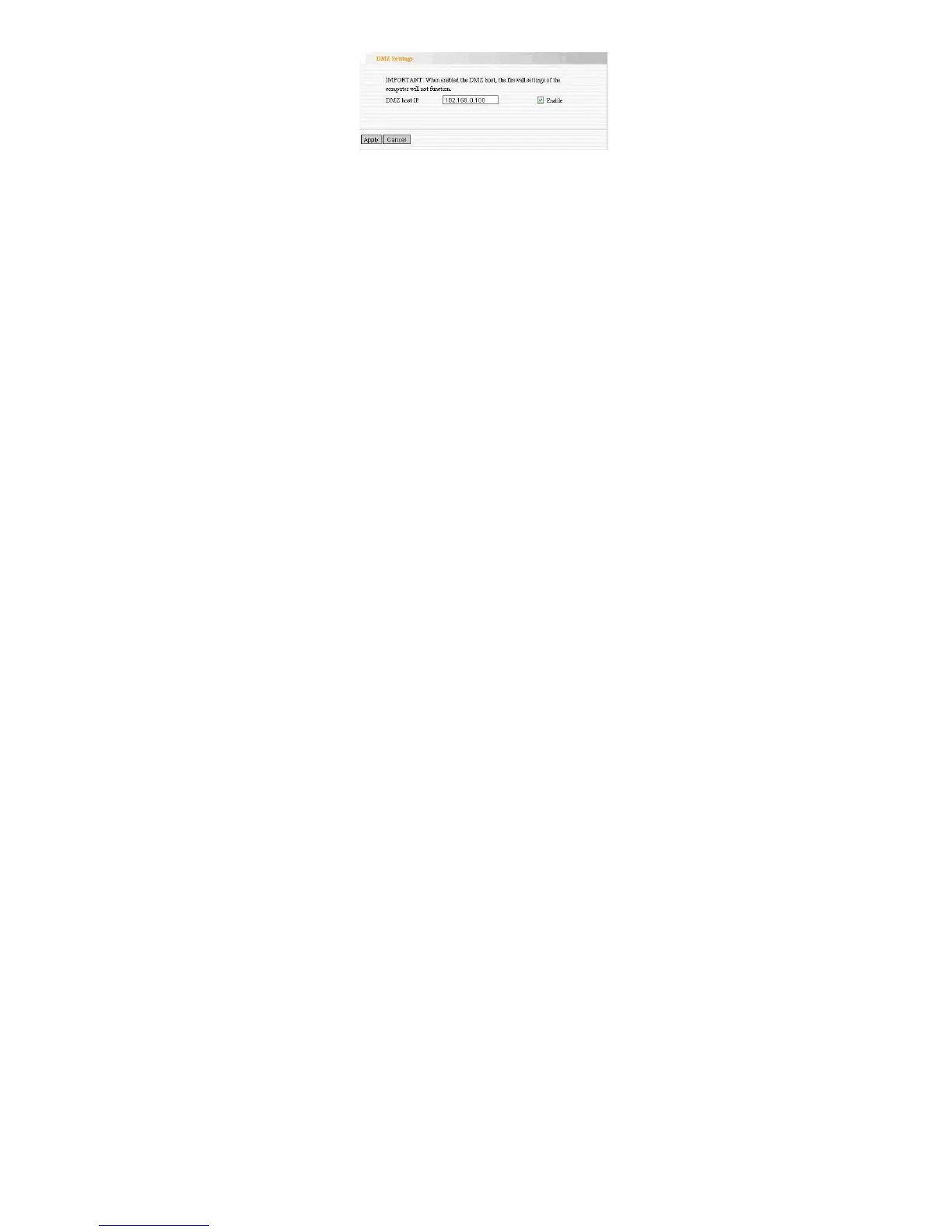

¾ DMZ Host IP Address: The IP address of the computer you
want to expose.
¾ Enable: Click the checkbox to enable the DMZ host.
For example:
Set the computer at the IP address of 192.168.0.100 in LAN as a
DMZ Host to intercommunicate with another host on the Internet.
IMPORTANT:
When the DMZ host is enabled, the firewall settings of the DMZ
host will not function.
8.3 UPNP Settings
It supports latest Universal Plug and Play. This function goes into
effect on Windows XP or Windows ME or this function would go
into effect if you have installed software that supports UPnP. With
the UPnP function, host in LAN can request the router to process
some special port switching so as to enable host outside to visit
the resources in the internal host.
