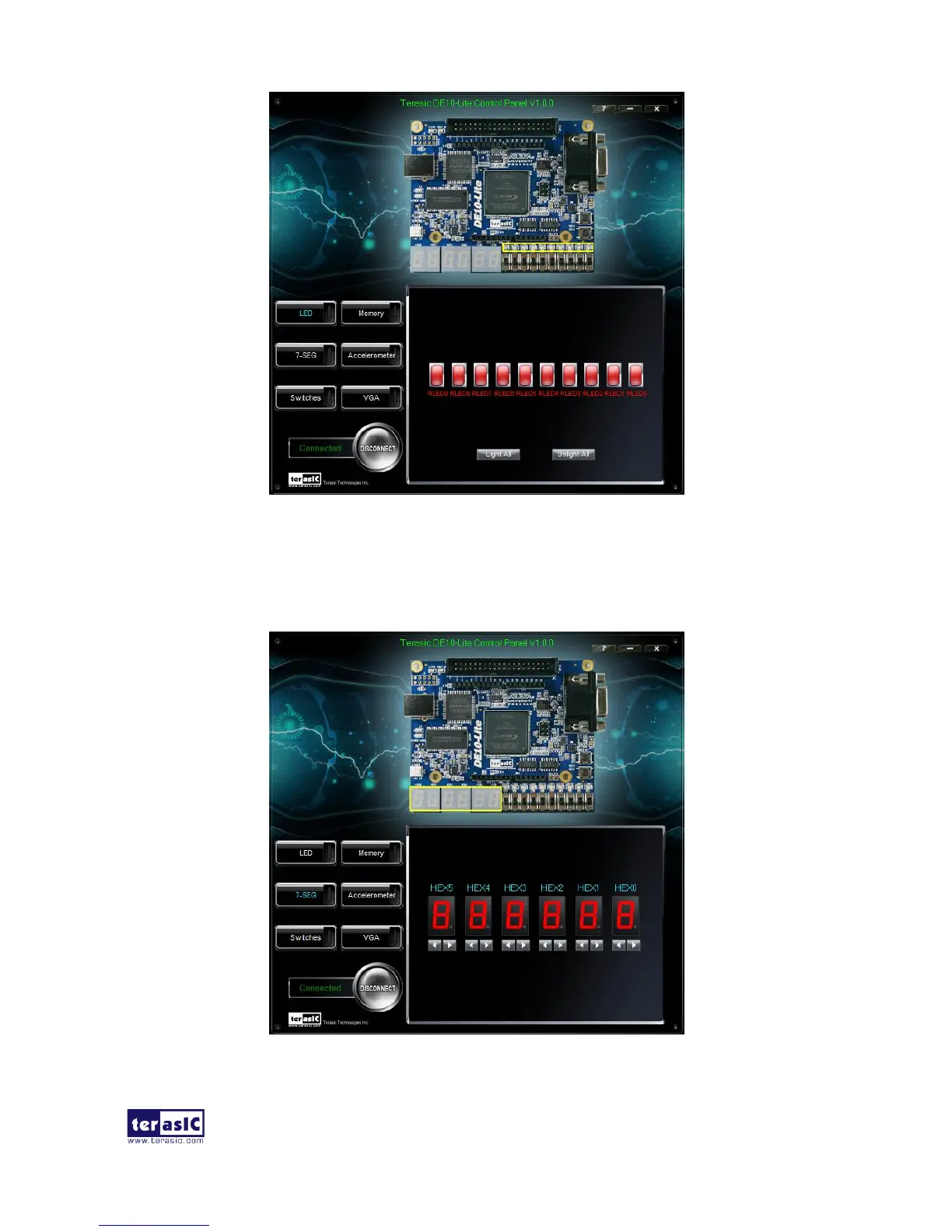

Figure 2-3 Controlling LEDs
Choosing the 7-SEG tab leads you to the window shown in Figure 2-4. From the window, directly
use the left-right arrows to control the 7-SEG patterns on the DE10-Lite board which are updated
immediately. Note that the dots of the 7-SEGs are not enabled on the DE10-Lite board.
Figure 2-4 Controlling 7-SEG display
