◼ GPIO Expansion
If users connect any Terasic GPIO-based daughter card to the GPIO connector(s) on DE10-Lite, the
DE10-Lite System Builder can generate a project that include the corresponding module, as shown
in Figure 4-5. It will also generate the associated pin assignment automatically, including pin name,
pin location, pin direction, and I/O standard.

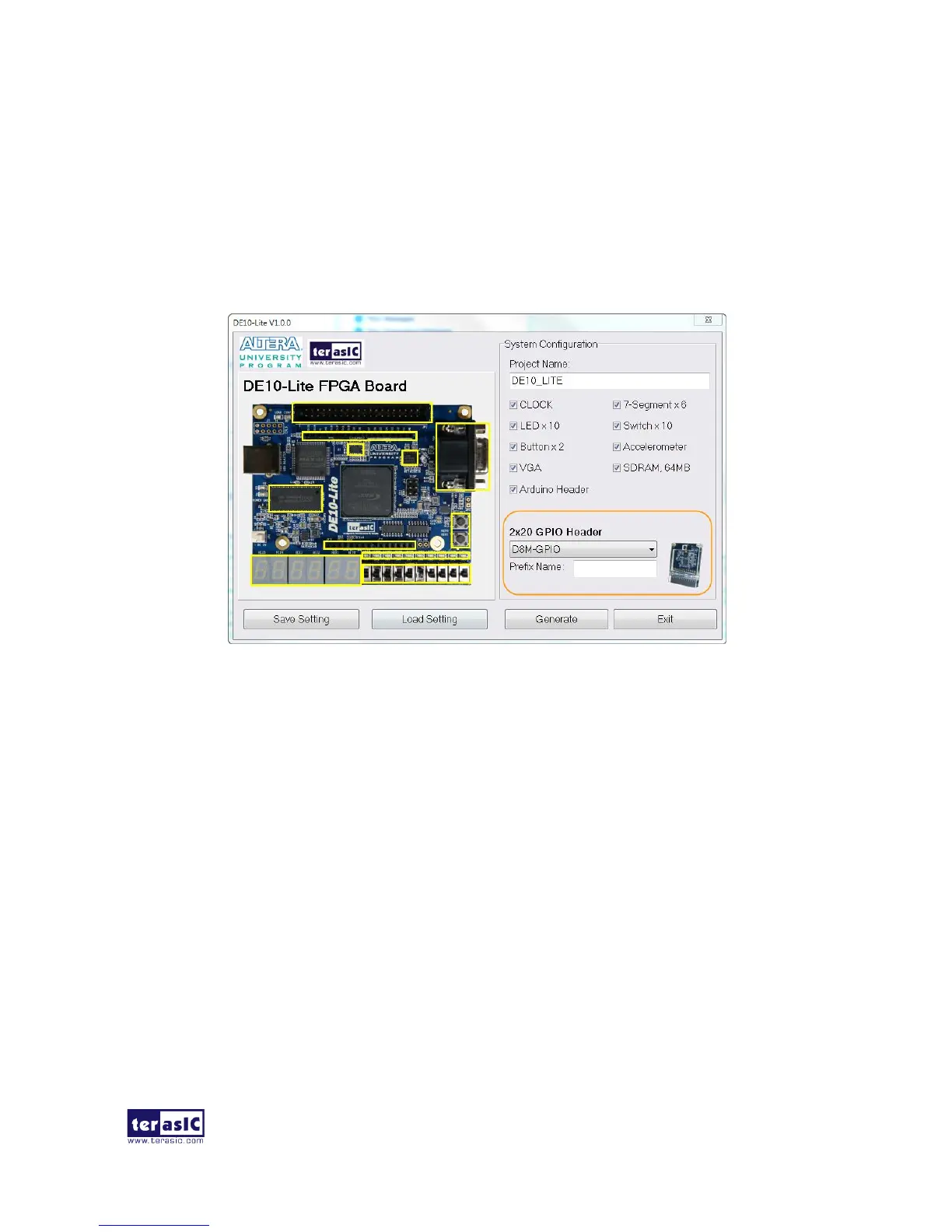

Figure 4-5 GPIO expansion group
The “Prefix Name” is an optional feature that denote the pin name of the daughter card assigned in
your design. Users may leave this field blank.
