OPERATION GUIDELINES
PLATFORM ROTATOR (OPTIONAL)
The platform rotator allows operator to rotate the platform from the stowed position to the rotated position
(end position). When not in use the platform must be placed in the stowed position.
Move the rotator control handle or lever smoothly and gradually for slow platform rotation. Avoid sudden
starts or stops when rotating the platform.
When moving the booms, position the platform in stowed position. Rotate platform into desired work position
when in work area. Return to stowed position, after work is complete to travel back to ground.
Always store for travel in the stowed position.

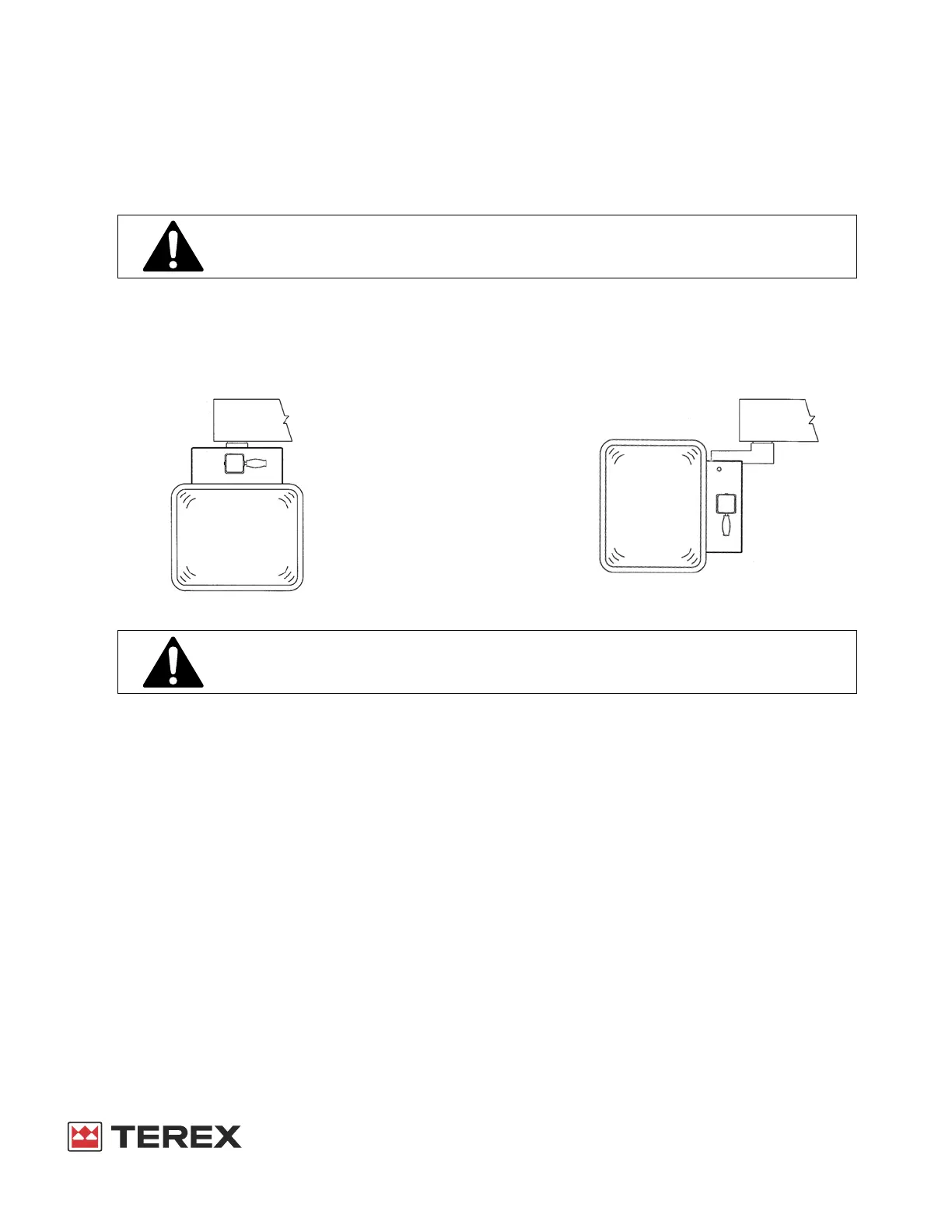

STOWED POSITION ROTATED (END) POSITION
Prior to platform rotation, observe all obstructions and hazards near the platform’s
swing path to avoid collisions and contact with lines. Contact with obstruction or
lines could cause serious personal injury or death.
Keep hands away from all moving parts on the rotator assembly when operating or
servicing.
