TM SERIES
1-14
472797 - 1/15 Terex South Dakota, Inc. TM Series
OPERATION GUIDELINES

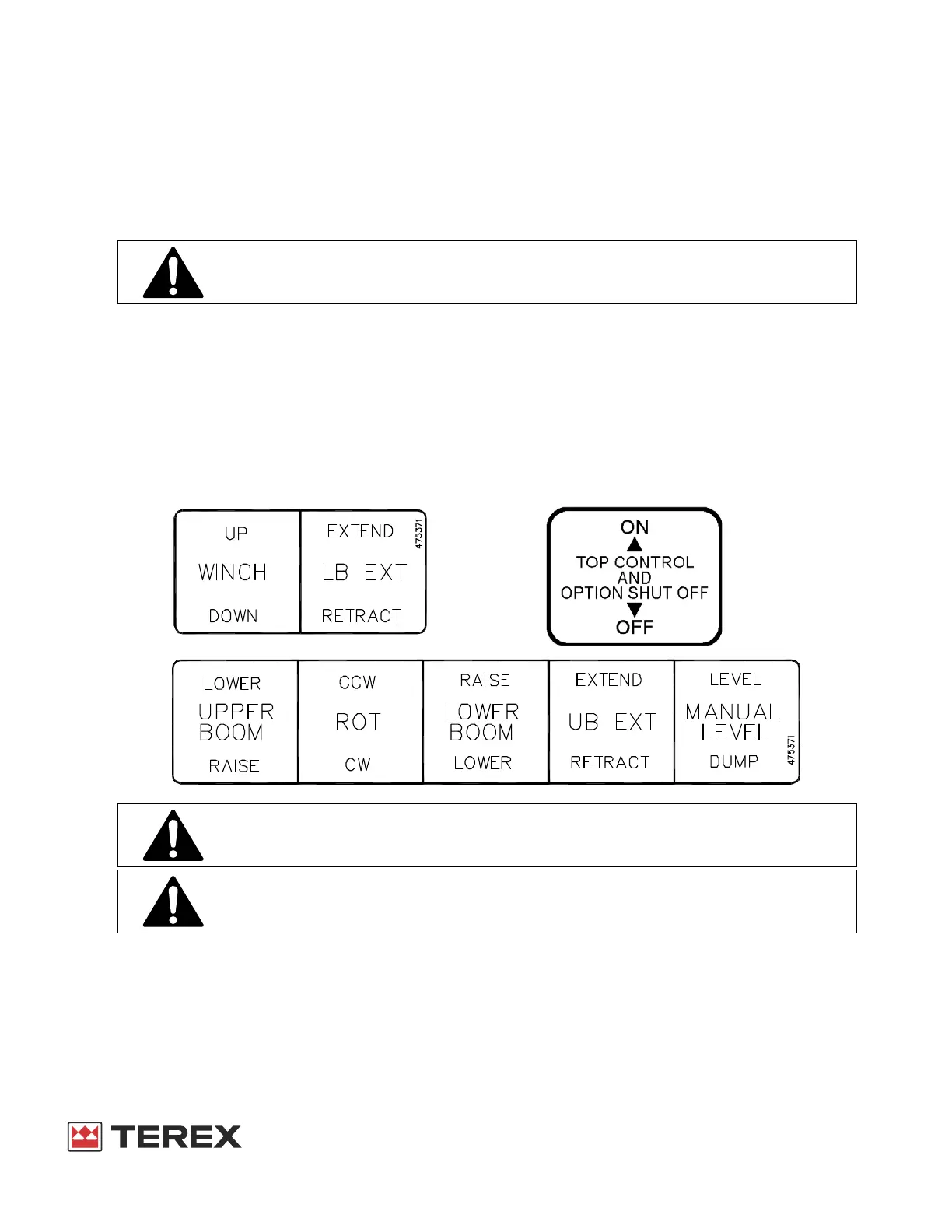

TOP CONTROL AND OPTION SHUT OFF
The Top Control and Option Shut Off is used to stop operation of the upper controls. It will stop all oil flow to
the boom tip in case of an oil leak. It is also used to override the upper controls in case of an emergency. The
upper controls are not operable when the Top Control and Option Shut Off is in the “OFF” position. The lower
controls will operate with the shut off in either the “OFF” or “ON” position.
LOWER CONTROL FUNCTIONS
The control location shown is generic. The actual location will vary depending on the purchaser
requirements and options. Some of the following control functions may not be included in the controls for this
Aerial Device. Refer to the control decals on unit for proper operation.
The control levers are self-centering, spring-loaded, and return to the neutral position when released.
The hydraulic platform tilt (optional) allows the platform to be tilted for cleaning out the platform and for
personnel rescue. Lower controls must be selected for this option to be functional and must never be
operated with personnel in the platform except in the case of an emergency.
Use the Top Control and Option Shut Off to override the upper controls. The “off”
position stops oil flow to the upper controls and options at the boom tip.
Keep the truck bed area free of obstructions to avoid interference with the lower
controls and personnel who may have to operate the lower controls in an
emergency.
f
Do not operate controls while standing on the ground or other structure with
booms elevated from stored position. Operating the machine while standing on the
ground or other structure could result in electrocution.
