TM SERIES
1-26
472797 - 1/15 Terex South Dakota, Inc. TM Series
OPERATION GUIDELINES

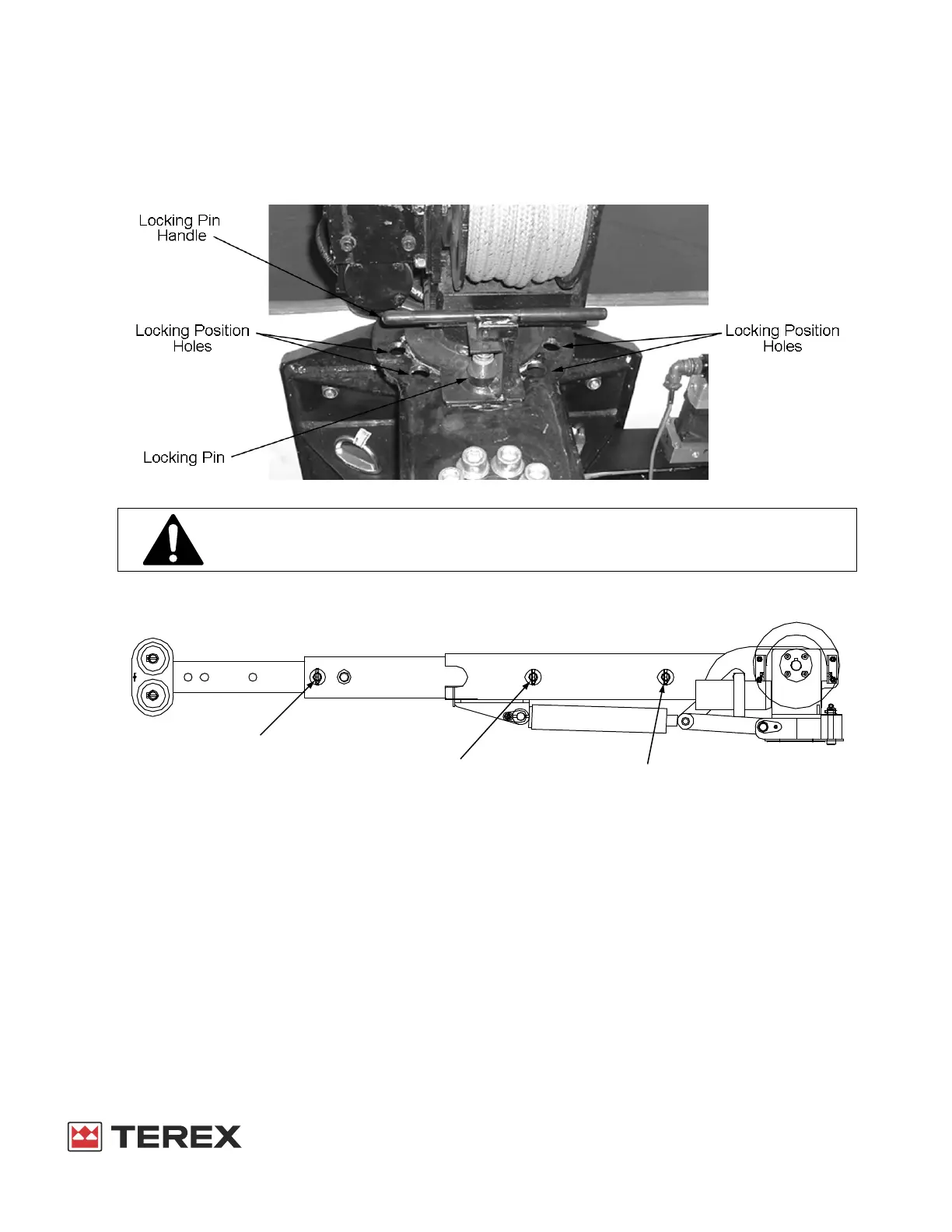

JIB ROTATION
Jib rotation is a manual operation with 5 locking positions. To rotate the jib, release the locking pin located at
the rear of the jib. Manually rotate the jib to one of the 5 locking positions.
COVERS REMOVED FOR CLARITY
MANUAL JIB EXTENSION
Both the 1st inner and 2nd outer jib extensions are manually operated. To extend the inner jib section:
1. Pull the inner jib pin and manually pull the inner jib to the desired extension. It will extend up to 17
inches.
2. Replace the inner jib pin.
To extend the 2nd extension:
1. Pull the outer jib pin and manually pull the outer jib to the desired extension.
2. Replace the outer jib pin in the extended position.
NOTE: Do not extend or retract the jib with a load suspended, adjust prior to lifting the load.
Do not operate the jib without the locking pin securely locked into one of the
designated locking positions.
Inner Jib Pin
Outer Jib Pin
Extended Position
Outer Jib Pin
Stored Position
