Terex HI-RANGER TM Series User Manual

TM SERIES
1-32
472797 - 1/15 Terex South Dakota, Inc. TM Series
OPERATION GUIDELINES

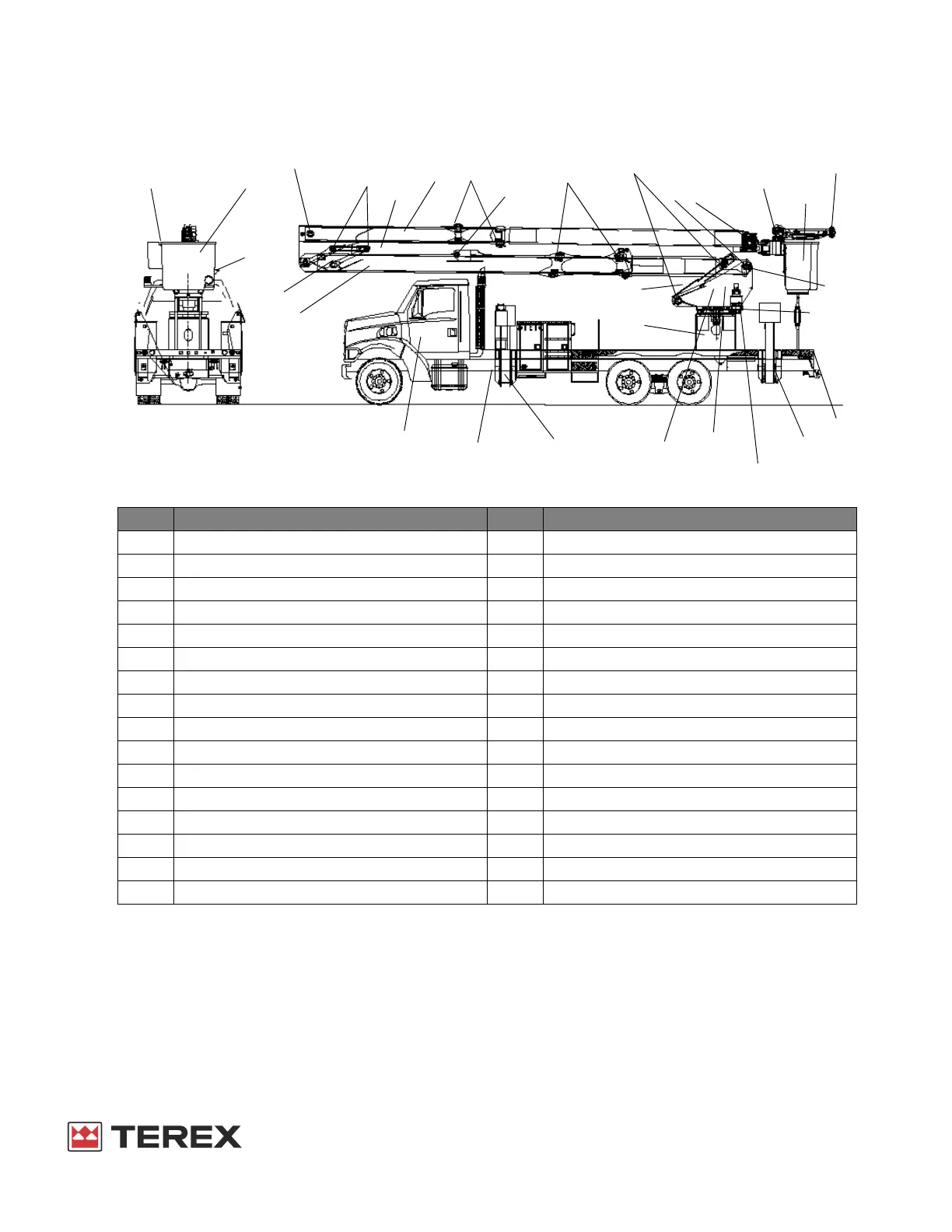

AERIAL DEVICE CHECKS
ITEM DESCRIPTION ITEM DESCRIPTION
1. Outriggers 17. Upper Controls
2. Outrigger Cylinders 18. Platform and Harness
3. Outrigger Alarms 19. Platform Step
4. Outrigger Mounting 20. Platform Mounting
5. Return Line Filter 21. Electrical Systems
6. Main or Auxiliary Pump 22. Operator's Manual
7. Lower Controls 23. Boom Pivot Linkage and Pins
8. Rotation Gear Box 24. Upper Boom Cylinder
9. Rotation Bearing Bolts 25. Upper Boom Cylinder Mounting Pins
10. Rotation Bearing 26. Winch Line & Hook
11. Lower Boom Lift Cylinder 27. Boom Tip Covers & Guards
12. Lower Boom Lift Cylinder Mounting Pins 28. Extension Rollers
13. Lower Boom Pivot Installation 29. Master Cyl Limit System
14. Throttle Control 30. Slave Cyl Limit System
15. Lower Boom 31. Extension cyl attachment
16. Upper Boom
1, 2, 4
11
12
15
16
17
18
7, 1421, 22
25
26
5, 6, 21
27
19
20
30
28
1, 2, 4
21
14
9, 10
8
13
17
24
25
29
21
Opp side
31
28
