6.1.4 Digital Phase-Locked Loop Power Supply Requirements
The digital phase-locked loop (DPLL) provides all interface clocks and functional clocks to the processor
of the AM335x device. The AM335x device integrates 5 different DPLLs—Core DPLL, Per DPLL, Display
DPLL, DDR DPLL, MPU DPLL.

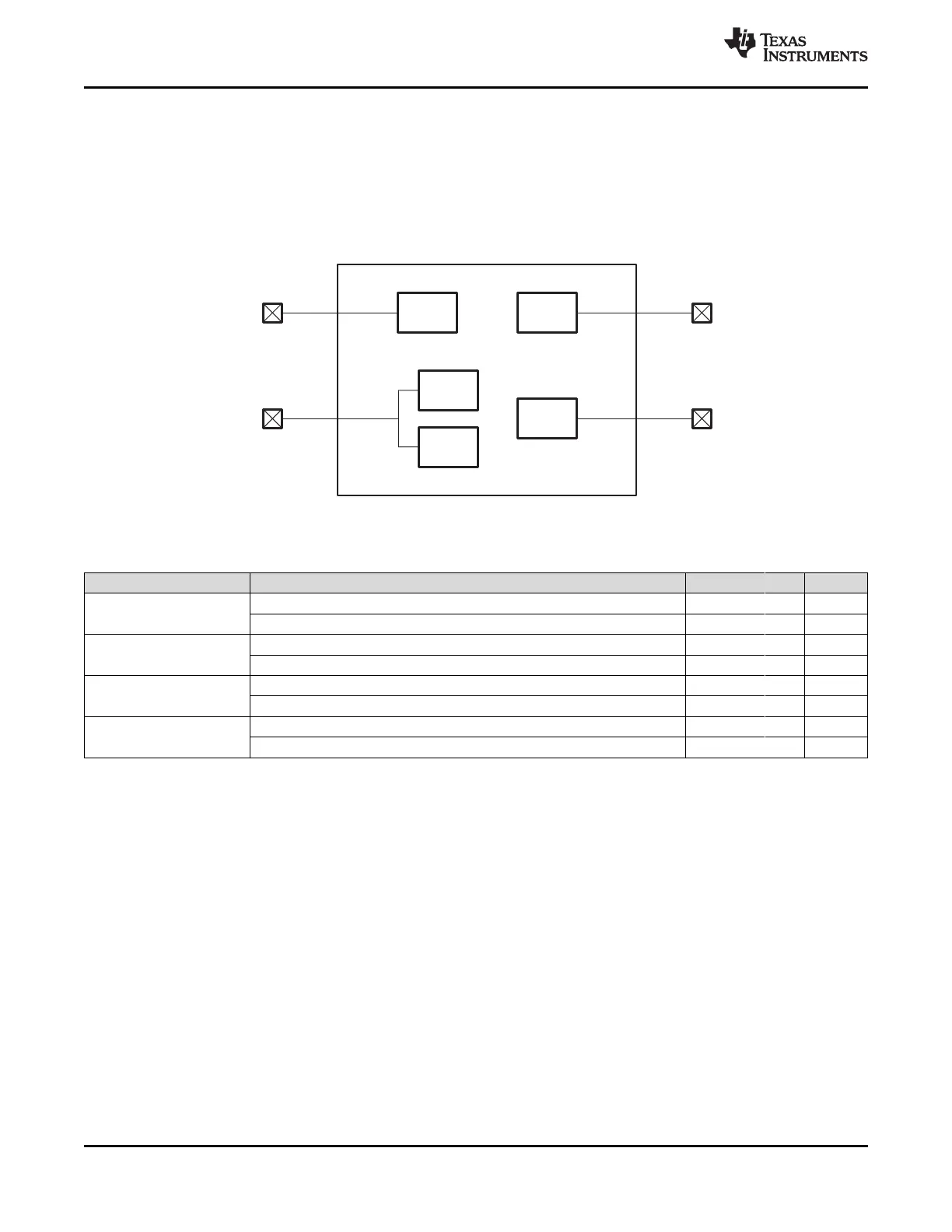

Figure 6-8 shows the power supply connectivity implemented in the AM335x device. Table 6-1 provides
the power supply requirements for the DPLL.
Figure 6-8. DPLL Power Supply Connectivity
Table 6-1. DPLL Power Supply Requirements
SUPPLY NAME DESCRIPTION MIN NOM MAX UNIT
VDDA1P8V_USB0 Supply voltage range for USBPHY and PER DPLL, Analog, 1.8 V 1.71 1.8 1.89 V
Max peak-to-peak supply noise 50 mV (p-p)
VDDS_PLL_MPU Supply voltage range for DPLL MPU, analog 1.71 1.8 1.89 V
Max peak-to-peak supply noise 50 mV (p-p)
VDDS_PLL_CORE_LCD Supply voltage range for DPLL CORE and LCD, analog 1.71 1.8 1.89 V
Max peak-to-peak supply noise 50 mV (p-p)
VDDS_PLL_DDR Supply voltage range for DPLL DDR, analog 1.71 1.8 1.89 V
Max peak-to-peak supply noise 50 mV (p-p)
