Texas Instruments AM335x Sitara

GPMC_FCLK
gpmc_csn[x]
gpmc_be0n_cle
gpmc_advn_ale
gpmc_oen
gpmc_wen
gpmc_ad[15:0]
Address
GNF0
GNF1
GNF7
GNF3
GNF4
GNF6
GNF8
GNF9
GPMC_FCLK
gpmc_csn[x]
gpmc_be0n_cle
gpmc_advn_ale
gpmc_oen
gpmc_wen
gpmc_ad[15:0]
Command
GNF0
GNF1
GNF2
GNF3 GNF4
GNF5
GNF6
AM3359, AM3358, AM3357, AM3356, AM3354, AM3352
www.ti.com SPRS717H –OCTOBER 2011–REVISED MAY 2015
(1) In gpmc_csn[x], x is equal to 0, 1, 2, 3, 4, or 5.

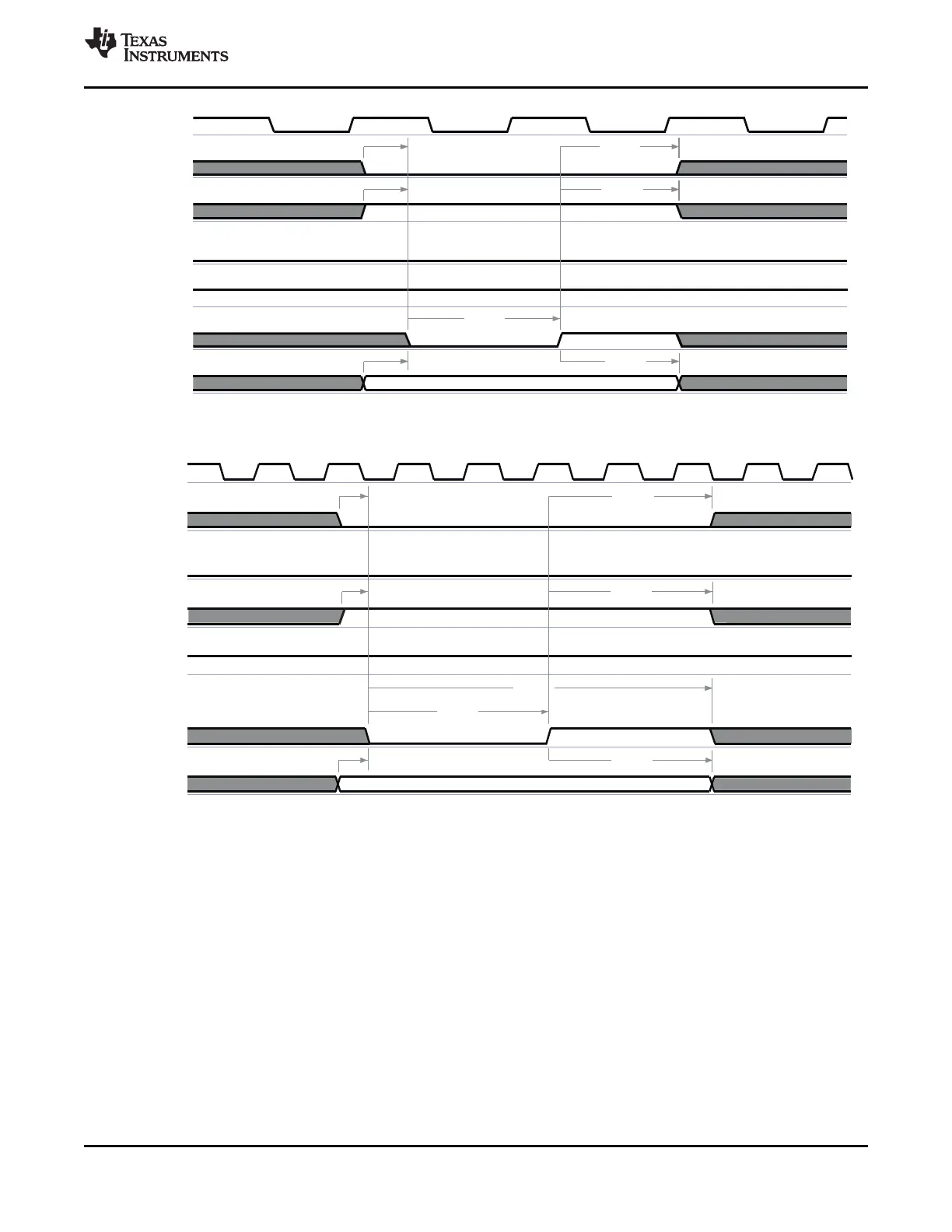

Figure 7-28. GPMC and NAND Flash—Command Latch Cycle
(1) In gpmc_csn[x], x is equal to 0, 1, 2, 3, 4, or 5.
Figure 7-29. GPMC and NAND Flash—Address Latch Cycle
