15
14
13
13
12
12
11
10
10
9
A0 A1 B0 B1A30 A31 B30 B31 C0 C1 C2 C3 C31
13
13
13 1313
McASP[x]_ACLKR/X (Falling Edge Polarity)
McASP[x]_AHCLKR/X (Rising Edge Polarity)
McASP[x]_AFSR/X (Bit Width, 0 Bit Delay)
McASP[x]_AFSR/X (Bit Width, 1 Bit Delay)
McASP[x]_AFSR/X (Bit Width, 2 Bit Delay)
McASP[x]_AFSR/X (Slot Width, 0 Bit Delay)
McASP[x]_AFSR/X (Slot Width, 1 Bit Delay)
McASP[x]_AFSR/X (Slot Width, 2 Bit Delay)
McASP[x]_AXR[x] (Data Out/Transmit)
McASP[x]_ACLKR/X (CLKRP = CLKXP = 1)
(A)
McASP[x]_ACLKR/X (CLKRP = CLKXP = 0)
(B)
AM3359, AM3358, AM3357, AM3356, AM3354, AM3352
SPRS717H –OCTOBER 2011–REVISED MAY 2015
www.ti.com
A. For CLKRP = CLKXP = 1, the McASP transmitter is configured for falling edge (to shift data out) and the McASP
receiver is configured for rising edge (to shift data in).
B. For CLKRP = CLKXP = 0, the McASP transmitter is configured for rising edge (to shift data out) and the McASP
receiver is configured for falling edge (to shift data in).

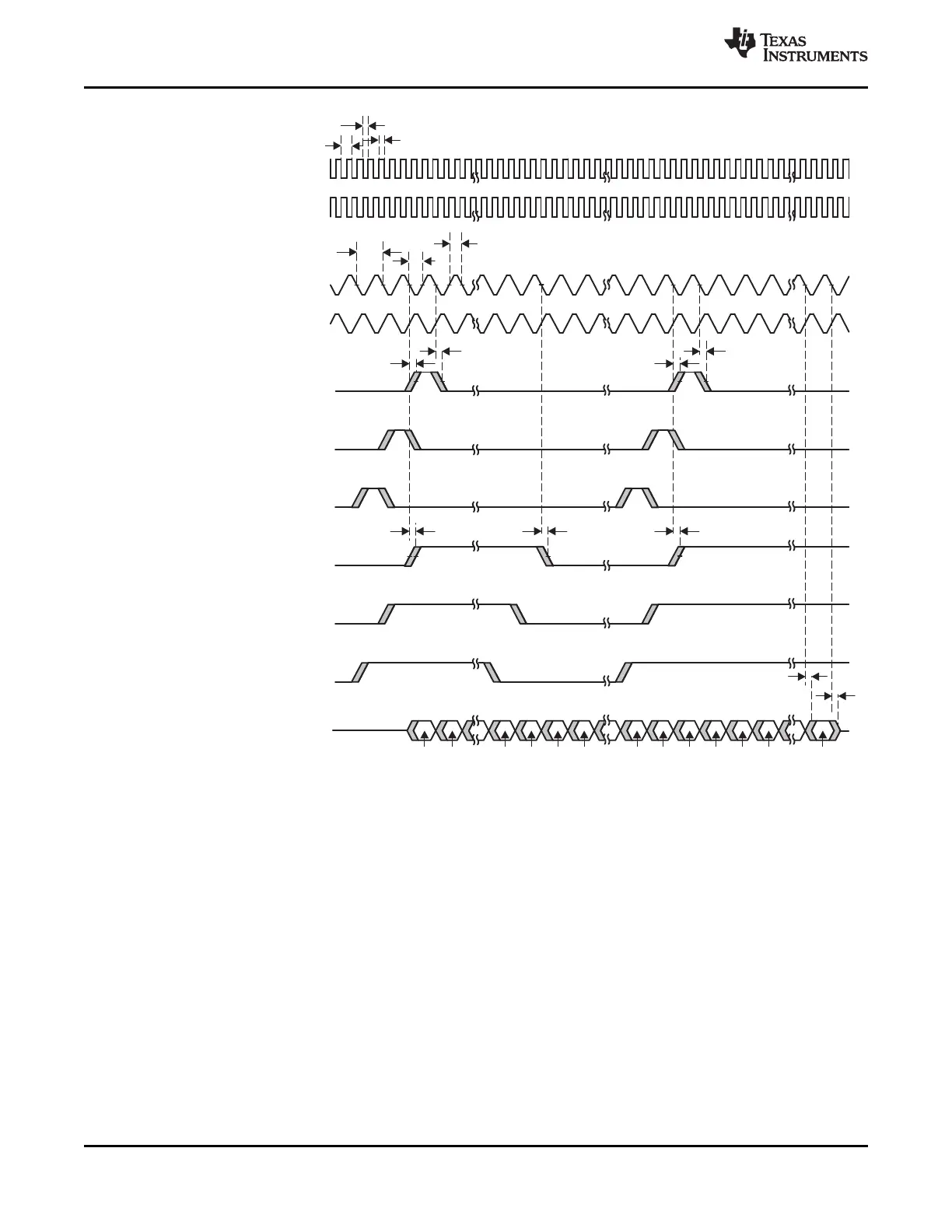

Figure 7-87. McASP Output Timing
214 Peripheral Information and Timings Copyright © 2011–2015, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: AM3359 AM3358 AM3357 AM3356 AM3354 AM3352
