• Data Bytes: 0x60
Press write. The all fault lights for the devices should turn green.
Under the GPIO/Temperature tab, the converted measurements of the eight GPIO pin voltages and the two die
temperatures are displayed. Like the previous tab, the user can also customize the display using Manage
Columns and display the unconverted hex values directly from the corresponding registers. To enable GPIO's
for ADC measurements, refer to the below section for details on the GPIO/Temperature tab.
In the GPIO/Temperature tab, there is a CONFIG button on the right hand side shown below. This allows the
user to configure all GPIOs for an individual device, this button and pop up window are shown below. Please
take note that after you change any GPIO settings, you will need to Stop and then Start Polling in order to
properly set your GPIO settings. This is because the device requires the Main ADC to be reset to acknowledge
any setting changes.

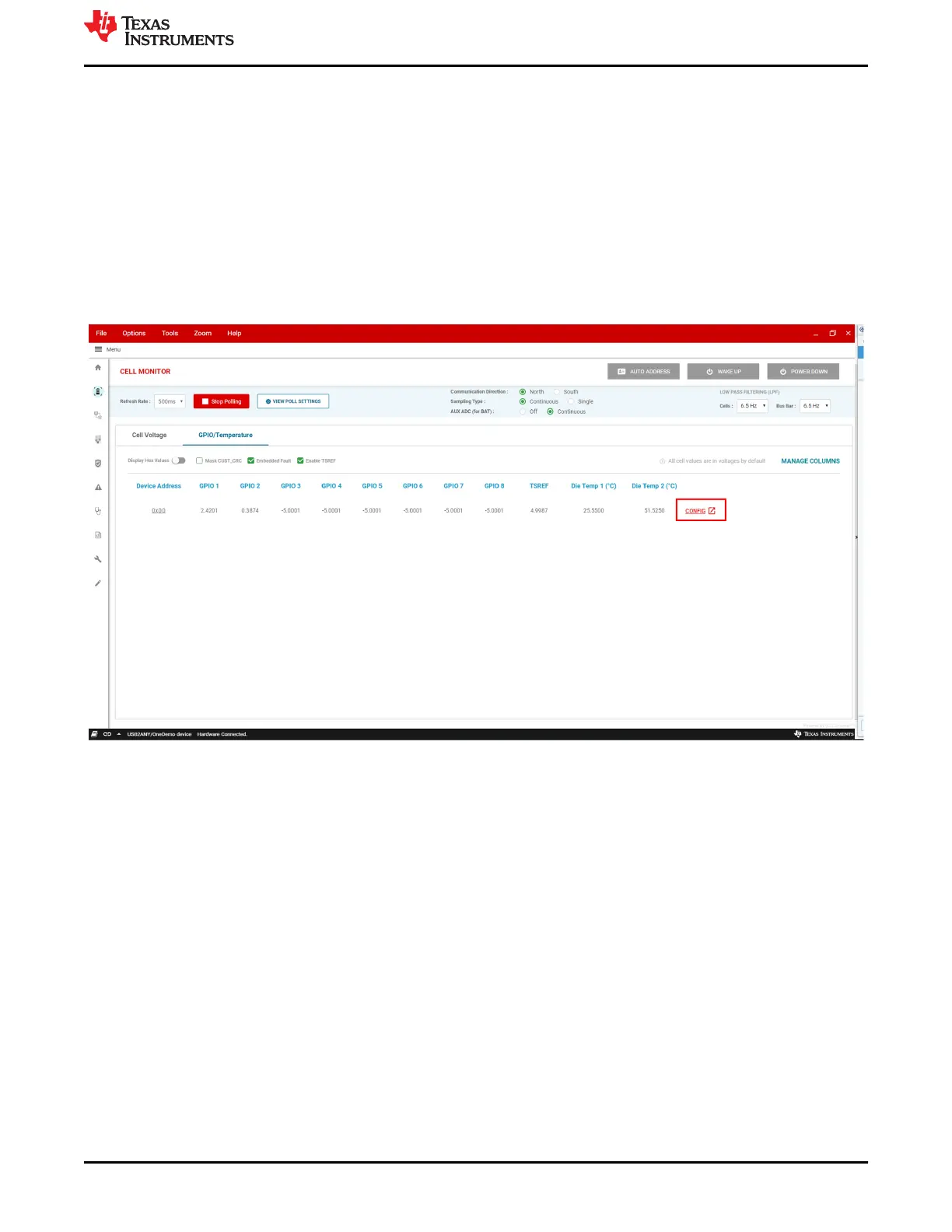

Figure 3-4. GPIO/Temperature Tab
www.ti.com
Cell Monitor
SLUUC36 – DECEMBER 2020
Submit Document Feedback
BQ79616-Q1 and BQ75614-Q1 GUI User's Guide 15
Copyright © 2020 Texas Instruments Incorporated
