10 Register Map
The register map page displays all relevant writeable and readable registers for any devices being used. The
registers are grouped by general function, that is measurements, protection, and so forth. If there are multiple
connected devices, the device being displayed can be switched with a drop-down menu at the top of the page.

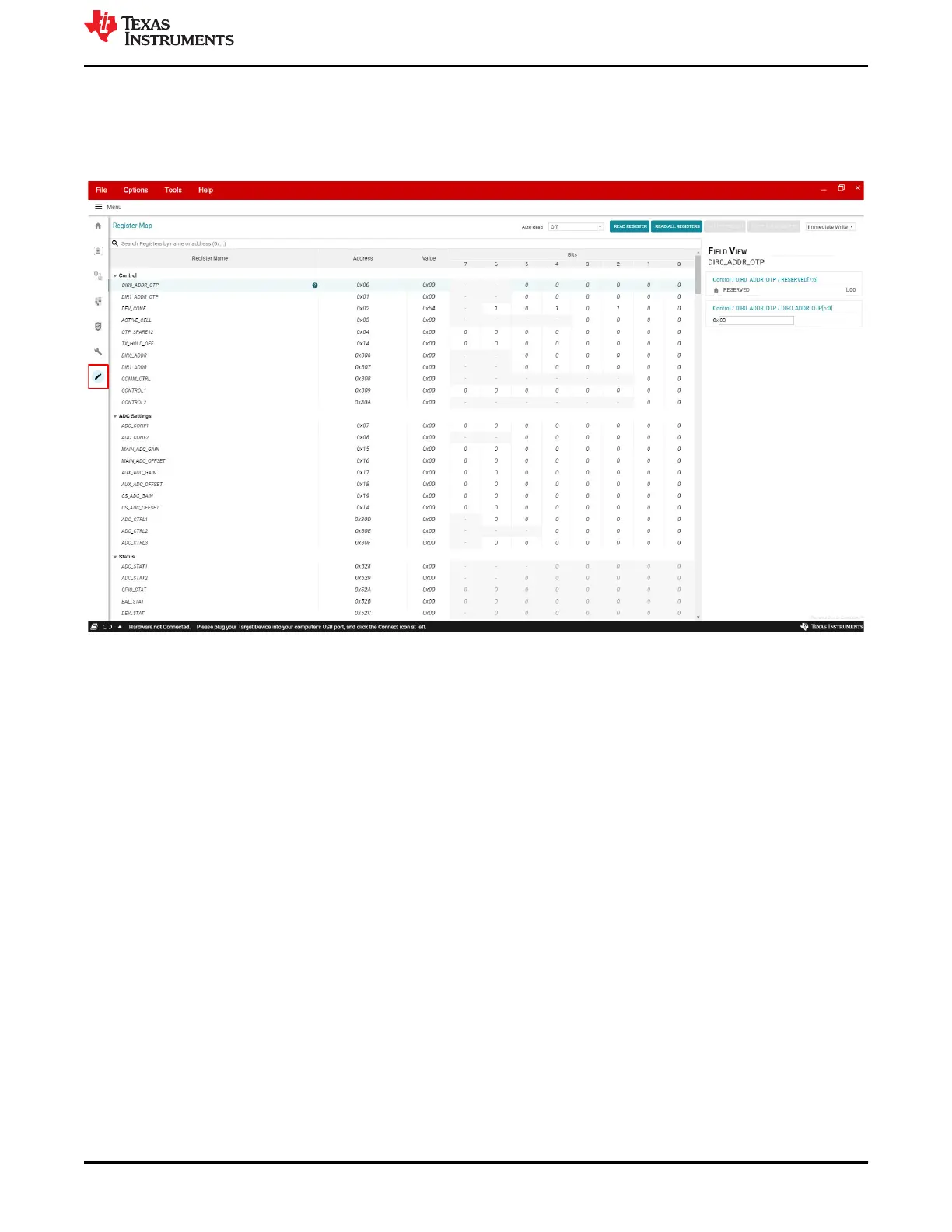

Figure 10-1. BQ79616 GUI Register Map Page
10.1 Register Display
In the register display, registers are displayed with their names, addresses, and values. Double clicking on any
bit flips the value and immediately writes it to the corresponding register. In Deferred Write mode, register writes
can be queued up and executed by pressing either write button. Upon selecting a register, an information button
next to the register name appears. Clicking on the button reveals more about the selected register, including the
default value and information about the fields within the register.
A field view also opens up on the right side of the screen that allows the user to directly edit certain register
fields. Selecting a field in the field view also displays an information button. Clicking on it displays the name of a
field, the bits it occupies within the register, and its type.
www.ti.com
Register Map
SLUUC36 – DECEMBER 2020
Submit Document Feedback
BQ79616-Q1 and BQ75614-Q1 GUI User's Guide 25
Copyright © 2020 Texas Instruments Incorporated
