FEED DOG HEIGHT
TO CHECK:
nd turn the hand wheel towards you to bring the feed dog to Lift the presser foot a
its highest position. The height of the feed dog from the needle plate should be

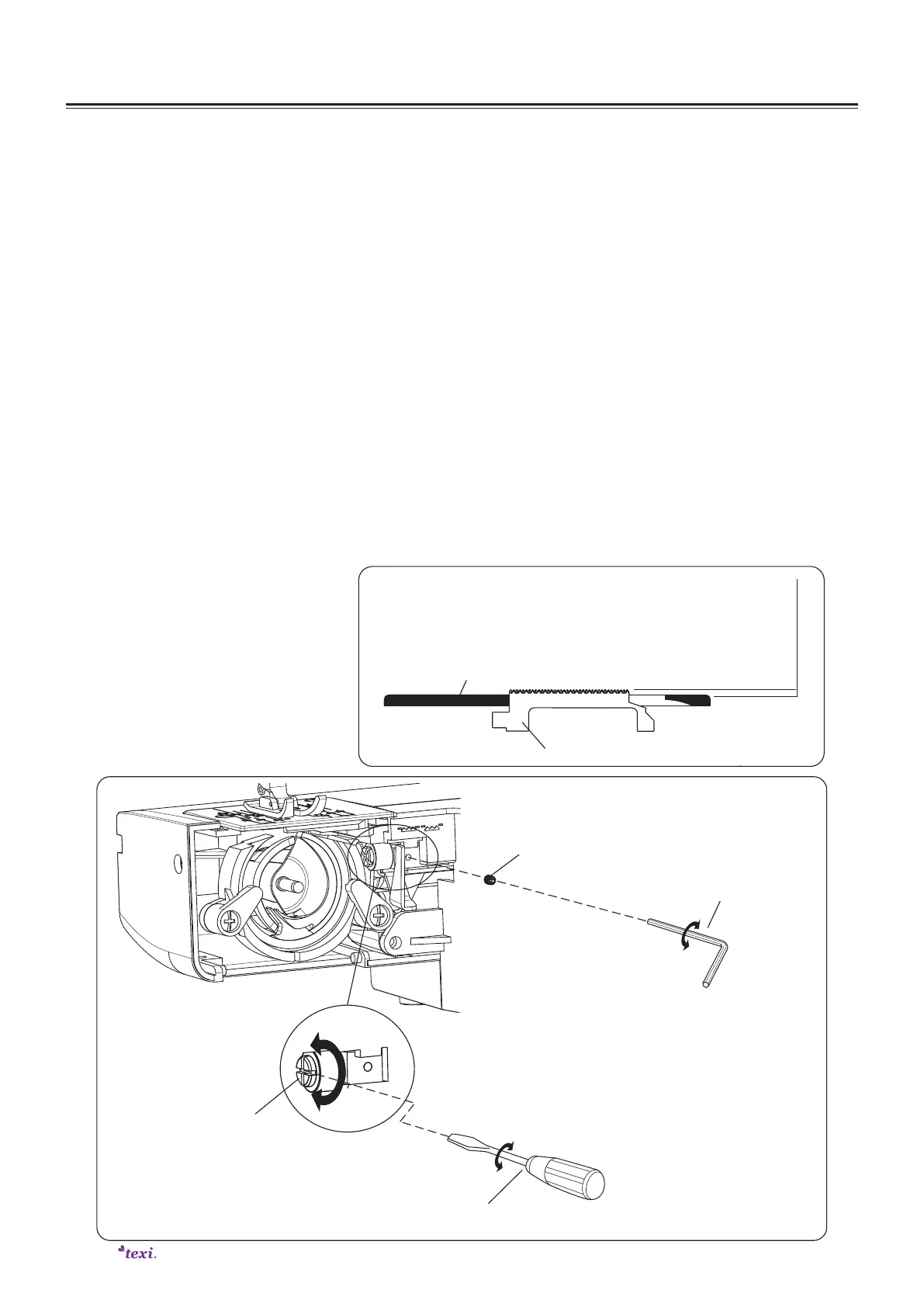

between 0.9~1.1mm. (Pic.1)
If it is not within the above limit, adjust as follows:
ADJUSTMENT PROCEDURE:
1. Raise the presser foot and turn the hand wheel towards you to bring the feed
dog to its highest position.
2. Remove the accessories box and open the shuttle cover.
3. Loosen the setscrew (A).
4. Turn the screw (B) to adjust the height of feed dog.
5. After finishing, tighten the setscrew (A).
6. Turn the h
andwheel toward you to recheck the height of the feed dog.
7. Attach the accessories box.
MECHANICAL ADJUSTMENT
Needle plate
Feed dogs
0.9～1.1mm
pic.1
Screw driver
Screw driver
pic.2
A
B
To Next Page
