MECHANICAL ADJUSTMENT
CLEARANCE BETWEEN NEEDLE AND HOOK
(ADJUSTMENT METHOD NO.1)
TO CHECK:
The clearance between the needle and shuttle race should be 0~0.1mm.
If it is not within the above limit, adjust as follows:
ADJUSTMENT PROCEDURE:
1. Remove the face cover (Refer to page 2), open the shuttle cover, then remove
the shuttle race cover and the bobbin case.
2. Set the pattern select dial at “B” ( ) .
3. Loosen setscrew “A” as pic. 2. the
4. Move the needle bar supporter (B) in the direction of the arrows to adjust the
clearance.
If clearance is too wide, move the needle bar su
pporter to direction (D).
If clearance is too narrow, move the needle bar supporter to direction (E).
5. Tighten the setscrew (A).
6. Recheck the clearance.
7. Attach the face cover.
NOTE: After this adjustment, check the clearance between the needle and
needle plate.
* If it is correct and same as pic.3, then the adjustment is finished.
* If not same as pic.3, adjust according to above procedure firstly and
adjust the clearance between needle and shuttle race by using adjustment
method No. 2 (see next page).

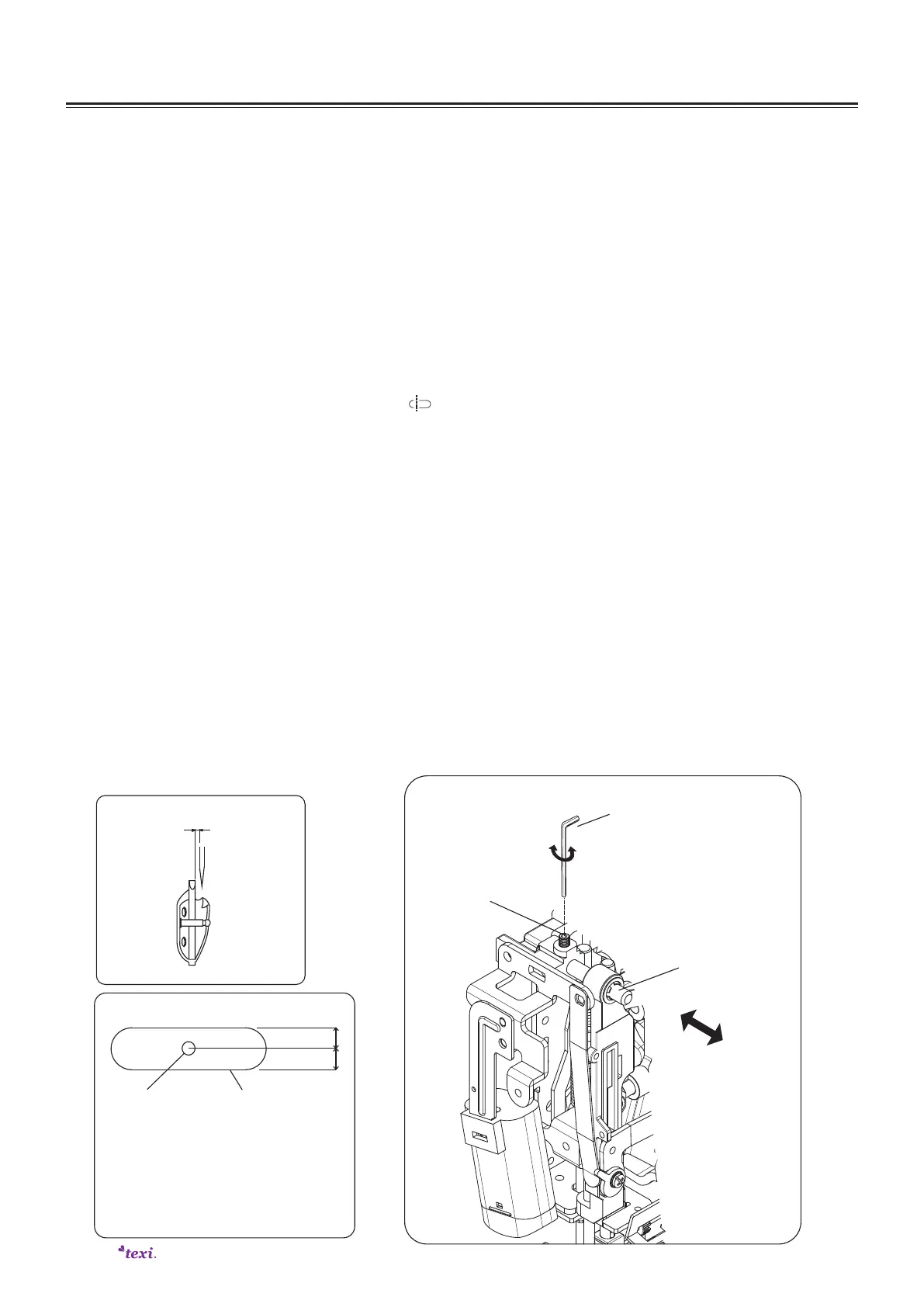

Needle
Needle hole
pic.3
c
c
0~0.1mm
pic.1
Both clearances of
"C" should be equal
Screw driver
pic.2
A
B
D
E
