MECHANICAL ADJUSTMENT
NEEDLE SWING
TO CHECK:
Adjust the needle swing according to the following procedure, if the needle bar
starts moving sideways while the needle is in the fabric when sewing the zigzag
pattern (with maximum zigzag width).
ADJUSTMENT PROCEDURE:
1. Turn the pattern knob to “C” ( ).
2. Remove all machine covers (See page 2-5).
3. Loosen two setscrews.
4. Adjust the needle swing by turning the handwheel while holding the worm so as
not to rotate it, until the needle swing starts at 3~6mm above the needle plate
after the needle has come out of the right side o
f the needle hole.
5. Tighten two setscrews.
6. Recheck the needle swing.
7. Attach all machine covers.
NOTE: After adjusting the needle swing,
check that the upper shaft worm and
gear rotate smoothly without any
backlash between them.

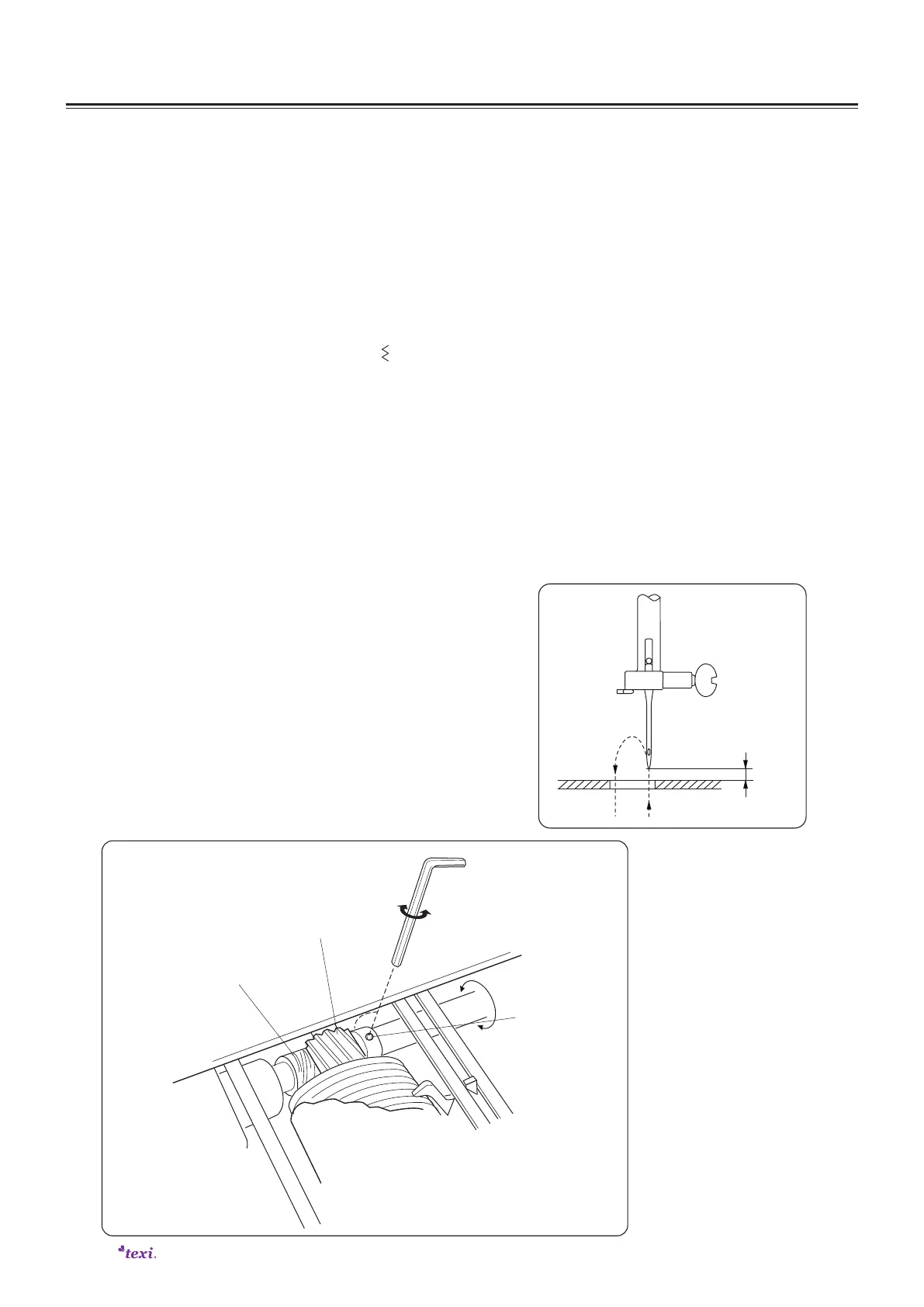

3~6mm
pic.1
pic.2
Upper shaft worm
Gear
Setscrew
(2 pcs.)
To Next Page
