Texi Fox 25
23
MECHANICAL ADJUSTMENT
MOTOR BELT TENSION
TO CHECK:
1. If the motor belt tension is too tight or too loose, it can cause a belt noise.
If the tension is too tight, it can cause the machine to run slowly and the motor
to overload.
If the tension is too loose, it can cause the belt teeth on the motor pulley to
jump
.
2.
The correct motor belt tension is when the deflection of motor belt is about
7mm ~ 9mm. (When pushing the motor belt by finger with a 300 gram load.)
If belt tension is not suitable, adjust as follows:
ADJUSTMENT PROCEDURE:
1. Remove the face cover, top cover, base plate and front cover (See page 2-4).
2. Loosen the screws as pic.2.
3. Move the motor up or down to adjust the deflection about 7mm ~ 9mm.
4. Tighten the screws.
5. Attach the covers.

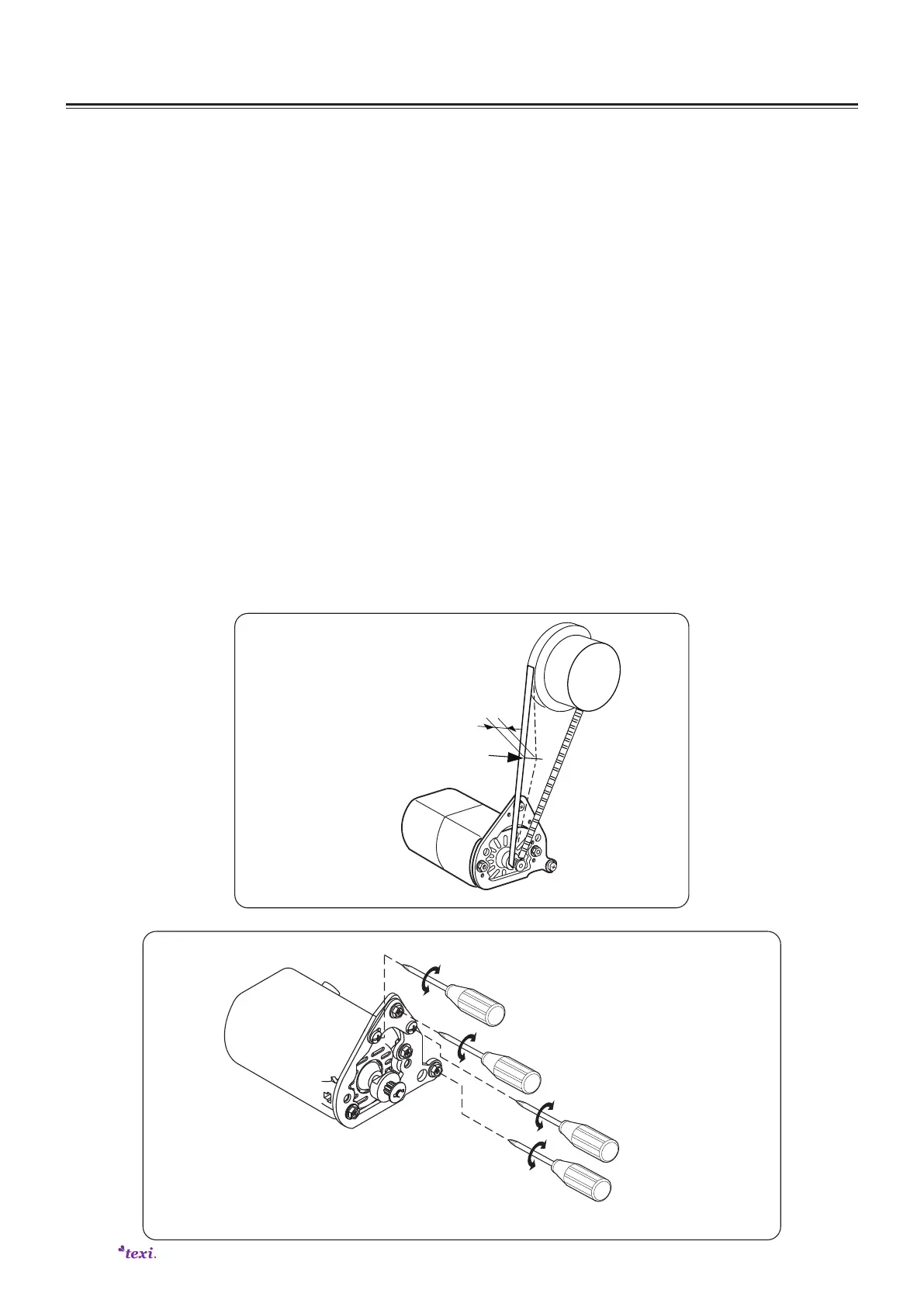

pic.1
300g load
Belt deflection 7~9 mm
pic.2
Screw driver
To Next Page
