Texi Fox 25
10

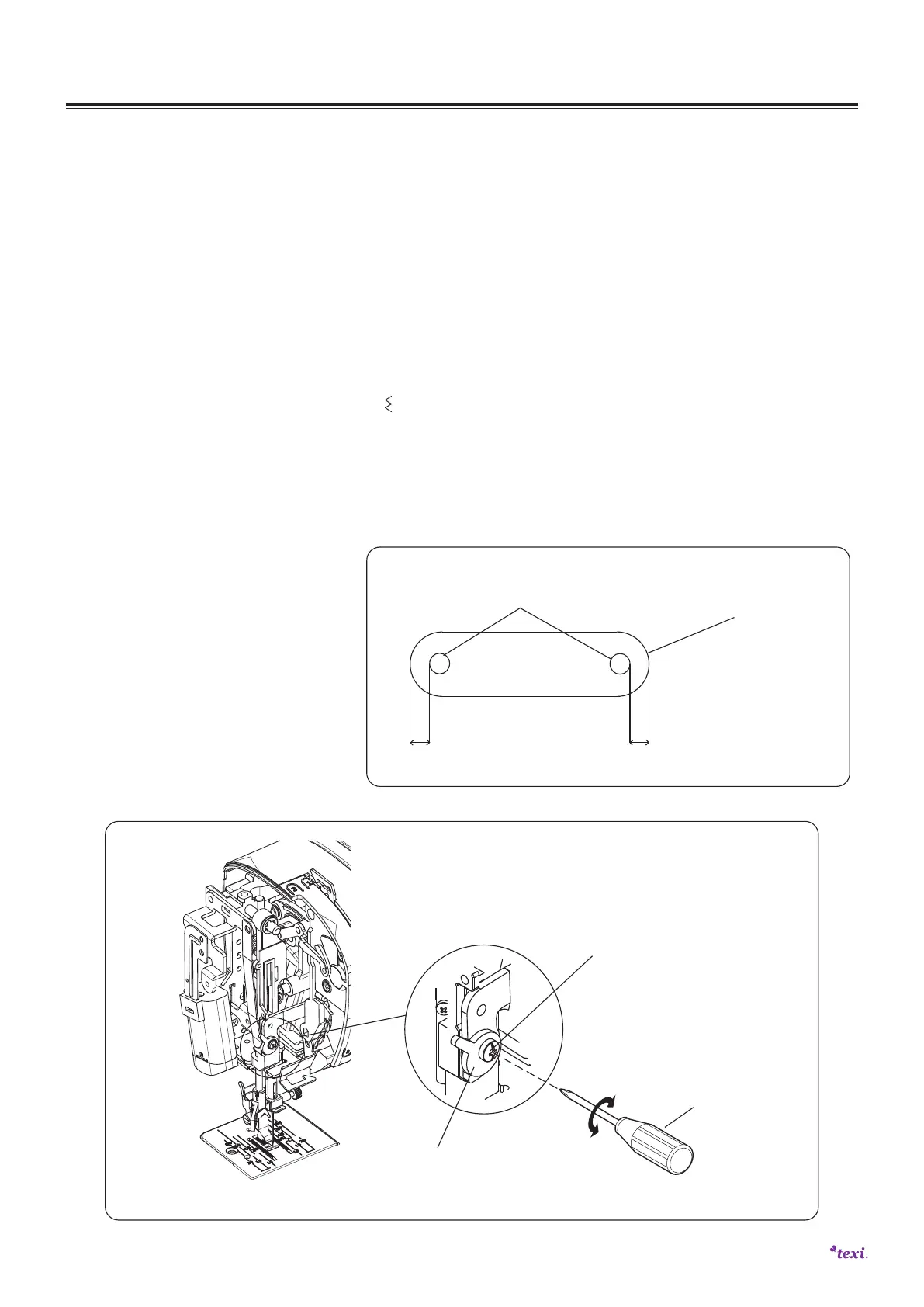

MECHANICAL ADJUSTMENT
NEEDLE DROP
TO CHECK:
When the needle swings in maximum zigzag width, the distance between both
ends of the needle hole on the needle plate and the needle drop positions should
be equal.
If it is not within the above limit, adjust as follows:
ADJUSTMENT PROCEDURE:
1. Remove the face cover (See page 2).
2. Turn the pattern knob to “C” (
).
3. Loosen the setscrew (A).
4. Turn the eccentric wheel to adjust the needle drop.
5. To check the distance between both ends of the needle hole on the needle plate
and the needle drop positions should be equal.
6. Tighten the setscrew (A).
7. Recheck the needle drop.
8. Attach the face cover.
Needle position
Needle hole
Both clearances should be equal
pic.1
a
a
Screw driver
pic.2
A
B
To Next Page
