Texi Fox 25
14

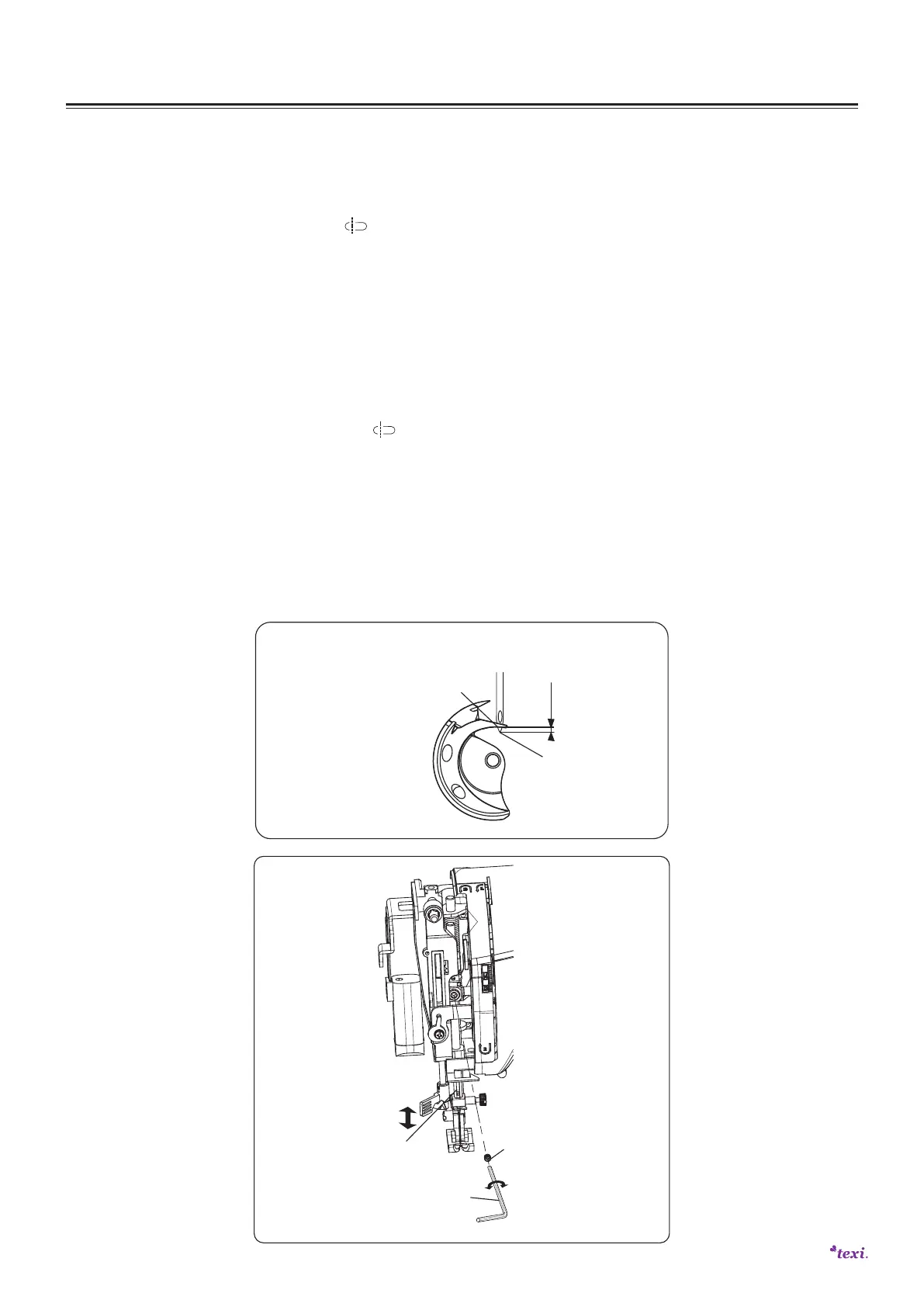

MECHANICAL ADJUSTMENT
NEEDLE HEIGHT
TO CHECK:
Turn the pattern dial to “B” ( ), then turn the handwheel until the needle is in its
left and lowest position, the distance between the tip of the needle (C) and the
inner hole wall of shuttle (B) should be in the range of 0~0.4mm.
If it is not in the range, adjust as follows:
ADJUSTMENT PROCEDURE:
1. Remove the face cover (See page2), open the shuttle cover, remove the shuttle
and the shuttle race cover.
2. Turn the pattern dial to “B” (
).
3. Turn the handwheel toward you until the needle is in its left and lowest position.
4. Loosen the setscrew (A)
, Adjust the height of needle by moving the needle bar
upward or downward without turning it.
5. Tighten the setscrew (A).
6. Recheck the needle height.
7. Attach the shuttle race cover and shuttle, close the shuttle cover and attach
face cover.
pic.1
0~0.4mm
B
C
pic.2
A
Screw driver
Needle bar
To Next Page
