Texi Fox 25
19
pic.2
A
Cam follower releasing arm
Pattern select cam
pic.1
0.2~0.4mm
Cam follower
Zigzag cam

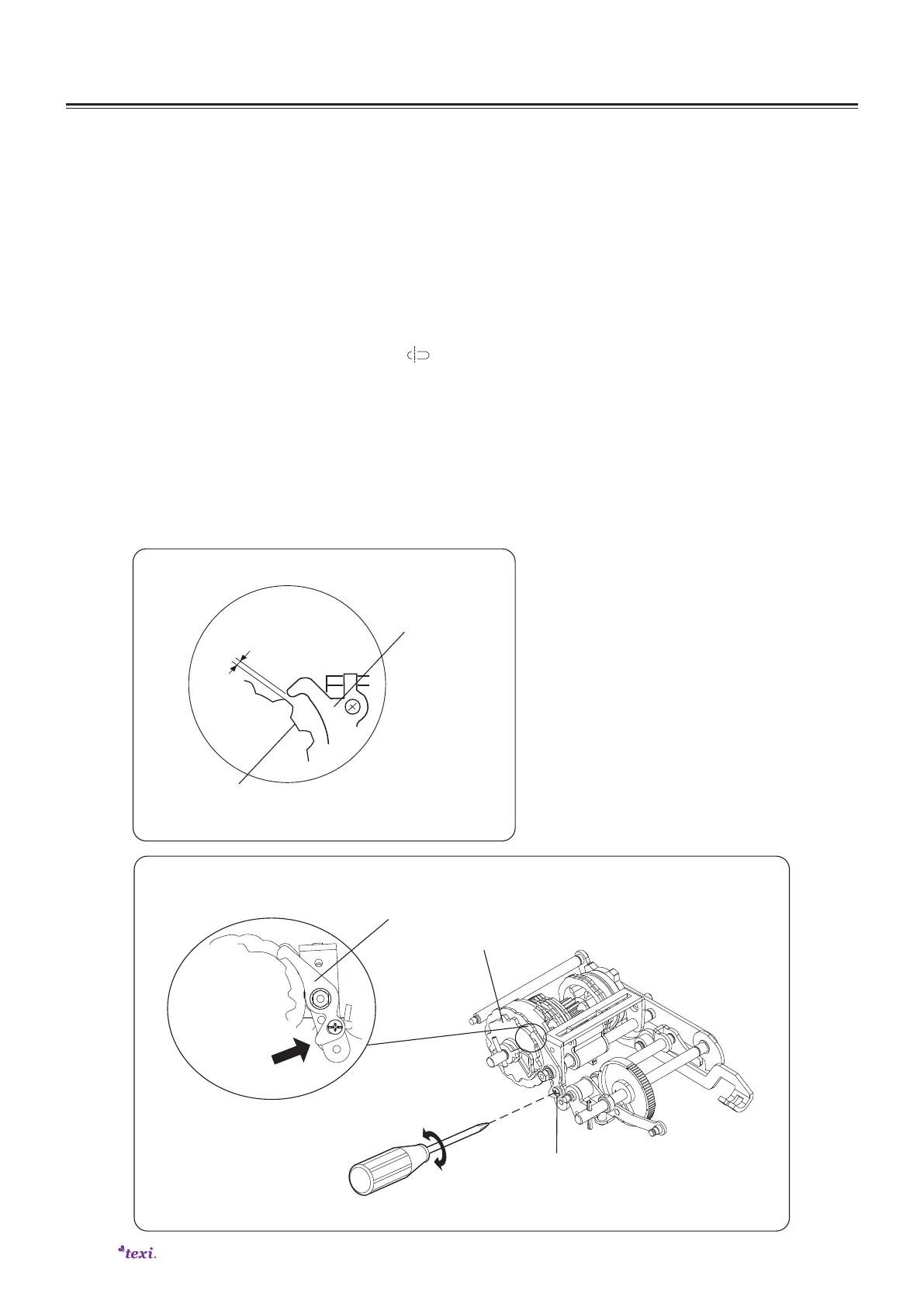

DISENGAGEMENT OF CAM FOLLOWER
TO CHECK:
Too narrow clearance between the cam follower and the top convex of zigzag cam
may often cause difficulty in turning of the pattern selector dial, or cannot turn to
correct pattern.
ADJUSTMENT PROCEDURE:
1. Set the pattern selector dial “B” (
).
2. Remove the face cover, top cover, base plate and front cover (See page 2-4).
3. Adjust the screw (A).
4. Push the cam follower to the zigzag cam (straight cam) (See pic.1), and also
put the cam follower releasing arm to the pattern select cam (See pic 2).
5. Tighten the screw (A).
6. Recheck the cam follower.
7
. Attach the covers.
MECHANICAL ADJUSTMENT
