3. FRONT AND REAR PANEL CONTROLS AND CONNECTORS
3.1. INTRODUCTION
The PU Power Supply series has a full set of controls, indicators and connectors that allow the user
to easily setup and operate the unit. Before starting to operate the unit, please read the following
sections for explanation of the functions of the controls and connectors terminals.
- Section 4.2: Front panel controls and indicators.
- Section 4.3: Rear panel controls and connectors.
3.2. FRONT PANEL CONTROLS AND INDICATORS
See Fig.4-1 to review the controls, indicators and meters located on the power supply front panel.

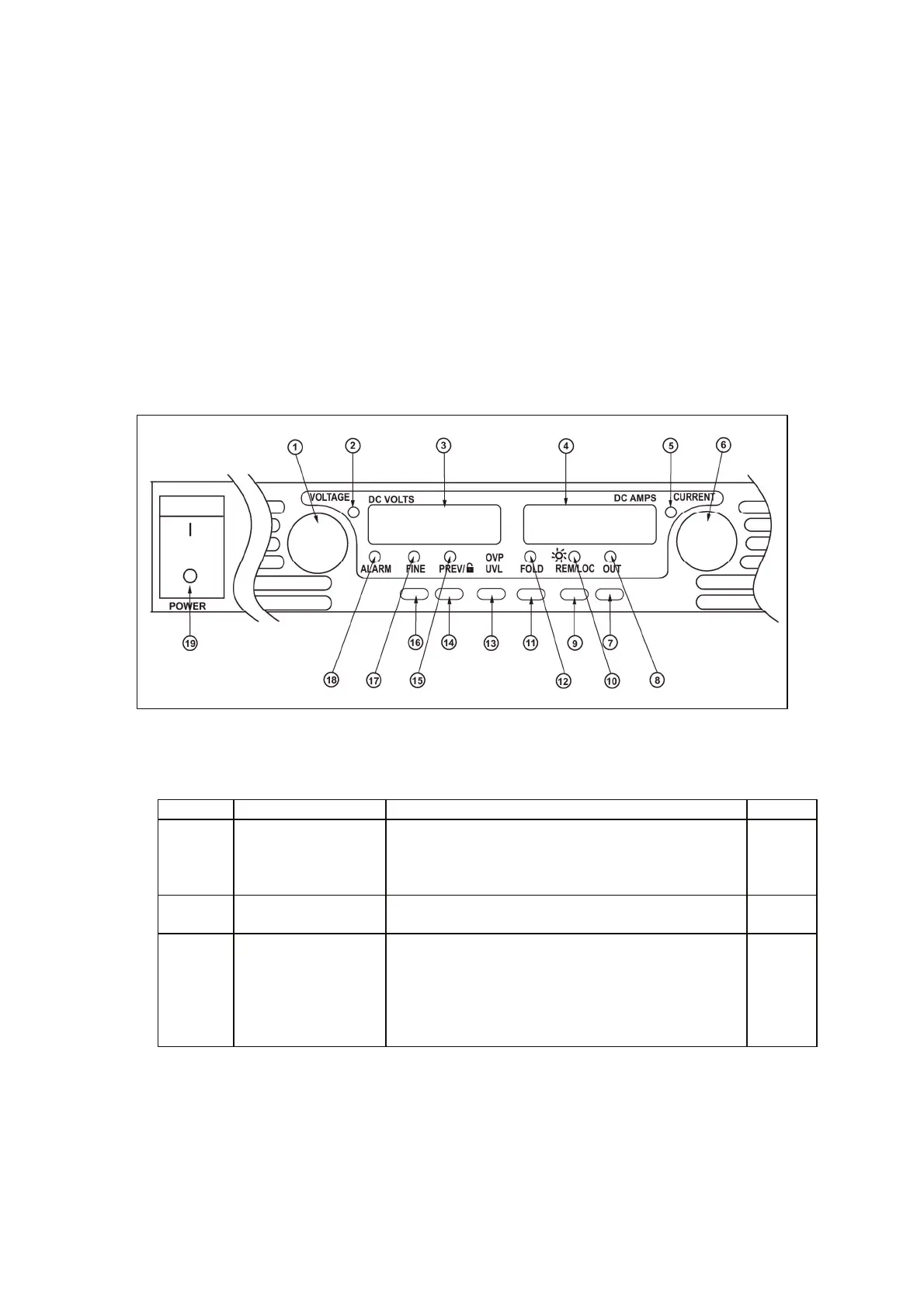

Fig.4-1: Front panel controls and indicators
Table 4-1: Front Panel controls and indicators
Number Control/Indicator Description Section
1 VOLTAGE control
High resolution rotary encoder for adjusting the
Output Voltage. Also adjusts the OVP/UVL levels
and selects the Address.
5.2.1
5.3.1
5.4.1
7.2.2
2 CV indicator
Green LED, lights for Constant-Voltage mode
operation.
3 VOLTAGE display
4 digits, 7-segment LED display, Normally displays
the output voltage. When the V/I CHK button is
pressed, the display indicates the programmed
setting of the output voltage. When the OVP/UVL
button is pressed, the Voltage display indicates the
OVP/UVL setting.
