7.8. STATUS, ERROR AND SRQ REGISTERS
7.8.1 General
This section describes the various status error and SRQ registers structure. The registers can be
read or set via the RS232/485 commands. When using the IEEE option, refer to the user manual for
PU Power Supply IEEE Programming interface.
Refer to Fig.7-7 for the Status and Error Registers Diagram.

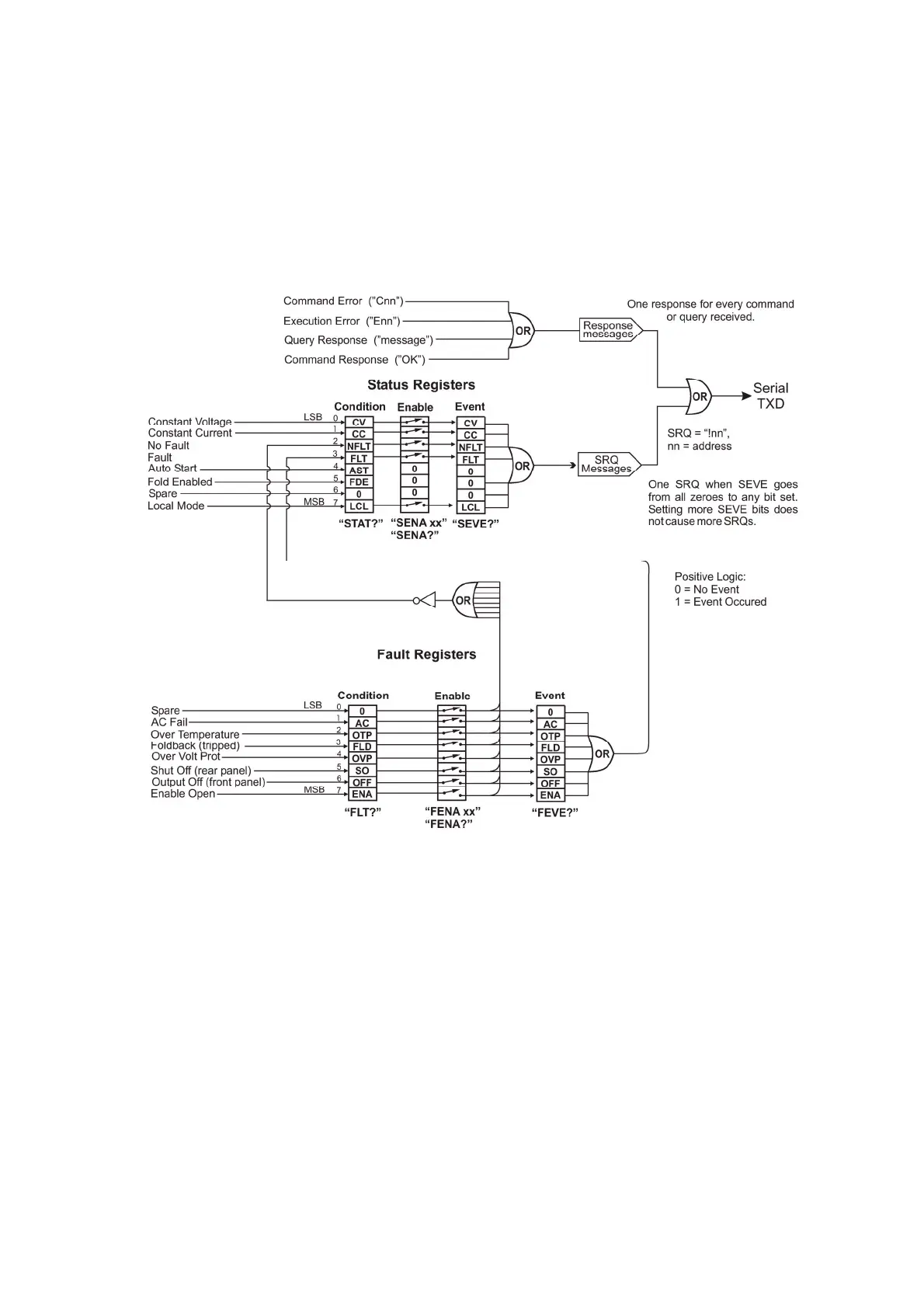

Fig.7-7: Status and Error Registers Diagram
7.8.2 Conditional registers
The fault Condition Register and the Status Condition Register are read only registers that the user
may read to see the condition of the supply. Refer to table 7-8 for description of the Fault
Condition Register bits and Table 7-9 for the Status Condition register bits.
