Ultra Tugger
®
10 Cable Puller and Pulling Packages
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
17
Cable Pulling Principles (cont’d)
Cable Pulling Forces (cont’d)
At the Connectors
The connectors will be subjected to the cable puller’s
maximum pulling force.
Several types of rope connectors—clevises, swivels,
and rope-to-swivel connectors—are available. Follow
the instructions provided with each to provide a good
connection.
Two types of wire connectors—wire grips and pulling
grips—are available. The wire grip uses a set screw
to clamp onto the conductors of the cable. The pulling
grip consists of a wire mesh basket that slides over
the cable and grips the insulation.
When selecting a pulling grip, it is extremely important
to select a grip of the correct (1) type, (2) size, and
(3)maximum rated capacity.
1. Select the correct type based on the descriptions
of each type in the Greenlee catalog.
2. Measure the circumference of the wire bundle.
(To do this accurately, fasten a tie strap around the
bundle. Cut off and discard the tail. Then cut the tie
strap and measure its length.). Use the table pro-
vided to nd the correct size.
3. Refer to the maximum rated capacities in the
Greenlee catalog.
Maximum
Pulling Force
44.5 kN
(10,000 lb)

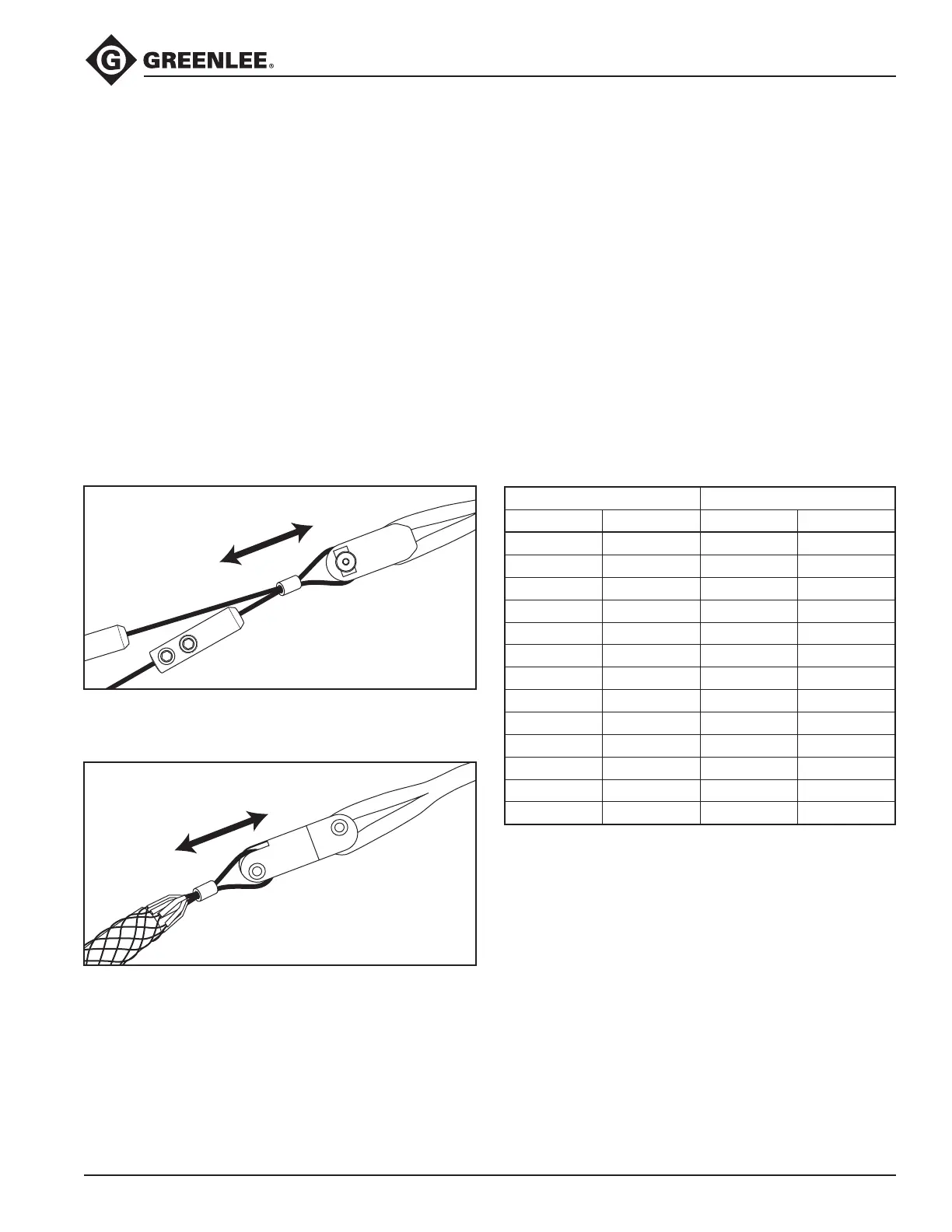

A Typical Grip Setup—Clevis and Wire Grip
Maximum
Pulling Force
44.5 kN
(10,000 lb)
A Typical Grip Setup—Swivel and Pulling Grip
Pulling Grip Size Table
Circumference Range Required Grip Diameter
inches mm inches mm
1.57–1.95 39.9–49.5 0.50–0.61 12.7–15.5
1.95–2.36 49.5–59.9 0.62–0.74 15.8–18.8
2.36–3.14 59.9–79.8 0.75–0.99 19.1–25.1
3.14–3.93 79.8–99.8 1.00–1.24 25.4–31.5
3.93–4.71 99.8–119.6 1.25–1.49 31.8–37.8
4.71–5.50 119.6–139.7 1.50–1.74 38.1–44.2
5.50–6.28 139.7–159.5 1.75–1.99 44.5–50.5
6.28–7.85 159.5–199.4 2.00–2.49 50.8–63.2
7.85–9.42 199.4–239.3 2.50–2.99 63.5–75.9
9.42–11.00 239.3–279.4 3.00–3.49 76.2–88.6
11.00–12.57 279.4–319.3 3.50–3.99 88.9–101.3
12.57–14.14 319.3–359.2 4.00–4.49 101.6–114.0
14.14–15.71 359.2–399.0 4.50–4.99 114.3–126.7
