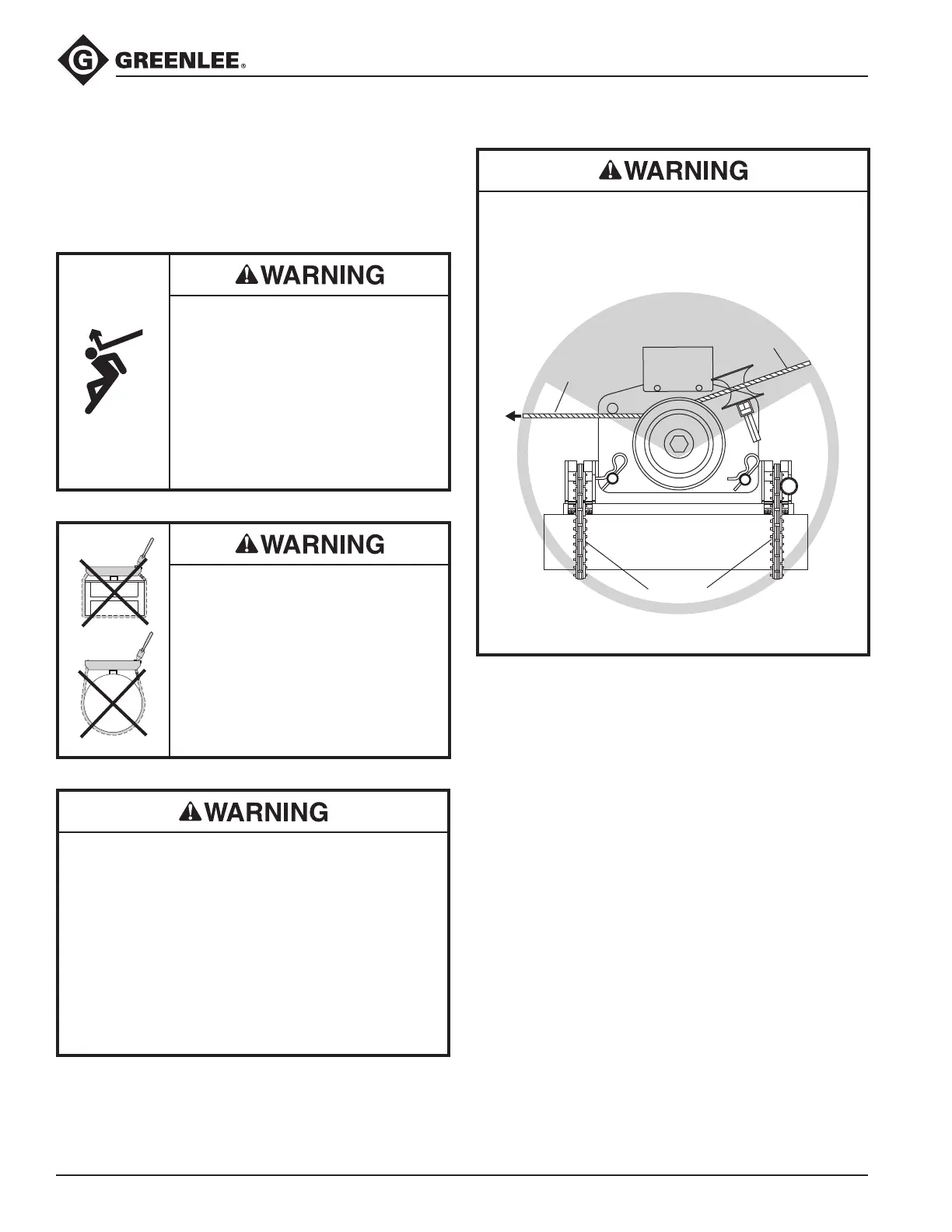

Setup—Chain Mount
Requires: Exposed metallic conduit with the following
characteristics:
• 63.5 mm to 254 mm (2-1/2" to 10") in diameter
• Capable of withstanding at least 44.5 kN (10,000 lb) of
force
Do not mount the chain mount to the
following:
• Steel conduit less than 63.5 mm
(2-1/2") in diameter
• PVC conduit of any size
These conduits will not support the
loads imposed by the puller.
Failure to observe this warning could
result in severe injury or death.
NO
NO
When setting up the pipe adapter, do
not use the vise chains on a struc-
tural support that is less than 51 mm
(2") or more than 254 mm (10") wide.
An oversized or undersized structural
support can allow the puller to slide
or break loose and strike nearby
personnel.
Failure to observe this warning could
result in severe injury or death.
Install the vise chains properly.
• Follow the vise chain tightening instructions care-
fully. Improperly tightened chains can allow the
puller to slide or break loose and strike nearby
personnel.
• Do not allow the vise chains to bind at the corners
when mounting the puller to a square or rectangu-
lar support. The vise chain must be uniformly tight
at all points.
Failure to observe this warning could result in severe
injury or death.
Do not pull between the 10 o’clock and 2 o’clock
directions. Pulling between 10 o’clock and 2 o’clock
could damage the mounting conduit.
12
O’CLOCK
1
2
3
11
10
9
6
O’CLOCK
Pulling
Rope
Pull
Load
Tailing
Rope
Vise Chains
Support
